Microsoft SQL Server mapping task example

You can create a mapping task to read data from a Microsoft SQL Server source and write data to the Microsoft SQL Server target.
Perform the following task to create a mapping task:
    1In Data Integration, click New > Mapping > Create .
    2To configure the source properties and the advanced source properties, select Source from the selection panel under the Design section.

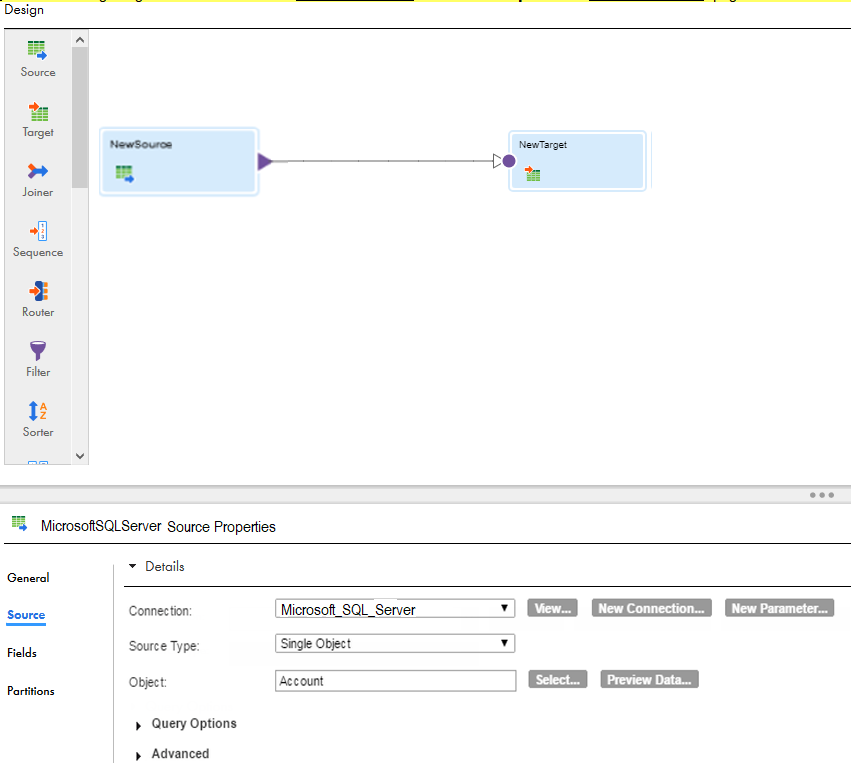

    The following image shows details of the Source Properties page:
    3To configure the target properties and the advanced target properties, select Target from the selection panel under the Design section.

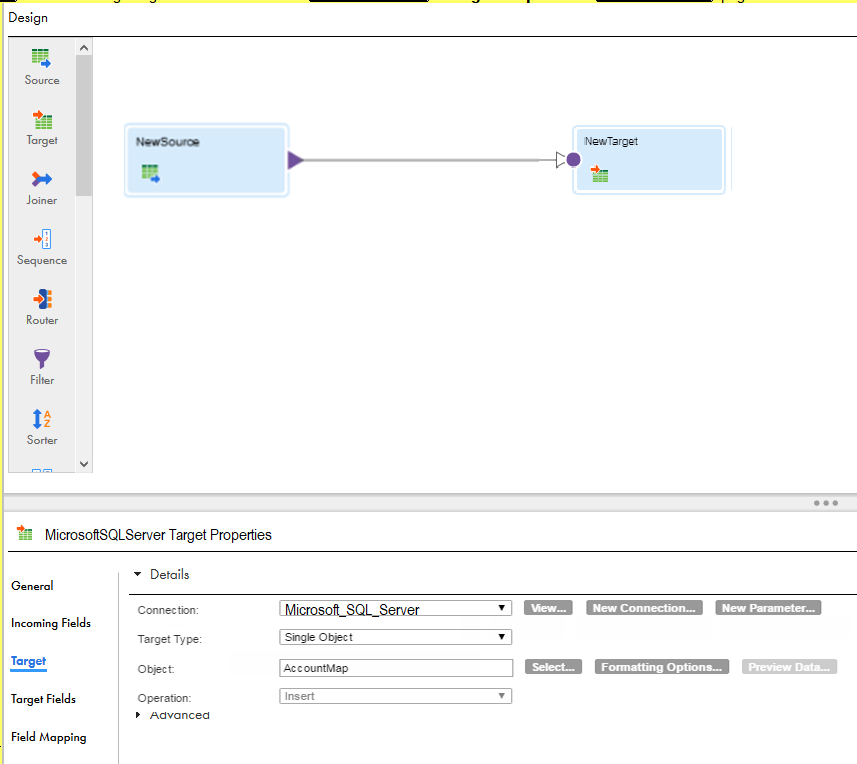

    The following image shows details of the Target Properties page:
    4Map the source and target.
    5Click Save > Run.
    In Monitor, you can monitor the status of the logs after you run the task.
