CallidusCloud Commissions Connector > CallidusCloud Commissions Connections > CallidusCloud Commissions connection properties


CallidusCloud Commissions connection properties

When you create a CallidusCloud Commissions connection, you must configure the connection properties.
The following table describes the CallidusCloud Commissions connection properties:
Property
Description
Connection Name
Name of the connection.
Each connection name must be unique within the organization. Connection names can contain alphanumeric characters, spaces, and the following special characters: _ . + -,
Maximum length is 255 characters.
Description
Description of the connection. Maximum length is 4000 characters.
Use Secret Vault
Stores sensitive credentials for this connection in the secrets manager that is configured for your organization.
This property appears only if secrets manager is set up for your organization.
When you enable the secret vault in the connection, you can select which credentials that the Secure Agent retrieves from the secrets manager. If you don't enable this option, the credentials are stored in the repository or on a local Secure Agent, depending on how your organization is configured.
Note: If you’re using this connection to apply data access policies through pushdown or proxy services, you cannot use the Secret Vault configuration option.
For information about how to configure and use a secrets manager, see Secrets manager configuration.
Runtime Environment
Name of the runtime environment where you want to run the tasks.
UserName
User name for the CallidusCloud portal login.
Password
Password of the CallidusCloud portal login.
BaseURL
The base URL to connect to the CallidusCloud application.
Use the following sample to specify the base URL:
https://<domainName>/TrueComp-SaaS/services/rest/
PageSize
The page size for the read operation.
Default value is 10.

Guidelines for a CallidusCloud Commissions connection

You can set the values for the session timeout properties as per your requirement through the JVM options for the Secure Agent.
You can configure the following properties:
You must set the values for the properties higher than the default values, else the default values are considered.
The default values are:
-Dconnection.sessionTimeout=50
-Dconnection.attempts=3
-Dconnection.waitTimeToReattempt=5
Perform the following steps to configure the JVM options:
  1. 1In Administrator, select the Secure Agent listed on the Runtime Environments tab.
  2. 2Click Edit.
  3. 3In the System Configuration Details section, select Data Integration Server as the service and DTM as the type.

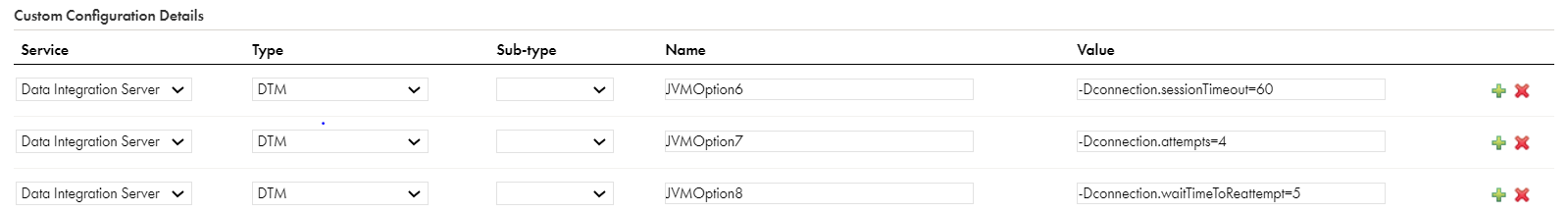

  4. 4Specify the values for the JVM options. The image shows the JVM options for the session timeout properties.
  5. 5Click Save.
