SurveyMonkey source operations

Create a Source transformation in the Mapping Task wizard to read data from SurveyMonkey.
To configure the Source operation, perform the following steps:
  1. 1In the Source transformation, select a SurveyMonkey connection.
  2. 2On the Source tab, select an operation from the list of operations.
  3. 3Configure the request message for the operation. Copy the request message from the sample template, and edit the JSON based on your use case.

Configuring a request using Request Message Editor

When you create a Source transformation, configure a JSON request message for the operation that you want to perform in SurveyMonkey.
Use the Request Message Editor to create a request message. The request message uses the JSON format and contains request parameters exposed by SurveyMonkey API for a specific operation. You can use the default request message for the operation, and then customize it to specify the data that you want to include.
To customize your request, copy the request message from the sample template to the Request Message Editor pane where you can edit the JSON message and add the attributes for the request. Remove unnecessary and empty tags from the request message to avoid operation failure. You can hide the optional elements to see only the required elements for the request message.
For example, to search surveys by title and sort the results with the getSurveys operation, you can configure the parameters as shown in the following request message:
{
"title": "Customer Satisfaction",
"sort_by": "date_modified",
"sort_order": "DESC",
"per_page": 50
}

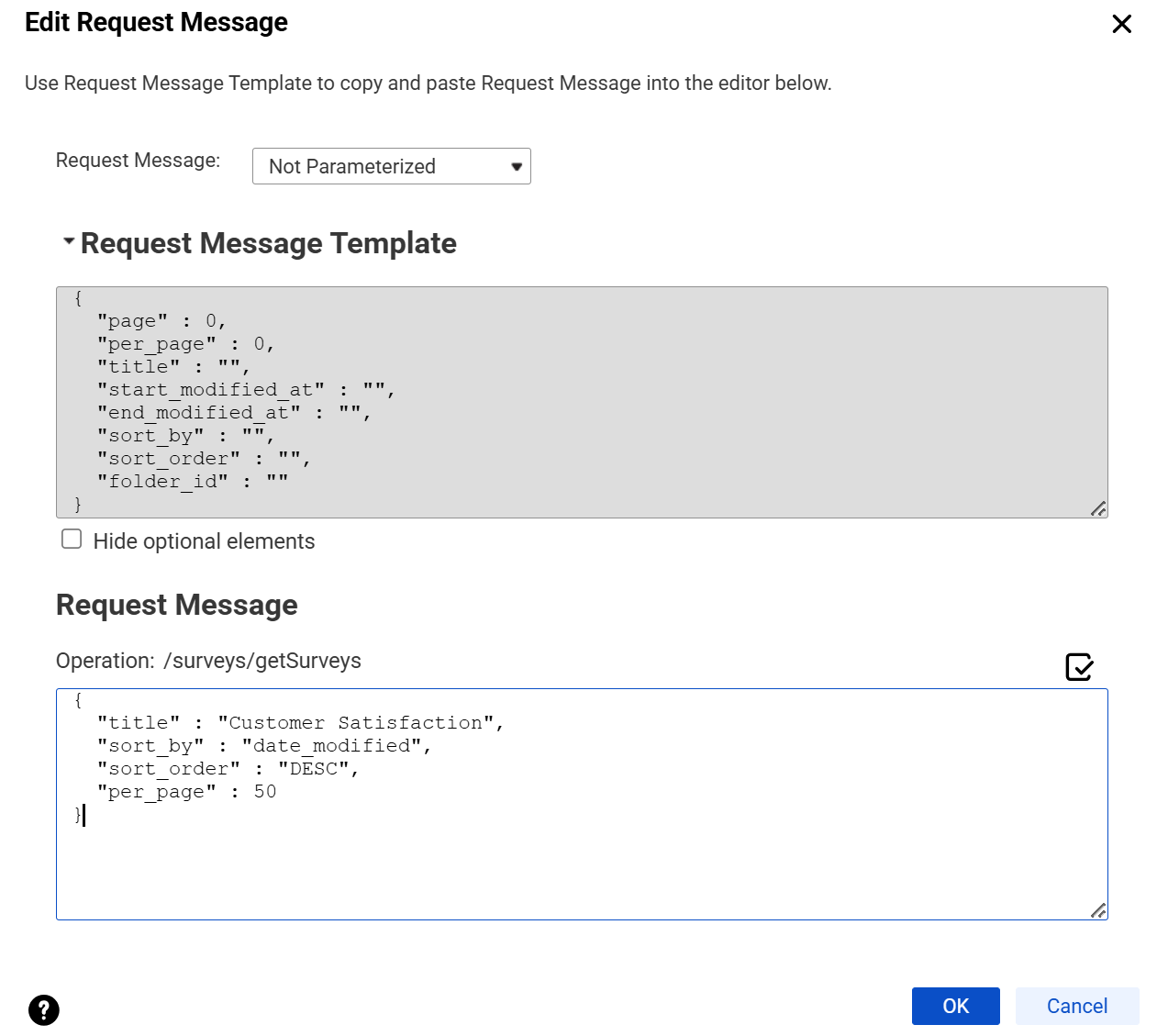

The following image shows the request message template and a request message configured to search and sort surveys in the Mapping Designer:
In the Request Message Editor, the request message template at the top lists the empty parameters for the operation. Below the template, the Request Message section shows a request message with an example configuration.
To retrieve surveys that were modified within a date range, specify the start_modified_at and end_modified_at parameters for the getSurveys operation. Use the ISO 8601 format for the date-time values. For example, to retrieve surveys that were modified in September 2026, specify the dates, as shown in the following sample:
{
"start_modified_at": "2026-09-01T00:00:00",
"end_modified_at": "2026-09-30T23:59:59"
}
Note:
The start date is exclusive. The operation returns only surveys that were modified after the start_modified_at value.
The request message format in SurveyMonkey Connector follows the service request definition in SurveyMonkey. Use well-formed JSON in the request message, and include the parameters that you need for your use case.

Field mapping in a Source transformation

The response message format follows the service response definition in SurveyMonkey. You can map response fields from a hierarchical to a relational structure of output groups and fields.
After you configure an operation for a source and specify the request message, create the relational format from the hierarchical data to include groups and fields that you want in the output.
Select the elements in the response structure that you want to include as output fields. The Secure Agent converts the JSON response in the hierarchical structure to relational groups at run time.

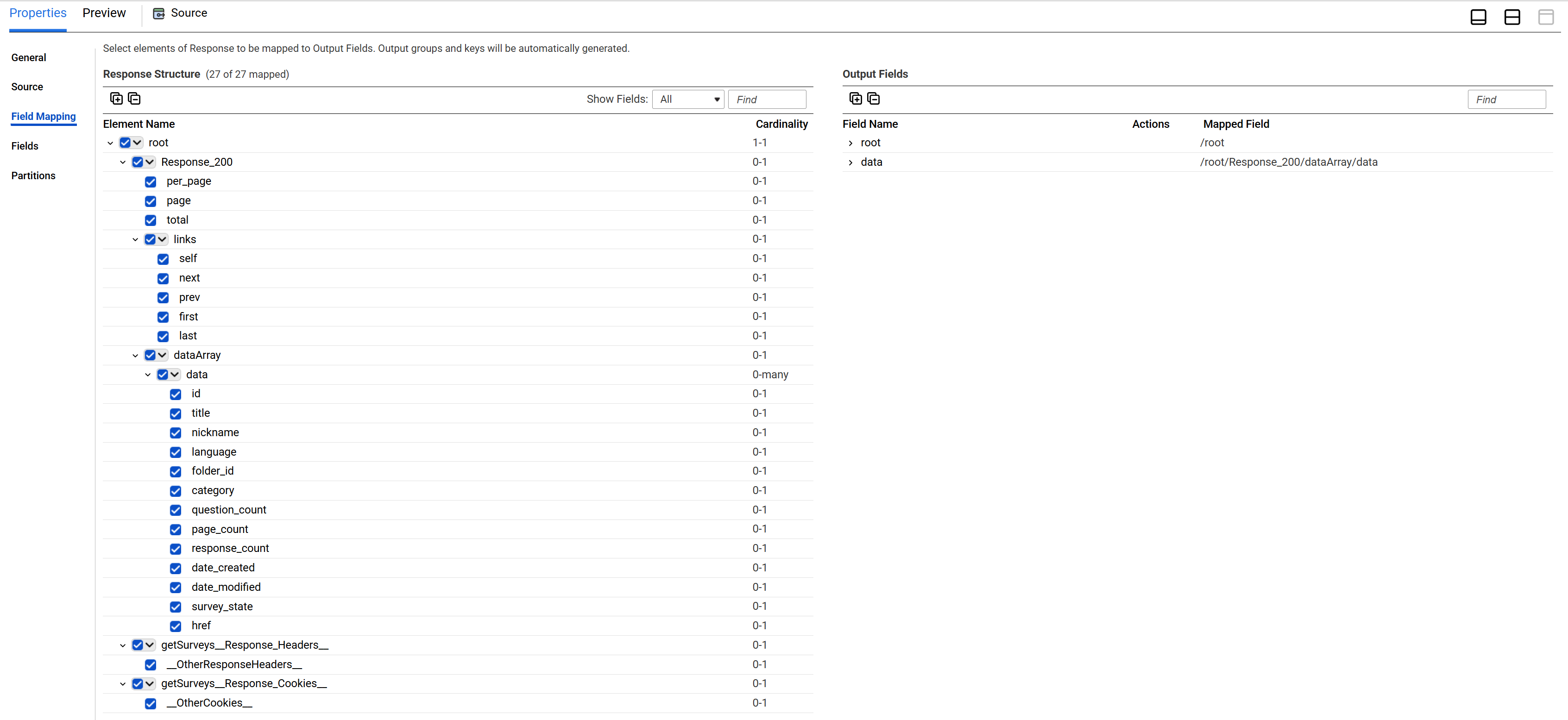

The following image shows an example hierarchical response structure generated for the getSurveys operation, and the corresponding relational output fields for the response:
In the field mapping for the getSurveys operation, the hierarchical response elements on the left map to the relational output fields on the right.
You can edit the data type, precision, and scale for the groups and fields after mapping the fields.
For more information about field mapping, see Transformations.
