The verifier has configurable options on two tabs. Use the Definition tab options to provide a name, description, and location for the asset. Use the Configuration tab options to define a template for the addresses that the mapping will read and write at run time.

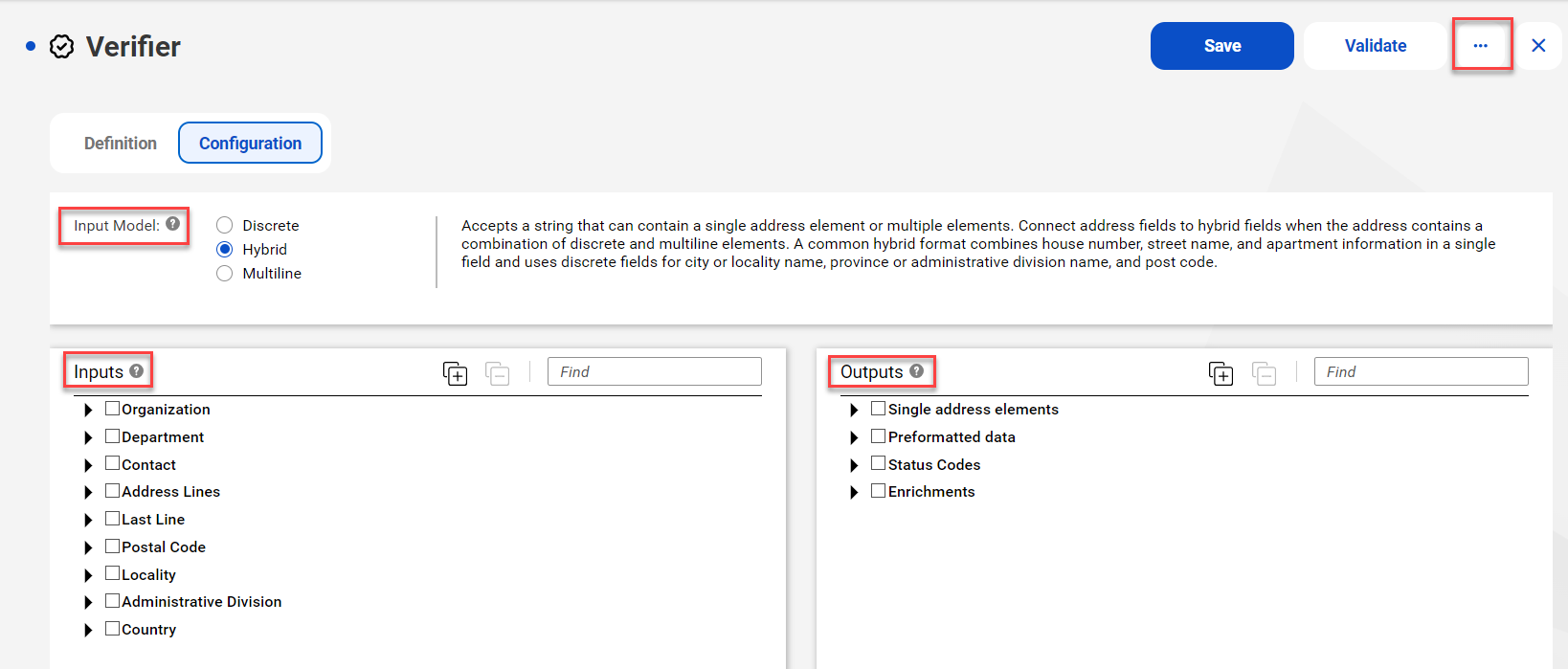

The following image shows the Configuration tab:
The Configuration tab has the following options:
1Input Model. Indicates the type of address template that you will use to define the input address structure. Each input model has a corresponding set of address elements that represent the common ways in which a data source might store address data values.
Note: The input model selection does not affect the output fields that you can choose from.
2Inputs. Indicates the available input fields on the model that you select.
3Outputs. Indicates the output fields that you can use to define the structure of the output address records.
4Actions. Provides options that you can use to update the address verification properties.
