Monitor > Process Metrics > Receive Queue Metrics


Receive Queue Metrics

The Receive Queue page lists the incoming messages that are stored before they are processed.

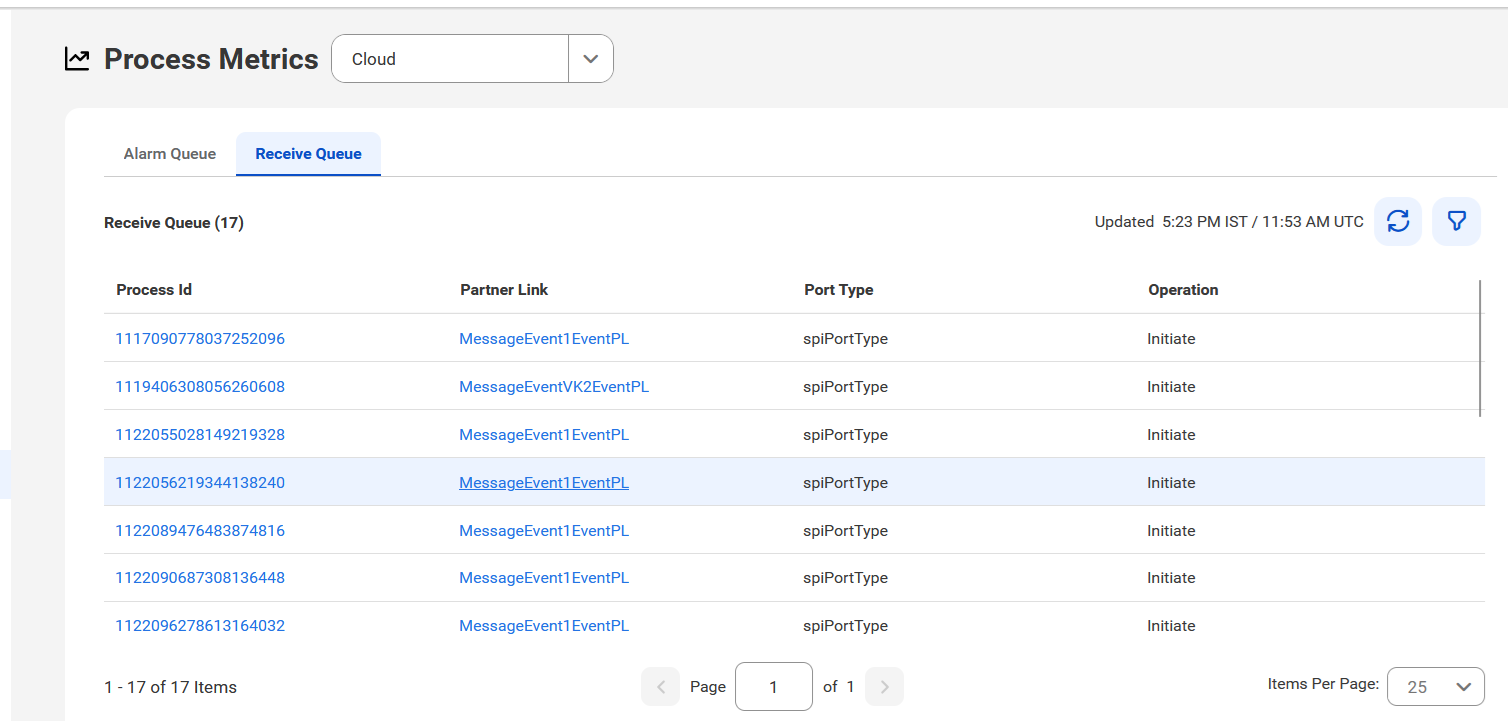

The following image shows a sample Receive Queue page:
The image shows a sample Receive Queue page.
Select one or more options from the filter option list to view a selection of active receives
If you click on:

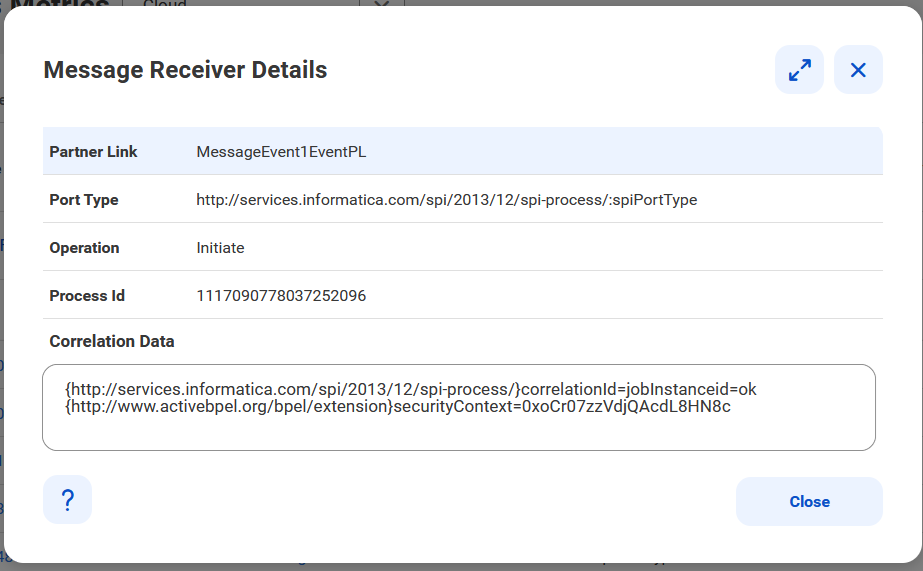

The following image shows a sample Message Receiver Details page:
The image shows a sample Message Receiver Details page.
Item
Meaning
Partner Link
The partner link for the item in the receive queue. A partner link is a communication exchange between two partners. In the most basic form, the process is a partner link of an external service, receiving a request from it. A partner link defines the role that the process plays (if any) and the role that the partner service plays (if any) in the particular exchange
Port Type
The port type, which is a port type in WSDL is a set of related operations such as receive, reply, and invoke include operations.
Operation
The operation that just executed.
Process Id
Process Instance ID. You find this ID on the Active Processes page.
Correlation Data
The key information used to link or associate related data across different processes or messages.
