Using an NVIDIA NIM connection in a process

After you create an NVIDIA NIM connection, you can use it in a Service step in a process.
  1. 1Add a Service step to the process.
  2. 2Click the Service tab.
  3. 3From the Service Type list, select Connection.
  4. 4From the Connection list, browse and select the NVIDIA NIM connection that you created.
  5. 5From the Action list, select the action that you want to perform. For example, select the Invoke Basic Model action to invoke the basic models for chat completions, function calling, text reranking, and structured output actions as shown in the following image:

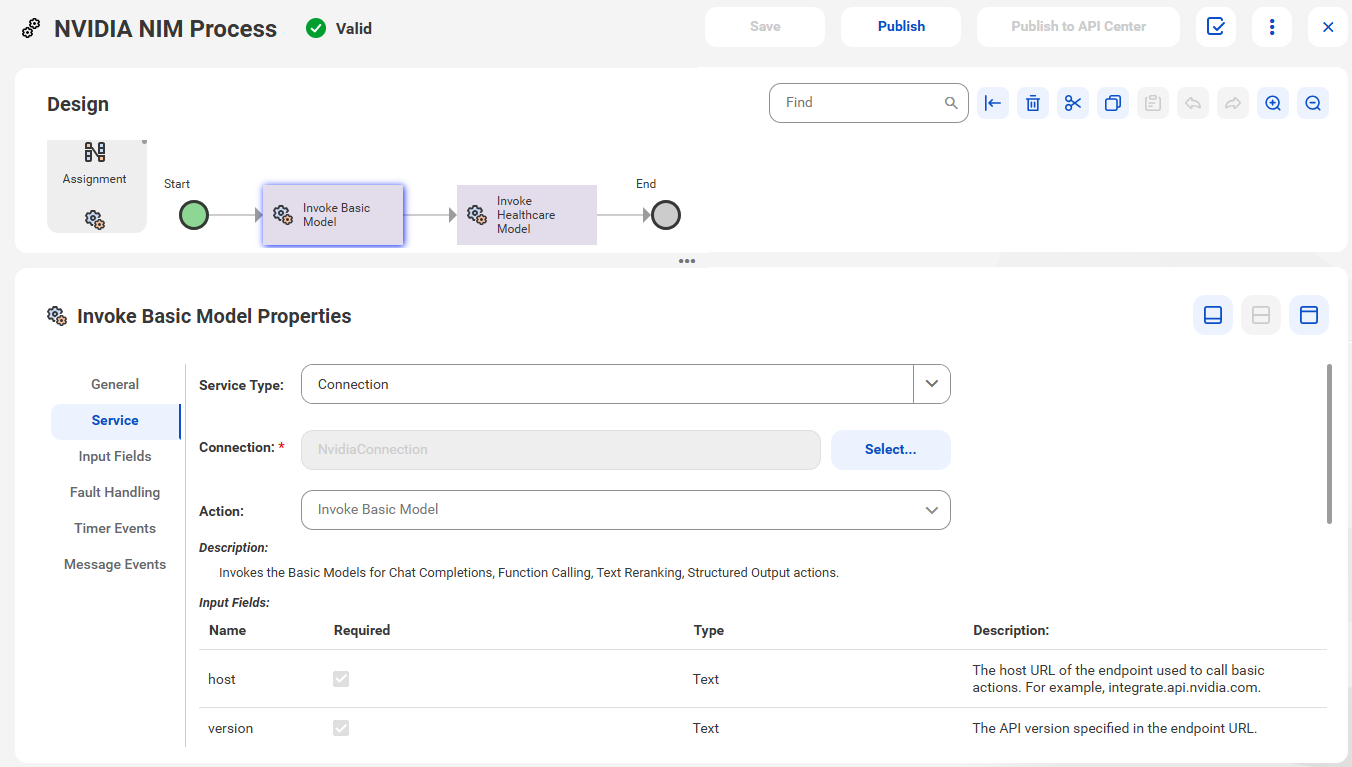

    6. The image shows the Invoke Basic Model action that is used in a process to invoke the basic models for chat completions, function calling, text reranking, and structured output actions.
    In this case, Application Integration populates the host, version, segment1, …, segment5, and payload objects under the input fields and the response and statusCode objects under the output fields.
  6. 6Configure further steps as needed.
  7. 7Validate, save, and publish the process.
