Data Filters

You can use data filters to fetch specific data of a particular object. The synchronization task processes the data based on the filter field assigned to the object.
Note: The Cvent Connector supports $LastRunTime parameter and all the filter fields supported by Cvent.
Perform the following steps to filter data:

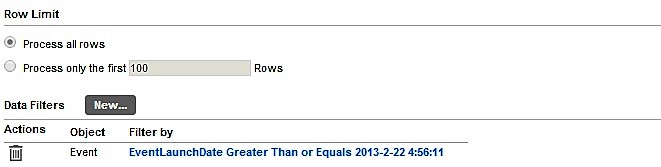

    1Select Data Filters tab in a synchronization task.
    The Data Filters tab appears.
    2Click New.

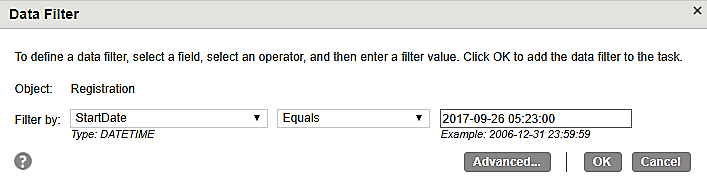

    The Data Filter dialog box appears.

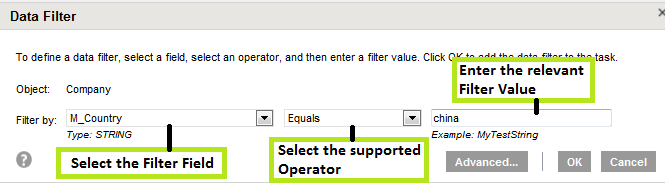

    3Specify the following details:
    Field Type
    Description
    Object
    Select Object for which you want to assign filter fields.
    Filter By
    Select the Filter Field.
    Operator
    Select the operator.
    Filter Value
    Enter the Filter value.
    4Click OK.
Note: You can view the records modified in the past 10 hours in the Data Preview tab. To view records for all the objects, you must use the LastModifieddate field. To view records for Events, you must use the EventLauchDate field.

Filter Fields

The following table the fields that you can use to filter Cvent objects:
Object
Filter Field
Data Type
Supported Operators
Values Allowed
Budget
Budget_CategoryDetail,
Budget_DefaultTaxDetail
Id
String
F2*
Any string value
EventCode
String
F2*
Any string value
EventTitle
String
F2*
Any string value
LastModifiedDate
DateTime
F1*
Any Date Time value
SearchType
String
F2*
Any string value
BudgetItem
BudgetItem_AllocationCategoryDetail,
BudgetItem_AssociatedRegistrants,
BudgetItem_BudjetPaymentDetail,
BudgetItem_CostDetail, BudgetItem_SavingsDetail,
BudgetItem_CategoryDetail, BudgetItem_DefaultTaxDetail
Id
String
F2*
Any string value
ItemName
String
F2*
Any string value
ItemCode
String
F2*
Any string value
EventId
String
F2*
Any string value
EventCode
String
F2*
Any string value
RFPId
String
F2*
Any string value
LastModifiedDate
DateTime
F1*
Any Date Time value
SearchType
String
F2*
Any string value
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
VendorCode
String
F2*
Any string value
Contact
Contact_ContactGroupDetail,
Contact_DistributionListDetail
Id
String
F2*
Any string value
SourceId
String
F2*
Any string value
FirstName
String
F2*
Any string value
LastName
String
F2*
Any string value
EmailAddress
String
F2*
Any string value
CCEmailAddress
String
F2*
Any string value
Company
String
F2*
Any string value
ContactTypeCode
String
F2*
Any string value
Active
Int
F1*
Any integer value
ExcludedFromEmail
Int
F1*
Any integer value
LastOptOutDate
DateTime
F1*
Any Date Time value
LastModifiedDate
DateTime
F1*
Any Date Time value
CreatedDate
DateTime
F1*
Any Date Time value
HomeStateCode
String
F2*
Any string value
MembershipCode
String
F2*
Any string value
WorkStateCode
String
F2*
Any string value
SearchType
String
F2*
Any string value
IsObfuscated
Int
F1*
Any integer value
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
ContactSnapshot
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
ConversionRate
CurrencyCode
String
F2*
Any string value
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
LastModifiedDate
DateTime
F1*
Any Date Time value
Event
Event_ProductDetail, Event_DocumentDetail,
Event_TargetListDetail, Event_WeblinkDetail
Id
String
F2*
Any string value
EventCode
String
F2*
Any string value
EventTitle
String
F2*
Any Date Time value
EventStartDate
DateTime
F1*
Any Date Time value
EventEndDate
DateTime
F1*
Any Date Time value
EventLaunchDate
DateTime
F1*
Any Date Time value
EventStatus
String
F2*
Any string value
PlanningStatus
String
F2*
Any string value
Hidden
Int
F1*
Any integer value
Location
String
F2*
Any string value
StateCode
String
F2*
Any string value
LastModifiedDate
DateTime
F1*
Any Date Time value
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
SearchType
String
F2*
Any string value
EventDetails
EventDetails_EventRoleDetail,
EventDetails_FAQDetail, EventDetails_Fees,
EventDetails_PlanningStatusHistory,
EventDetails_ProcessFromDetail,
EventDetails_StaffDetail
Id
String
F2*
Any string value
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
EventQuestion
EventQuestion_AnswerDetail,
EventQuestion_RowDetail
QuestionCode
String
F2*
Any string value
SurveyType
String
F2*
Any string value
QuestionType
String
F2*
Any string value
EventId
String
F2*
Any string value
EventCode
String
F2*
Any string value
ProductId
String
F2*
Any string value
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
LastModifiedDate
DateTime
F1*
Any Date Time value
Invitee
Invitee_InternalInfoDetail,
Invitee_RegretSurveyDetail, Invitee_WeblinkDetail
ContactId
String
F2*
Any string value
SourceId
String
F2*
Any Date Time value
FirstName
String
F2*
Any Date Time value
Last name
String
F2*
Any string value
Id
String
F2*
Any string value
Company
String
F2*
Any string value
LastModifiedDate
DateTime
F1*
Any Date Time value
ConfirmationNumber
String
F2*
Any string value
VoucherCode
String
F2*
Any string value
IsObfuscated
Int
F1*
Any integer value
SearchType
String
F2*
Any string value
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
EmailAddress
String
F2*
Any string value
Participant
String
F2*
Any string value
EventId
String
F2*
Any string value
Status
String
F2*
Any string value
SearchType
String
F2*
Any string value
MeetingRequest
MeetingRequest_DocumentDetail,
MeetingRequest_EventRequestInfo,
MeetingRequest_EventSurveyDetail,
MeetingRequest_RFPRequestInfo,
RequestName
String
F2*
Any string value
RequestStatus
String
F2*
Any string value
RequestCode
String
F2*
Any string value
FormId
String
F2*
Any string value
Archived
String
F2*
Any string value
SearchType
String
F2*
Any string value
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
Registration
Registration_GuestDetail, Registration_OrderDetail,
Registration_PaymentDetail,
Registration_EventSurveyDetail
Id
String
F2*
Any string value
Status
String
F2*
Any string value
ContactId
String
F2*
Any string value
InviteeId
String
F2*
Any string value
SourceId
String
F2*
Any string value
FirstName
String
F2*
Any string value
LastName
String
F2*
Any string value
EmailAddress
String
F2*
Any string value
EventId
String
F2*
Any string value
GroupId
String
F2*
Any string value
GroupLeader
Int
F1*
Any integer value
ReferenceId
String
F2*
Any string value
SearchType
String
F2*
Any string value
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
RegistrationDate
DateTime
F1*
Any Date Time value
CancelledDate
DateTime
F1*
Any Date Time value
LastModifiedDate
DateTime
F1*
Any Date Time value
ConfirmationNumber
String
F2*
Any string value
RegistrationType
String
F2*
Any string value
SearchType
String
F2*
Any string value
Respondent
Respondent_WeblinkDetail
Id
String
F2*
Any string value
ContactId
String
F2*
Any string value
SurveyId
String
F2*
Any string value
Status
String
F2*
Any string value
SearchType
String
F2*
Any integer value
Response
Response_SurveyDetail
Id
String
F2*
Any string value
ContactId
String
F2*
Any string value
SurveyId
String
F2*
Any string value
Status
String
F2*
Any string value
CompletionDate
DateTime
F1*
Any Date Time value
LastModifiedDate
DateTime
F1*
Any Date Time value
SearchType
String
F2*
Any string value
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
Survey
Survey_WeblinkDetail
Survey_AssociatedEvents
Survey_TargetListDetail
Id
String
F2*
Any string value
SurveyCode
String
F2*
Any string value
SurveyTitle
String
F2*
Any string value
EventLaunchDate
DateTime
F1*
Any Date Time value
EventCloseDate
DateTime
F1*
Any Date Time value
SurveyStatus
DateTime
F1*
Any Date Time value
SearchType
String
F2*
Any string value
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
SurveyQuestion
SurveyQuestion_AnswerDetail,
SurveyQuestion_RowDetail
Id
String
F2*
Any string value
QuestionCode
String
F2*
Any string value
QuestionType
String
F2*
Any string value
SurveyID
String
F2*
Any string value
SurveyCode
String
F2*
Any string value
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
SurveyTitle
String
F2*
Any string value
Transaction
Transaction_DistributionDetail
Id
String
F2*
Any string value
ContactId
String
F2*
Any string value
InviteeId
String
F2*
Any string value
EventId
String
F2*
Any string value
Success
Int
F1*
Any integer value
TransactionType
String
F2*
Any string value
TransactionNumber
String
F2*
Any string value
PaymentType
String
F2*
Any string value
NameOnCard
String
F2*
Any string value
ReferenceNumber
String
F2*
Any string value
BatchNumber
String
F2*
Any string value
Amount
String
F2*
Any string value
TransactionDate
DateTime
F1*
Any Date Time value
LastModifiedDate
DateTime
F1*
Any Date Time value
SearchType
String
F2*
Any string value
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
Travel
Travel_AirActual, Travel_AirRequest,
Travel_CarRequest, Travel_HotelRequest
ContactId
String
F2*
Any string value
EventId
String
F2*
Any string value
RegistrationType
String
F2*
Any string value
SearchType
String
F2*
Any string value
StartDate
DateTime
F1*
Any Date Time value
EndDate
DateTime
F1*
Any Date Time value
F1* - Supports Equals, Not Equals, Less than, Less than or Equals, Greater, Is Null, Is Not Null, and Greater than or Equals operators.
F2* - Supports Equals, Not Equals, Less than, Less than or Equals, Greater, Is Null, Is Not Null, Starts With, Ends With, Contains and Greater than or Equals operators.

Advanced Filters

To run search queries containing complex filter expressions, use advanced data filter. Cvent advanced filter supports AND conditional operator and some logical operators.
Note: You can determine whether a field is filterable after running the synchronization task.
    1Click Advanced in Data Filter dialog box.
    The Advanced Data Filter dialog box appears.
    2Enter the Filter Expression.
    3Click OK.

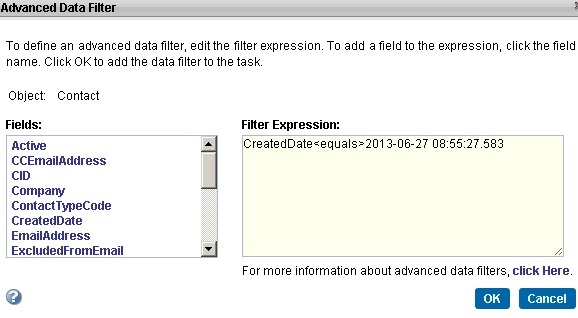

    The following image shows the Advanced Data Filter page:
    The following is the syntax format for Filter Expression:
    Field1<Operator1>Value1;Field2<Operator2>Value2
    The following are the significance of the terms:
You can fetch the data using advanced filter search by giving the value in yyyy-MM-dd HH:mm:ss.SSS (Year-Month-day Hour:Minutes:Seconds:milliseconds) format.
You can use StartDate and EndDate filter fields to configure advanced filters.
Note: The search in advanced filter functions similar to the search functionality supported by Cvent application.

Delta Records

You can use the Cvent Connector to fetch data records that has changed over a time period for a Cvent object.
The synchronization task fetches the data that has changed for the period that you specify in the StartDate and EndDate filter fields.
When retrieving delta records, the Secure Agent performs the following tasks:

Retrieving Delta Records

You can use data filters to fetch data records that fetch data records that has changed over a time period for a Cvent object. The synchronization task fetches the data that has changed for the period that you specify in the StartDate and EndDate filter fields.
Perform the following steps to fetch delta records:
    1Select Data Filters tab in a synchronization task.
    The Data Filters tab appears.
    2Click New.
    The Data Filter dialog box appears.
    3Specify the following details to create a data filter using StartDate filter field:
    Field Type
    Description
    Object
    Select the object on which you want to apply data filter.
    Filter By
    Select the StartDate filter field.
    Operator
    Select the Equals operator.
    Filter Value
    Enter the filter value in GMT time zone.
    4Click OK.
    5Repeat the steps 1 to 2 and specify the following details to create a data filter using EndDate filter field:
    Field Type
    Description
    Object
    Select the object on which you want to apply data filter.
    Filter By
    Select the EndDate filter field.
    Operator
    Select the Equals operator.
    Filter Value
    Enter the filter value in GMT time zone.
    6Click OK.
    The following image shows the data filters applied on the Registration object:
When you run the synchronization task, the Secure Agent fetches all the records that were inserted or updated between the StartDate and EndDate that you specified in the Data Filters tab.

Rules and Guidelines for Data Filters

Consider the following rules and guidelines when you apply data filters on a Cvent object:
