Oracle HCM Cloud V1 Connector > Oracle HCM Cloud V1 Connections > Extract definition


Extract definition

To read data from an Oracle HCM Cloud source, create HCM extract definitions for the data that you want to extract from the Oracle HCM Cloud application.
  1. 1When you create HCM extract definitions, configure the following properties on the Oracle HCM Cloud application:
    1. aIn the Extract Deliver Options page under the Manage Extract Definitions tab, set the value of the Output Type field as Data and Delivery Type field as WebCenter Content.
    2. bSpecify the values of the Integration Name and Encryption Mode fields.

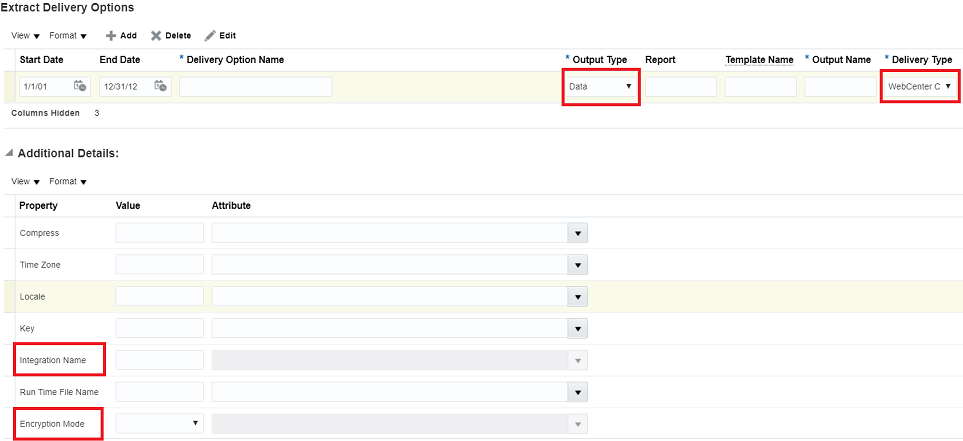

      3. The following image shows the Extract Deliver Options page where you can set the value of the Output Type, Delivery Type, Integration Name, and Encryption Mode fields.
    You can set up the Output Type, Delivery Type, Integration Name, and Encryption Mode fields under the Extract Deliver Options page in the Oracle HCM Cloud application.
  2. 2Submit the HCM extract definitions to the Oracle WebCenter Content Server from the Oracle HCM Cloud application. You can also use the Submit Extract connection property to submit the HCM extract definitions to the Oracle WebCenter Content Server.
  3. 3Generate the XML schema in the XSD file format for all the HCM extract definitions and store the XSD files on the machine where the Secure Agent is installed.
    4. Store all the XSD files in the following directory that you specify in the Schema Directory connection property: Schema Directory\Reader
    Oracle HCM Cloud V1 Connector supports the XSD files with a DATA_DS single root element.
    Note: Use a third-party tool to generate the XML schema from the output XML data. Provide the XSD files that are compatible with the output XML data and name in the <TemplateName>.xsd format.
