FAQ

How to download Zuora WSDL?

Find the Zuora knowledge base link to download the WSDL from Zuora site:

http://knowledgecenter.zuora.com/C_Zuora_User_Guides/A_Billing/A_Z-Billing/C_Billing_Settings/M_Download_the_Zuora_WSDL

How to get the WSDL Url?

You can find the Endpoint Url in the WSDL document. Try to search for <soap:address> location.

How to create metadata jar out of Zuora WSDL?

Follow the steps to create a Stub Zuora-metadata.jar for the Zuora Custom WSDL:

Note: You need to have the environment set-up to begin with stub creation.

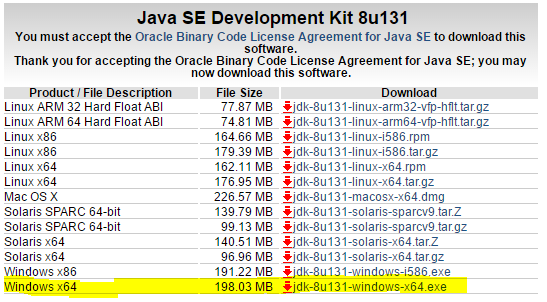

Download jdk1.8.3_131 from the following link: http://download.oracle.com/otn-pub/java/jdk/8u131-b11/d54c1d3a095b4ff2b6607d096fa80163/jdk-8u131-windows-x64.exe

Open a command prompt and set wspath variable as the following:

set wspath="C:\Program Files\Java\jdk1.8.3_131\bin"
set JAVA_HOME=”C:\Program Files\Java\jdk1.8.3_131”

Create a zuora.xjb binding file using the following contents:

<jaxb:bindings version="2.1" xmlns:jaxb="http://java.sun.com/xml/ns/jaxb" xmlns:xjc="http://java.sun.com/xml/ns/jaxb/xjc" xmlns:xs="http://www.w3.org/2001/XMLSchema">
<jaxb:globalBindings generateElementProperty="false"/>
</jaxb:bindings>

Run the following command from the command prompt to generate stub class files in a directory structure com/Zuora/api:

%wspath%\wsimport.exe -b <binding file path>\zuora.xjb -p com.zuora.api -XadditionalHeaders -verbose <Zuora modified wsdl>\zuora.wsdl

Run the following command to generate jar out of the class files:

jar cvf Zuora-metadata.jar -C <directory path of generated ‘com’ folder > com

After you run the command, a Zuora-metadata.jar file will be created.

Stop the Secure Agent.

If you want to modify the Zuora-metadata.jar file, perform the following steps:

1. 1Copy the Zuora-metadata.jar file from <Secure Agent installation directory>\downloads\<latest connector package>\package\plugins\<connector name>\ to <Secure Agent installation directory>\apps\Data_Integration_Server\ext\deploy_to_main\bin\rdtm-extra\<pluginID>\
Note: If the deploy_to_main\bin\rdtm-extra\<pluginID>\ directory does not already exist, create the directory.
Note: The folder name is case sensitive on Linux.
2. 2Restart the Secure Agent.
