Performing data catalog discovery

Perform data catalog discovery on the Data Catalog page.

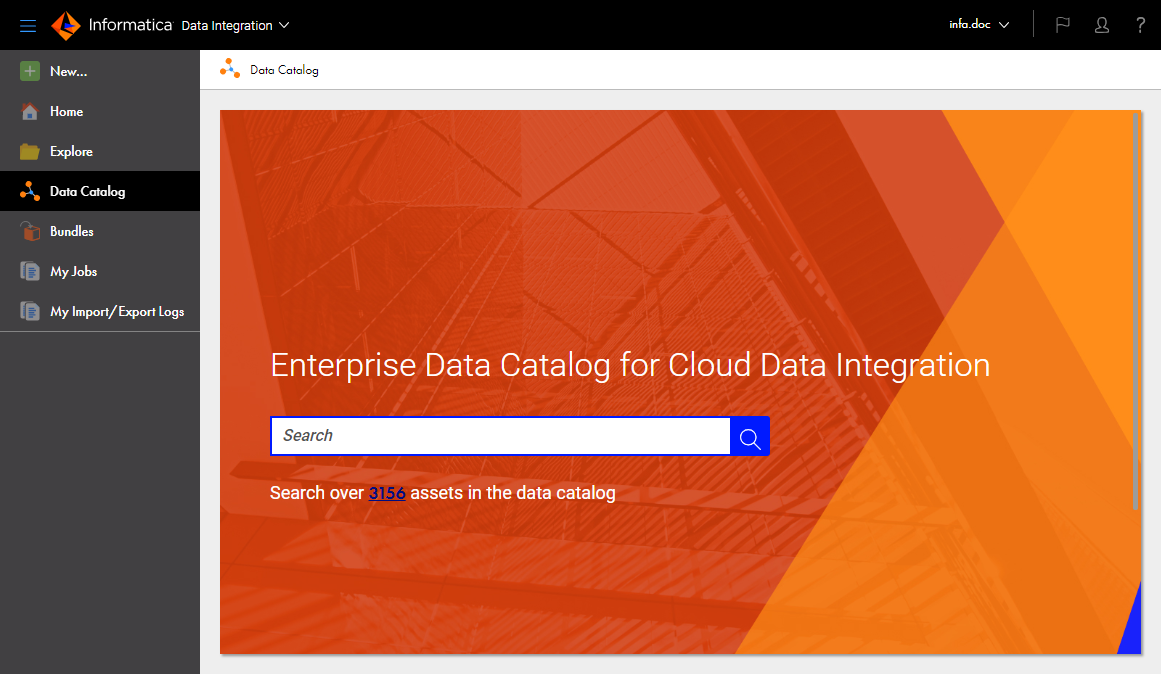

The following image shows the Data Catalog page:

When the organization administrator has configured Enterprise Data Catalog integration properties, the Data Catalog page contains a search field that you can use to search for Enterprise Data Catalog objects.

The page displays a Search field and the total number of table, view, and flat file assets in the catalog.

In the Search field, enter a phrase that might occur in the object name, description, or other metadata such as the data domain or associated business glossary term. When you select an object from the search results, Data Integration asks you where you want to use the object. Data Integration also imports the connection if it does not exist in your organization.

You can use the object in the following places:

•In a new mapping. If you select this option, Data Integration creates a new mapping and adds the object to the mapping inventory. You can then add the object to the mapping as a source, target, or lookup object.
•In an open mapping. If you select this option, Data Integration asks you to select the mapping and adds the object to the mapping inventory. You can then add the object to the mapping as a source, target, or lookup object.
•In a new synchronization task. If you select this option, Data Integration creates a new synchronization task and adds the object as the source object.
•In a new file ingestion and replication task. If you select this option, Data Integration creates a new file ingestion and replication task and adds the object as the source object.

Mapping inventory

If you select an object from the search results and add it to a mapping, Data Integration adds the object to the mapping inventory. Select an object from the inventory, and add it to the mapping as a source, target, or lookup object.

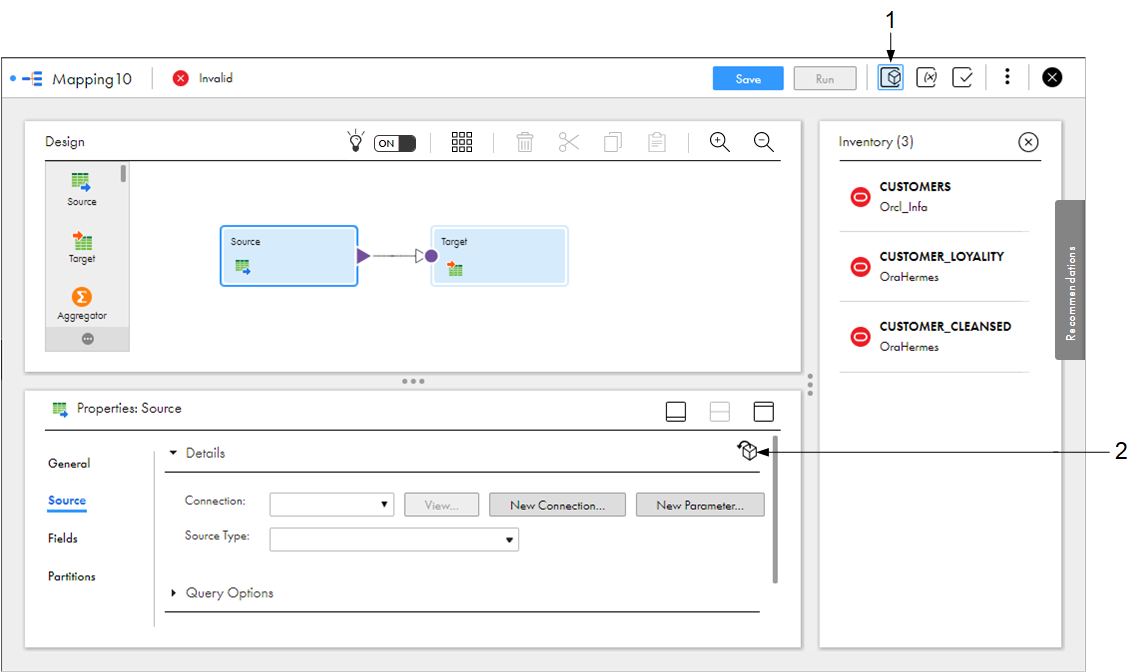

The following image shows the mapping inventory:

The inventory panel lists the Enterprise Data Catalog objects that have been added to the mapping. In this image, three tables have been added to the inventory. The Source tab on the Source transformation is selected, showing the "Select an object from the inventory" icon.

1Inventory icon. Shows and hides the Inventory panel.
2"Select an object from the inventory" icon in the transformation Properties panel. Selects an object from the inventory as the source, target, or lookup object.

Each mapping has its own inventory. Each object that you add to the mapping inventory stays in the inventory until you delete it.

To add an object from the inventory as a source, target, or lookup object, select the Source, Target, or Lookup transformation and click Select an object from the inventory on the tab where you configure the connection. Then select the object from the inventory.

If you enable CLAIRE recommendations in the Mapping Designer, Data Integration highlights the Recommendations tab when there is a new recommendation for objects in the inventory. For example, if an object in the inventory contains sensitive data such as credit card numbers, and you add it to the mapping as a source, target, or lookup object, Data Integration highlights the Recommendations tab. When you open the recommendations, CLAIRE might recommend that you add a Data Masking transformation to the mapping to mask the sensitive data.
