Step 5. Validate and test the mapping

In the following procedure, you save and validate the mapping and then you test run the mapping.
You can save a mapping that is not valid. However, you cannot run a task that uses a mapping that is not valid. An example of an invalid mapping is a Source transformation or Target transformation that does not have a specified connection, or a mapping that does not have a Source transformation and a Target transformation.
    1To validate the mapping, click Save.
    Whenever you save the mapping, the Mapping Designer validates the mapping. The status of the mapping displays in the header next to the mapping name. The mapping status can be Valid or Invalid.
    2If the mapping is not valid, perform the following steps:
    1. aIn the header, click the Validation icon to open the Validation panel.
      2. The Validation panel lists the mapping and the transformations used in the mapping and shows where the errors occur. For example, in the following image, the tgt_Accounts_by_State Target transformation has an error:
      The Validation panel lists the mapping, Source transformation, Target transformation, and Filter transformation. An error icon displays next to the Target transformation.
    2. bAfter you correct the errors, save the mapping and then in the Validation panel, click Refresh. The Validation panel updates to list any errors that might still be present.
    3To test the mapping, click Run.

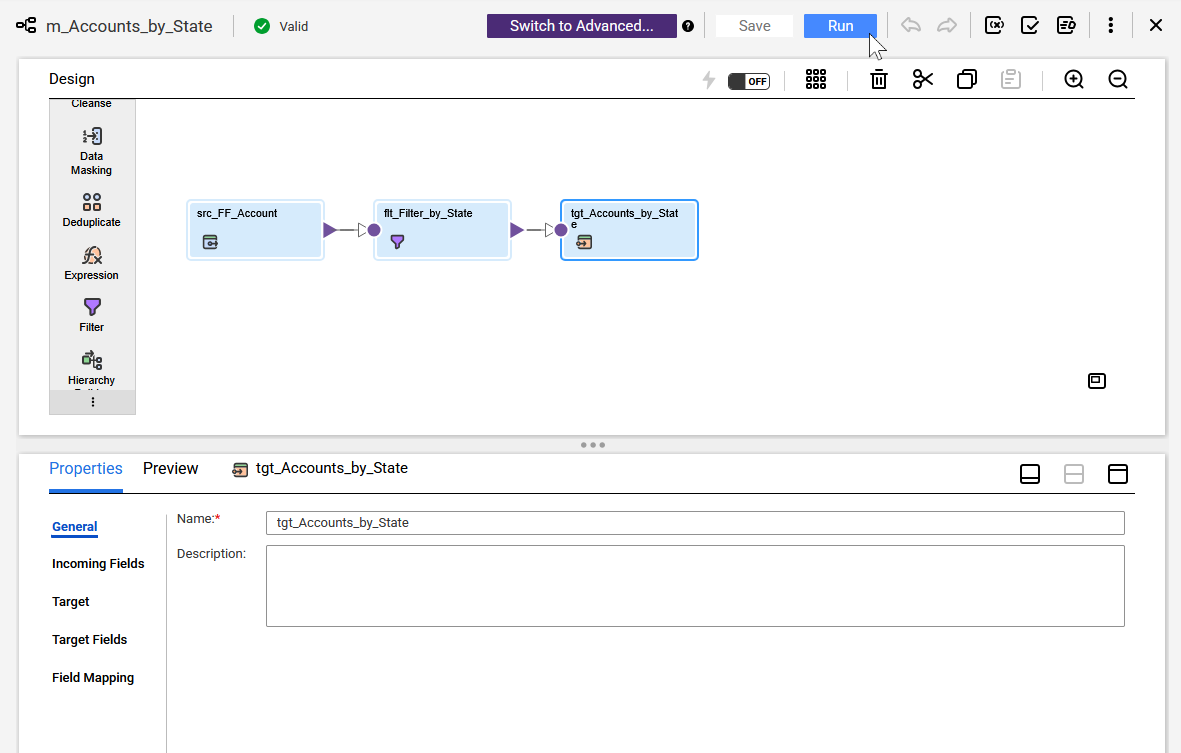

    The mapping canvas shows a complete mapping with the Source, Filter, and Target transformations. When the mapping is valid, you can click Run.
    4In the wizard, select the runtime environment and click Next.

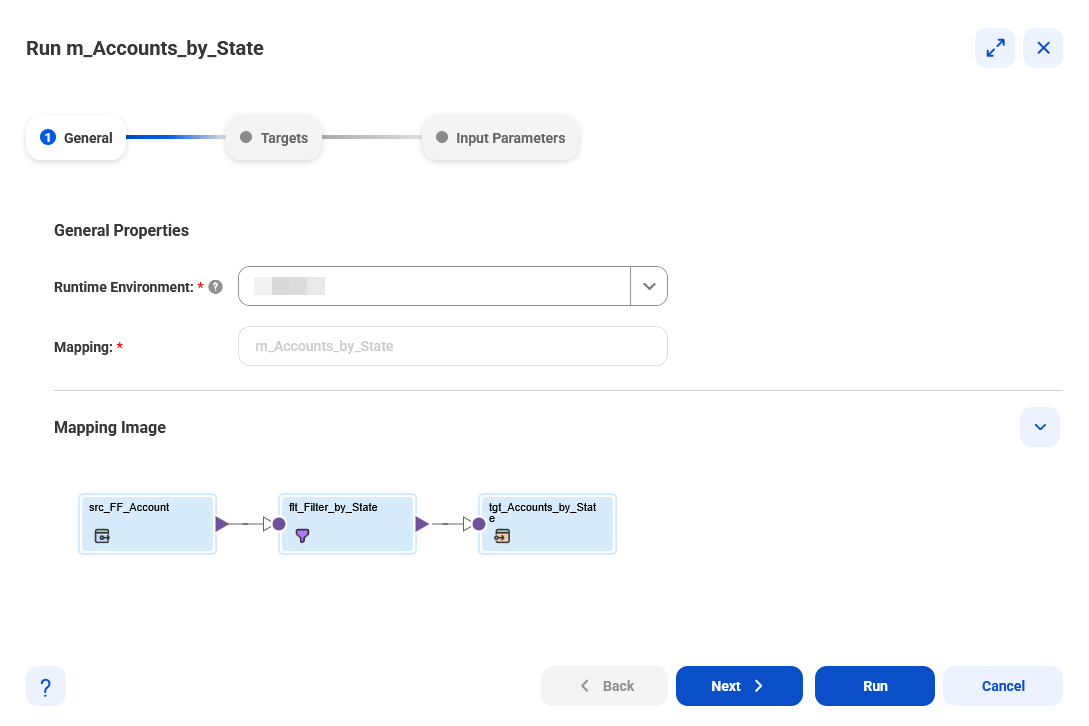

    In the first page of the wizard, you select the runtime environment to use to run the mapping. The wizard displays an image of the mapping.
    The Targets page appears. The Targets page appears because the target is parameterized. If you create a mapping that does not include a parameterized target, you will not see the Targets page when you run the mapping.
    The parameter you created for the target object displays on the page with the Accounts for State label, as you specified when you created the parameter.
    You can select a target object or create a new target object. For this tutorial, let's create a new target object that will include accounts for Texas.
    5On the Targets page, click Create Target.
    The Target Parameters Details section of the Targets page includes the Accounts for State object parameter, where you can select a target object or create a new target. The Data Preview section of the Targets page displays data from the selected target object. Because we are creating a new target, no data appears.
    6Enter the object name Accounts_By_State_TX and click OK.
    7Click Next.
    The Input Parameters page appears. In the Filter Value for State text box, note that the default value you entered for the filter condition, MD, displays in the text box.
    8Change the value from MD to TX so that the target file will include the accounts from Texas.
    9Click Run.
    The mapping task runs and then returns you to the Mapping Designer.
    10In the navigation bar, click My Jobs. The My Jobs page lists all of the jobs that you have run. At the top, you should see the mapping task that was created when you ran the mapping, as shown in the following diagram:
    The My Jobs page includes the asset name, date and time that the job completed, duration of the job, number of rows processed and status of the job.
    The My Jobs page shows that there were three accounts from Texas, which are now in your tgt_Accounts_By_State_TX target file.
    The AccountsByState .csv file lists three accounts that were filtered from the source file using the State value of TX.
