Labeler transformation configuration

When you configure a Labeler transformation in a mapping, you first select the labeler asset that contains the logic to include in the transformation. Next, you map an incoming field on the transformation to the target field that labeler asset specifies.
To configure the transformation, complete the following tasks:
    1Connect the Labeler transformation to a Source transformation or other upstream object.
    2On the Labeler tab, select the labeler asset that you want to include in the transformation.

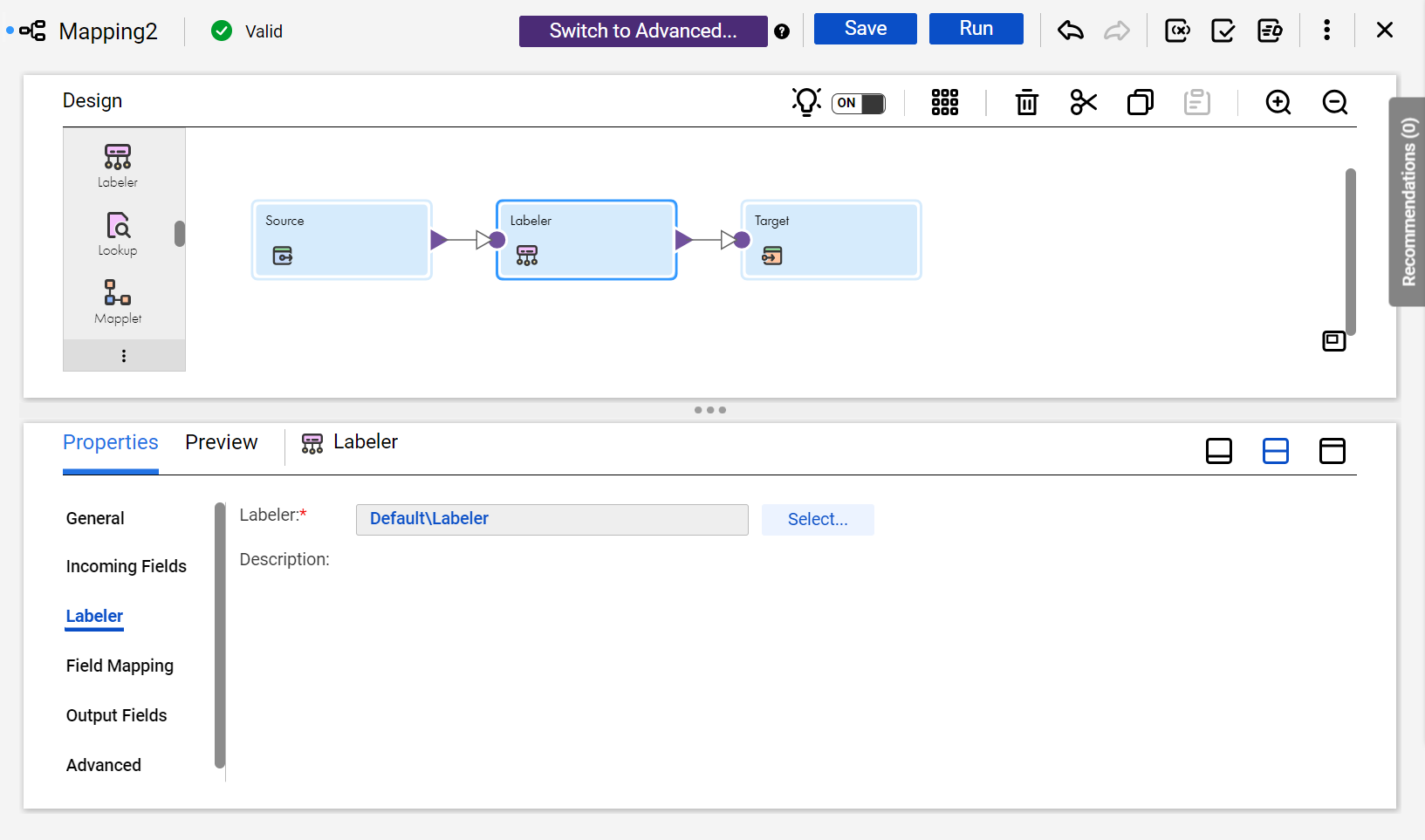

    The following image shows the options that you use to select the labeler asset:
    The image shows the Labeler tab of the transformation. The tab properties include a Select button that you can use to add a labeler asset to the transformation.
    3On the Incoming Fields tab, verify the incoming fields.
    By default, the transformation inherits all incoming fields from any connected upstream object in the mapping. You can define a field rule to limit or rename the incoming fields.
    4On the Field Mapping tab, connect a field from an upstream object to the target field.
    The labeler asset field name might reflect the name of an input field. If so, you can use the Automap options to connect the fields.
    5Verify the output field properties on the Output Fields tab.
    To learn more about the transformation output fields, see Labeler transformation output fields.
    6You can optionally rename the Labeler transformation and add a description on the General tab.
Example 1. Synchronizing data quality assets
If you update an asset in Data Quality after you add it to a transformation, you may need to synchronize the asset version in the transformation with the latest version.
To synchronize the asset versions, open the transformation in the mapping and select the transformation name in the properties panel. For example, in a Cleanse transformation select Cleanse in the properties panel. If synchronization is necessary, Data Integration displays a message that prompts you to synchronize the assets.
