Sequence transformation example

The following example shows how you can use the Sequence transformation to generate primary keys.
You are gathering customer data and need to assign customer IDs to each customer. The CustomerData.csv flat file contains your source customer data. You create a mapping that includes the Sequence transformation to create customer IDs, using the following process:
  1. 1Create a copy of the CustomerData.csv file to use as the target and then add the cust_id field to the file to hold the generated customer ID values. You name the file CustomerData_IDs.csv. The following image shows a sample of the file:

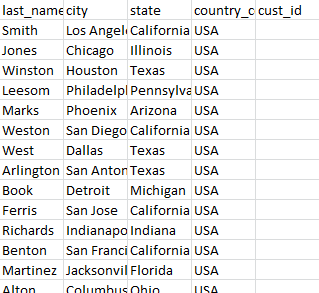

    2. The target file includes a column for the cust_id field with no values.
  2. 2Create a connection that has access to the CustomerData.csv and CustomerData_IDs.csv files.
  3. 3Create a mapping in the Mapping Designer and add a Source transformation to the mapping. You configure the transformation to use the CustomerData.csv file.
  4. 4Add a Sequence transformation to the mapping.
  5. 5To generate a simple sequence starting with 1, set the Initial Value to 1 and the Increment By value to 1. This configuration starts the sequence at 1 and increments the value by 1, for example, 1, 2, 3.

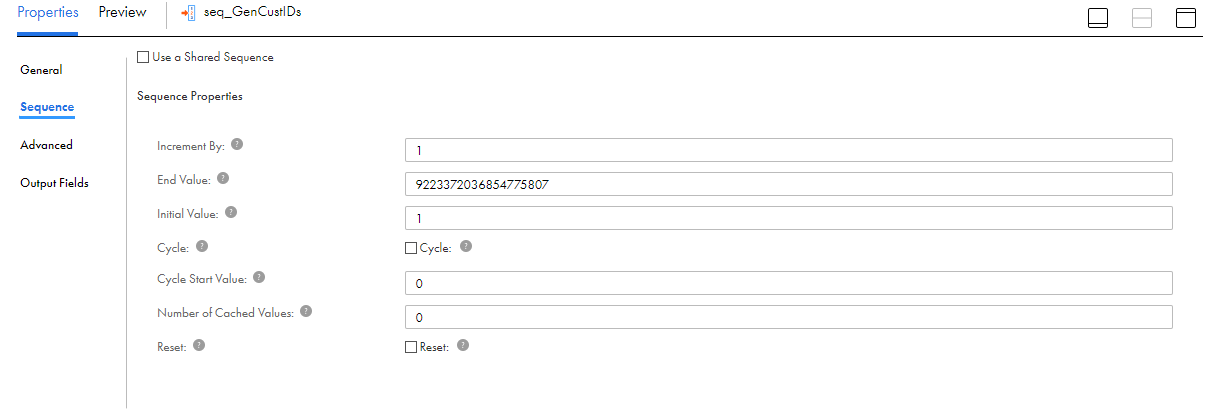

    6. You leave the default values for the other properties. The following image shows this configuration:
  6. 6Add a Target transformation to the mapping and configure the transformation to use the CustomerData_IDs.csv file that you created.
  7. 7Connect the Source transformation to the Sequence transformation and the Sequence transformation to the Target transformation:

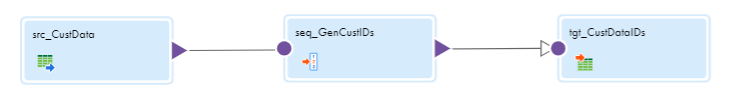

    8. The mapping canvas shows the Source transformation connected to the Sequence transformation and the Sequence transformation connected to the Target transformation.
  8. 8In the Target transformation, map the NEXTVAL output field to the cust_id field.

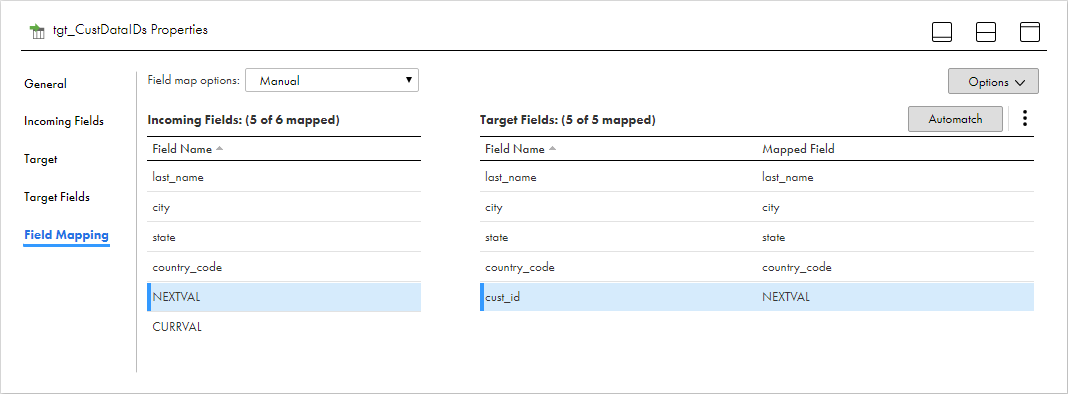

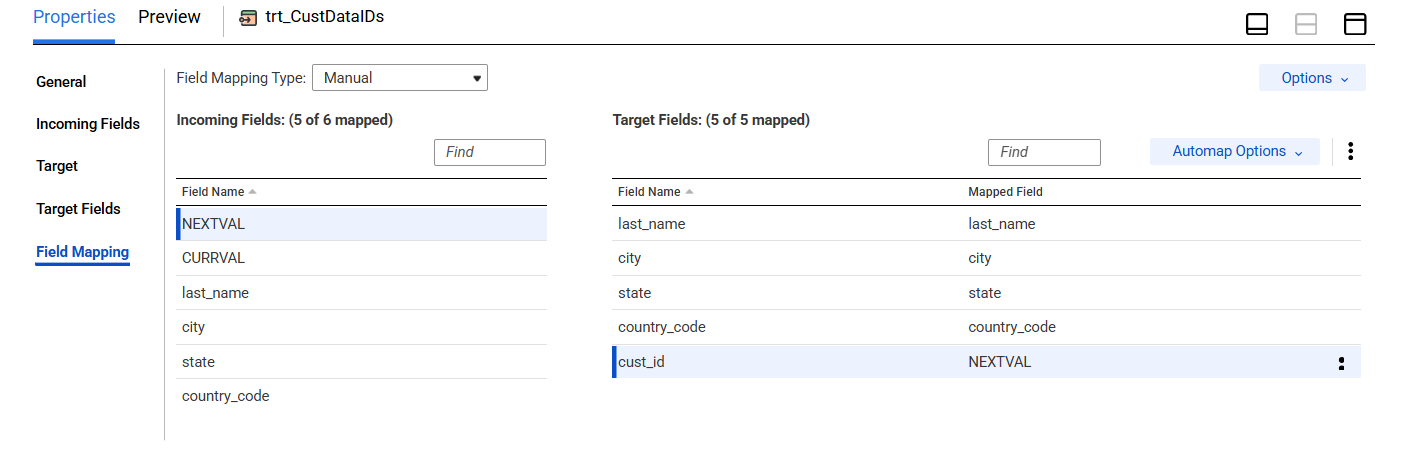

    9. The Field Mapping tab shows the NEXTVAL output field mapped to the cust_id field.

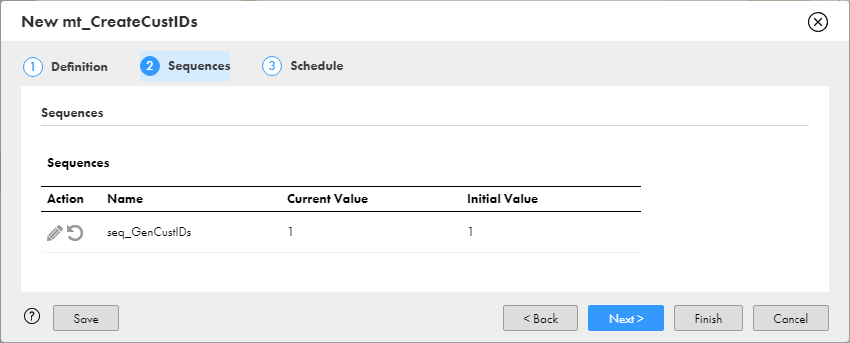

  9. 9Save the mapping and create a mapping task in the mapping task wizard. The Current Value is 1 because the mapping hasn't been run yet and the Initial Value is 1.

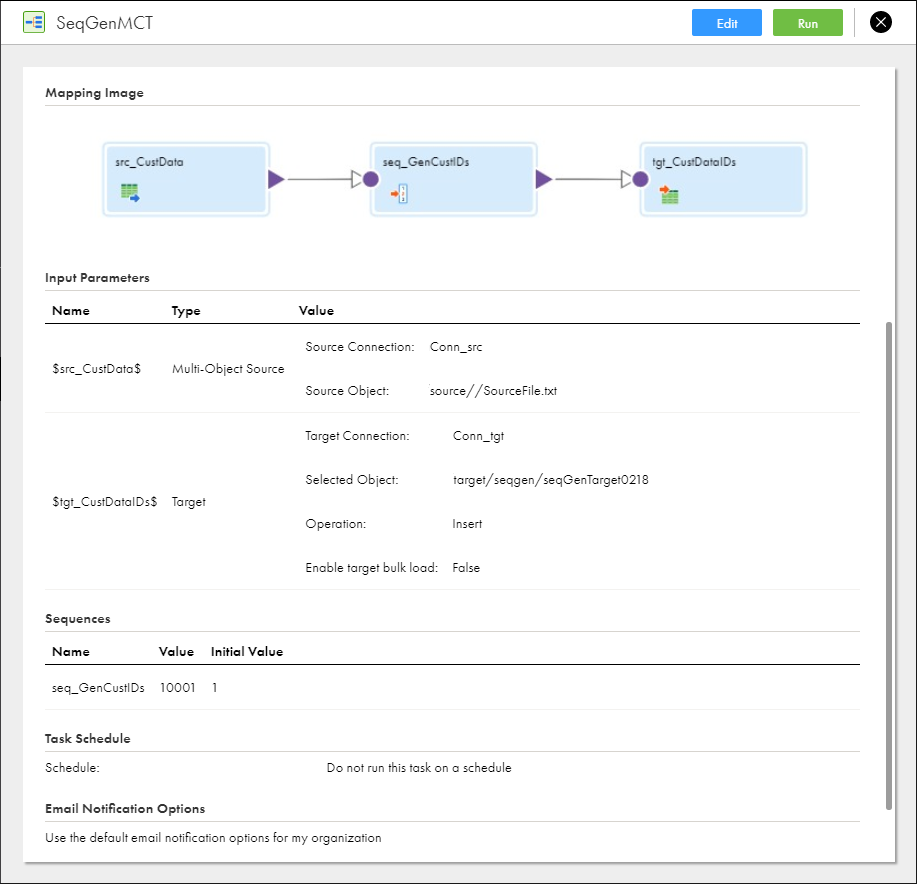

    10. The Sequences section in the mapping task detail shows that the current value is 10001 and the Initial Value is 1.
  10. 10After running the mapping task, view the mapping task details. The task details show the current value and the initial value of the sequence.
    11. The mapping task details show the current value and the initial value for the sequence.
  11. 11Open the CustomerData_IDs.csv file and note that the cust_id field is populated with a numeric sequence:

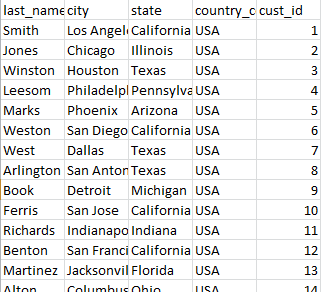

    12. The target CustomerDataIDs.csv file includes a column for the cust_id field which is populated with values generated by the Sequence transformation.
