Structure Parser transformation example

You need to parse the unstructured data in a log file and write the data to a target file in relational format.
You need to configure an intelligent structure model that analyzes unstructured data and discovers its structure.
The following image shows the log file that you want to parse:
The log file shows the log lines in unstructured format.

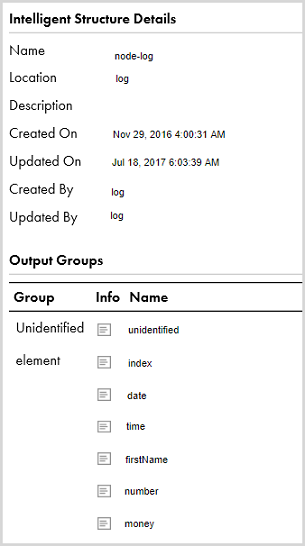

Create the intelligent structure model in Informatica Cloud. The following image shows the intelligent structure model details:
The structure definition details show the properties of the NodeLog structure definition, such as the description, structure definition model, user name, time of creation of the structure definition, and the list of output fields in the structure definition.
To parse the log file, use a Structure Parser transformation in a mapping to transform the data in the log file.
In the Mapping Designer, you add a source object that is flat file that contains the path to the log file you want to parse.

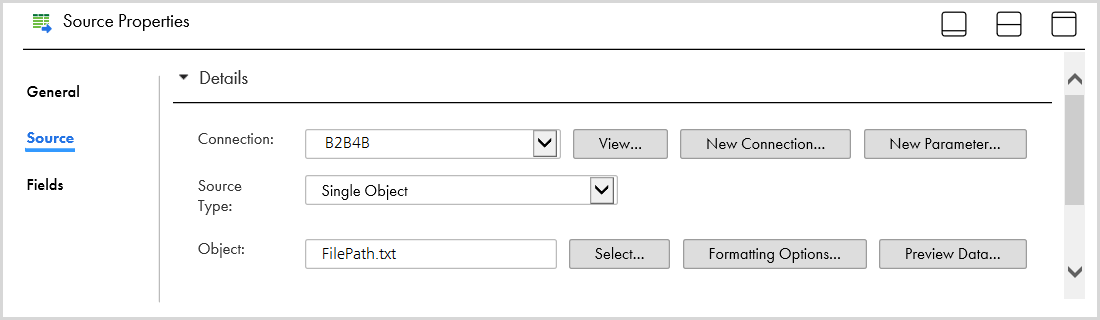

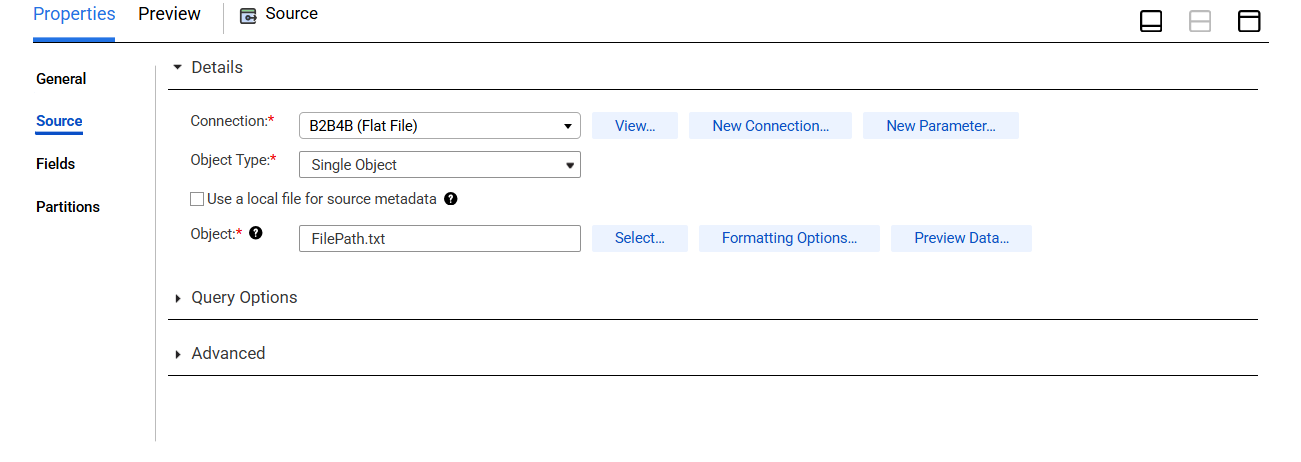

The following image shows the selected source file properties:
The source object details show the the connection, type of source, and the input file.
You add a Structure Parser transformation. Configure it to use the intelligent structure model that you configured. Select the relational output type.
You connect the source object to the Structure Parser transformation. To map the incoming data to the fields of the transformation, select the Structure Parser transformation. In the Field Mapping tab, map Path to the Structure Parser Input Fields Field Path.

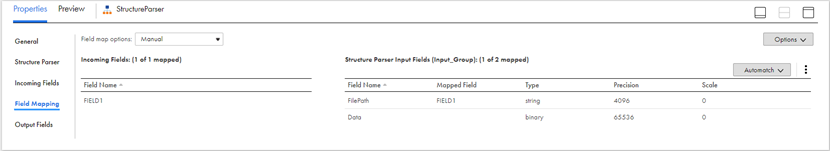

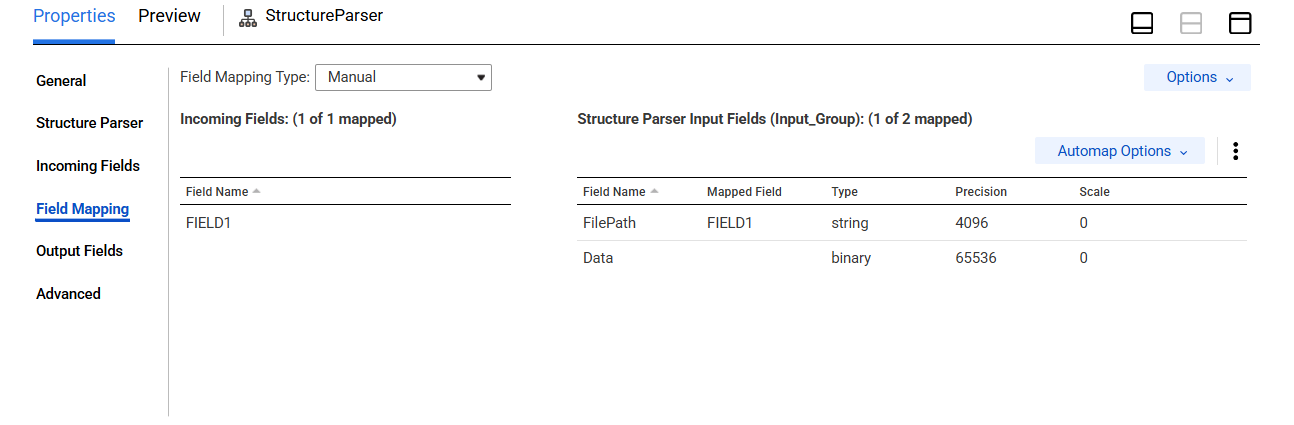

The following image shows the field mapping:
The Field Mapping tab shows the incoming fields that you can map to the Structure Parser input fields.
Add a text file target transformation for the parsed output group that you want to process named TargetFile. Add a separate text file target transformation for data that was not identified named Unidentified.

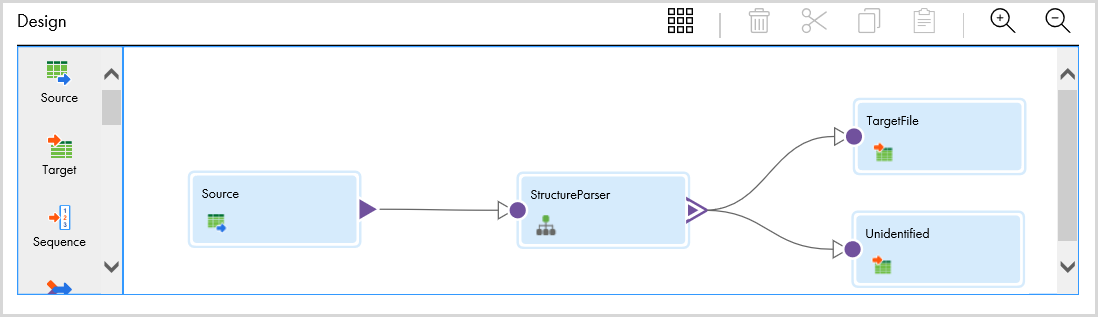

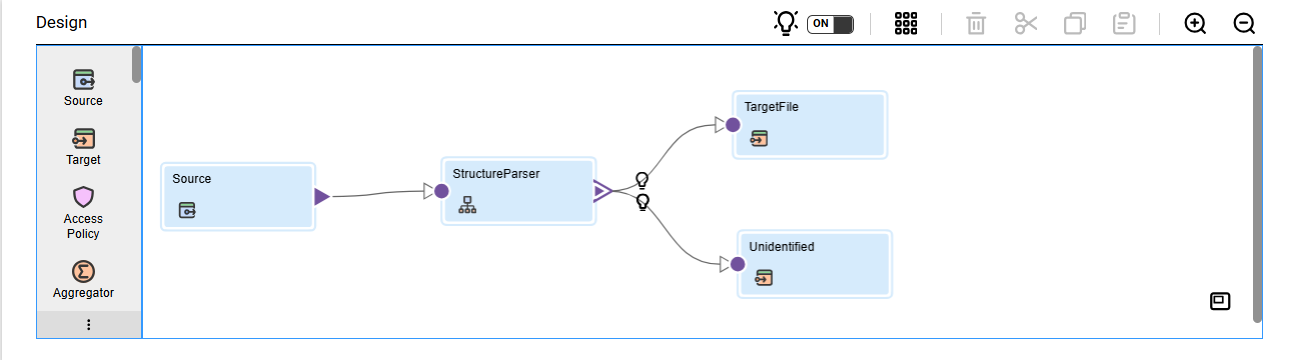

The following image shows the mapping:
The mapping shows the data flow from the SourceLogFile source to a Structure Parser transformation with name LogParser. The Structure Parser transformations is linked to the TargetFile target.
Run the mapping to write the data in a structured format to the TargetFile transformation. The mapping sends any data that was not identified by the intelligent structure to the Unidentified transformation.

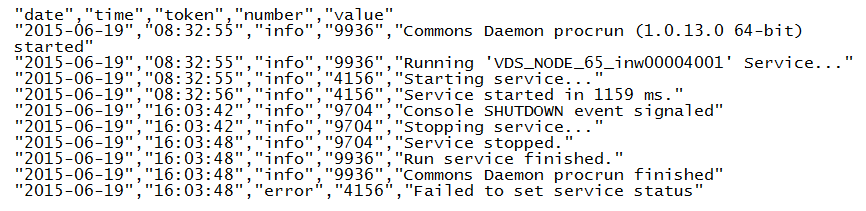

The following image shows the parsed data output file from the TargetFile transformation:
The output file shows the log lines in structured format.
If you need to further parse the data, you can include additional Structure Parser transformations midstream that will parse the output from the preceding parser.
