The Cloud Integration Hub Home page appears when you log in to Cloud Integration Hub. The Cloud Integration Hub Home page includes a navigator at the left of the page, the Hub Overview diagram, search and filters at the right of the page.
Use the navigator to create assets, track events, and explore and perform actions on existing assets.
The Hub Overview diagram provides a visual overview of the existing assets. Use the Search filter to search for applications from the Home page and view the associated topics, publications, and subscriptions in the Hub Overview diagram. Use the View filter to filter the assets that the Hub Overview diagram shows.
If you use a hosted publication repository, the repository storage usage shows at the top left of the Hub Overview diagram.

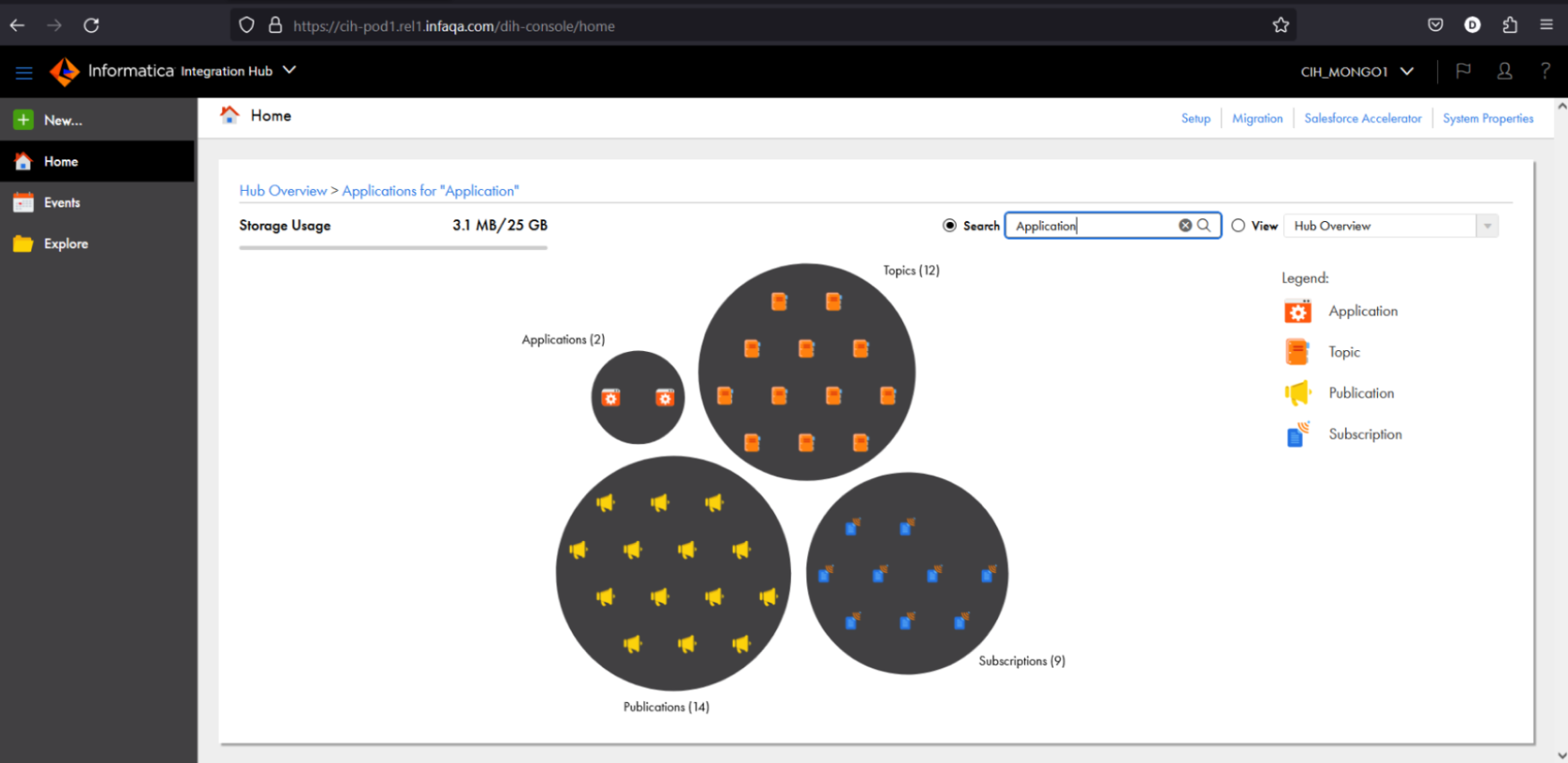

The following image shows a sample Hub Overview diagram:
Hub Overview diagram
The Cloud Integration Hub Overview page shows the Hub Overview diagram when Cloud Integration Hub contains assets such as applications, topics, publications, or subscriptions.
The Hub Overview diagram provides a visual overview of the existing assets, grouped into categories.
When you rest on an asset in the diagram, all related assets are highlighted. For example, when you rest on a topic, the applications and the publications that publish to the topic and the subscriptions that subscribe to the topic are highlighted. When you click an asset, a drill down view of the asset and its relations to other assets appears. For example, when you click a publication, the drill down view shows the publishing application, the topic to which the publication publishes data, and the subscriptions that subscribe to the topic.
When you right-click an asset in the drill down view, an action menu opens. You can perform the following actions from the menu, based on the asset type:
•View. Applies to all assets. Opens the asset in view mode.
•Run. Applies to publications and subscriptions. Runs the publication or the subscription.
Filters
The search and view filters are available on the right of the Cloud Integration Hub Home page.
You can search for applications from the Home page and view the associated topics, publications, and subscriptions in the Hub Overview diagram.
You can filter the Hub Overview diagram to the following views:
•Process errors. Entities with current error events.
•Non-valid entities. Entities that are not valid.
•Topics with no publications. Topics with no associated publications.
•Topics with no subscriptions. Topics with no associated subscriptions.
•Most used topics. Three most used topics, based on the number of publications and subscriptions that use the topic.
When you filter the diagram, entities that are not relevant to the selected filter appear in view only mode.
Navigator
Use the navigator to create assets, track events, and explore and perform actions on existing assets.
The following table lists the navigator icons and describes the functions that they perform:
Icon
Name
Function
New
Create a new asset: application, publication, subscription, topic, or monitoring rule.
Home
Go to the Overview page.
Events
Go to the Events page.
Explore
Explore existing assets and perform actions on existing assets.
Explore page
Use the Explore page to work with your Informatica Intelligent Cloud Services projects and assets.
Finding projects and assets on the Explore page
Use any of the following methods to find your projects and assets on the Explore page:
•Explore by projects and folders. Vew all projects or select a particular project.
•Explore by asset types. View all assets or view assets of a particular type.
•Explore by tags. View assets associated with a particular tag.
•Search for projects or assets. To search all projects, folders, and assets in the organization, view the Explore page by All Projects, and then enter a name or description in the Find box. Or, to narrow your search, filter the Explore page by All Assets, select a specific asset type, project, or folder, and then enter a name or description in the Find box.
•Sort the search results. Sort the Explore page by name, last update date, description, or type. When you sort by type, the Explore page groups assets by asset type. It does not list the asset types in alphabetical order.
You can see projects, folders, and assets for all of the services that you use. If you select an asset to open it or perform an action and the asset is created in a different service than the one you have open, the service opens in a new browser tab.
You can't use the following characters:
# ? ' | { } " ^ & [ ] / \
Do not use these characters in project, folder, asset, or tag names.
Working with projects and assets on the Explore page
Perform actions on projects, folders, and assets on the Explore page. To see what actions you can perform on an object, in the row that contains the object, click the Actions icon. The Actions menu lists the actions you can perform based on your user role privileges.
Customizing the Explore page

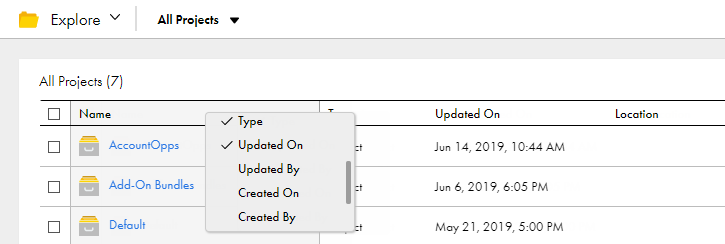

You can display, hide, or rearrange object properties on the Explore page. To display or hide properties, right-click the column heading area and check or uncheck the properties. The following image shows the properties menu on the Explore page column heading area:
To rearrange columns, click a column heading and drag it to a different location.
Accessing Cloud Integration Hub
Access Cloud Integration Hub through the Informatica Intelligent Cloud Services, from the My Services page.
Before you access Cloud Integration Hub for the first time, the administrator sets up the organization in Informatica Intelligent Cloud Services and then sets up the organization in Cloud Integration Hub. If, when you access Cloud Integration Hub for the first time, the Organization Cloud Setup dialog box shows, it is an indication that your administrator did not perform the process of provisioning the organization to the hub. Contact your administrator or follow the instructions on the screen.For details, see Organization management.
1On the Informatica Intelligent Cloud Services login page, enter your Informatica Intelligent Cloud Services user name and password.
2Click Log In.
The Informatica Intelligent Cloud ServicesMy Services page appears.
3Select Integration Hub.
The Cloud Integration Hub application appears.
Note: The Integration Hub link appears on the My Services page if your organization has the required licences. If the link doesn't appear on the My Services page, contact your administrator.
