The Assign Connections tab on the Lineage tab of the Configure page lets you assign and unassign connection and displays the list of all connections along with the following details for each connection:
Property
Description
Connection Name
The name of the connection.
Origin
The catalog source from which the connection is assigned.
Assigned Catalog Source
The catalog source to which the connection is assigned.
Endpoint
The object in the catalog source that has a connection to another object in another catalog source.
Type
The type of catalog source.
Job Status
The status of the assign or unassign job.
Objects
Percentage of the matched objects versus unmatched objects in the catalog sources.
You can apply a filter or sort the list of connections by connection name. You can also search for a connection by using the connection name. For example, to find a connection name starting with HE4CLNT, you can search using the prefix or suffix, that is, HE4* or *4CLNT.

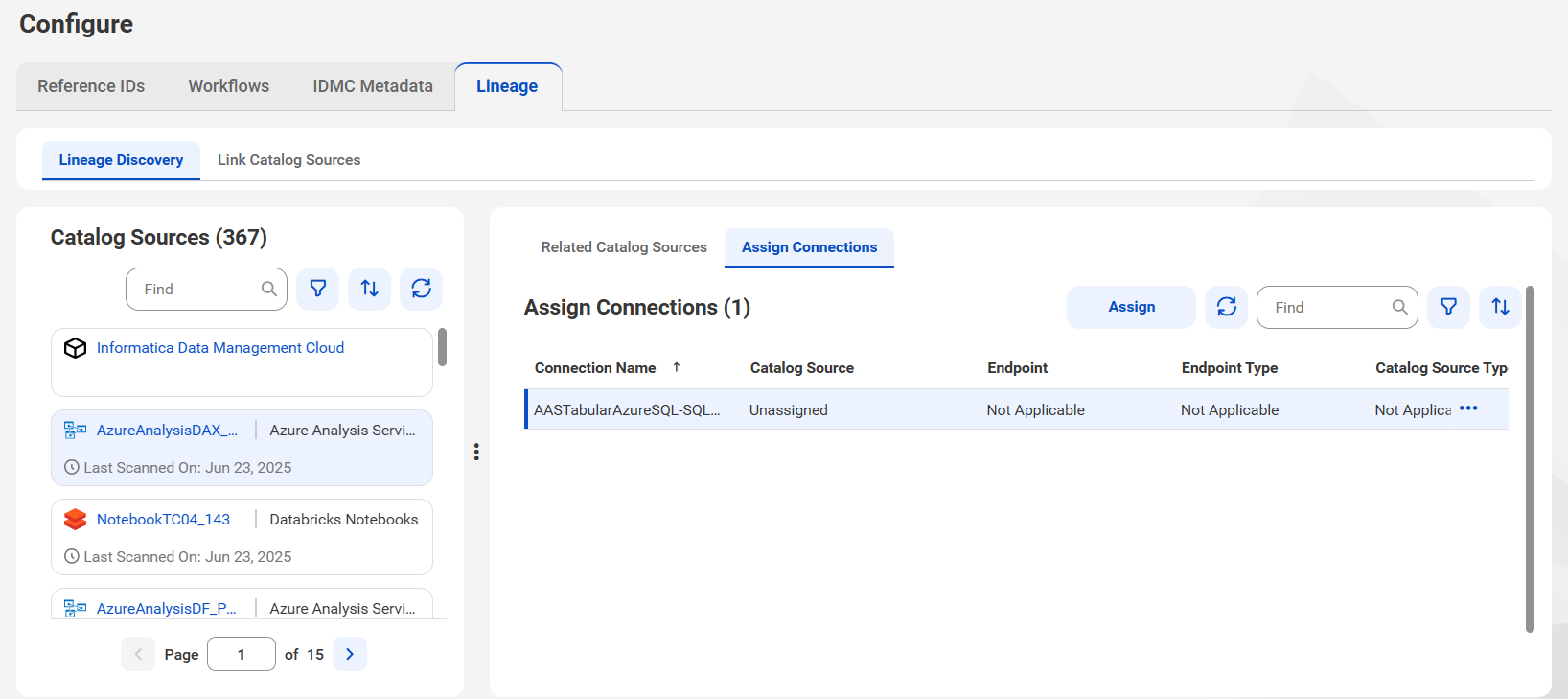

The following image shows an example of the Assign Connections tab on the Configure page.
Note: If the source schema contains case-sensitive tables or if the reference objects contain multiple objects with the same name in different cases, perform case-sensitive connection assignment to get correct lineage.
