Step 2. Configure capabilities

When you configure the Apache Atlas catalog source, you define the settings for the metadata extraction capability.

The metadata extraction capability extracts source metadata from external source systems. You can also configure other capabilities that the catalog source includes.

You can save the catalog source configuration at any point after you enter the connection information. After you save the catalog source, you can choose to run the catalog source job. To run the job once, click Run. To run metadata extraction and other capabilities on a recurring schedule, configure schedules on the Schedule tab.

Configure metadata extraction

When you configure the Apache Atlas catalog source, you choose a runtime environment, define filters, and enter configuration parameters for metadata extraction.

1In the Connection and Runtime area, choose a serverless runtime environment or the Secure Agent group where you want to run catalog source jobs.

Note:

Serverless runtime environment options are available if the catalog source works with a serverless runtime environment.

2Choose to retain, delete, or deprecate objects that are deleted from the source system in the catalog with the Metadata Change Option.

- Retain. Retains objects that are deleted from the source system in the catalog. If you update or add a filter, the catalog retains objects extracted from the previous job and extracts additional objects that match the current filter. Objects deleted from the source system are not deleted from the catalog. Enrichments added on deleted objects and relationships are retained.
- Delete. Deletes metadata from the catalog based on objects deleted from the source system and changes you make to the filter. Enrichments added on deleted objects and relationships are also permanently lost. Objects renamed in the source system are removed and recreated in the catalog.
- Deprecate. When objects are deleted from the source system, the catalog changes the lifecycle of the imported objects to Obsolete. The lifecycle of objects also changes to Obsolete when you add exclusion filters or reduce the scope so that objects extracted in earlier jobs are no longer included. For example, the first job includes the sales schema. The second job also includes the sales schema, but excludes the sales.transactions table. In this case, the second job marks the sales.transactions object as Obsolete, even though the first job includes it. This does not impact enrichments applied to deprecated objects and relationships. Objects renamed in the source system are removed and recreated in the catalog. When you run the catalog source job again for other capabilities such as data classification, relationship discovery, or glossary association, the job doesn't consider obsolete objects. Obsolete objects remain in the catalog until they are purged when you run a Purge Obsolete Objects job on the Explore page.

Note:

You can also change the configured metadata change option when you run a catalog source.

3In the Filters area, define one or more filter conditions to apply for metadata extraction:

aFrom the Include or Exclude metadata list, choose to include or exclude metadata based on the filter parameters.
bFrom the Object type list, select Hive Database, HDFS Path, or HBase Namespace.
cEnter the filter values.

Filters can contain the following wildcards:

▪ Question mark. Represents a single character.
▪ Asterisk. Represents multiple characters or empty text.

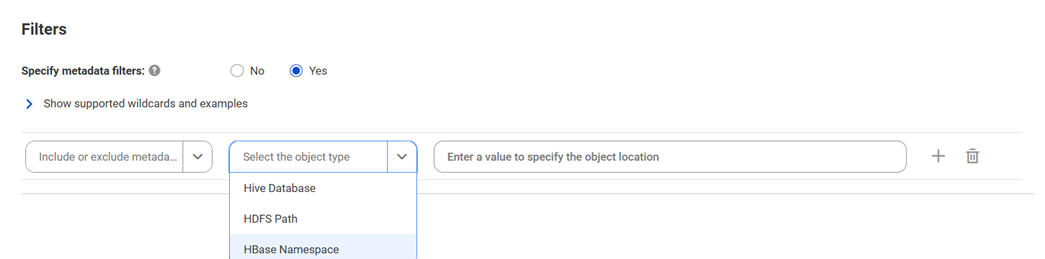

The following image shows the filter condition options:

The image shows the Filters area for the Apache Atlas catalog source. You can select to include or exclude metadata from Hive Database or HDFS path and enter a value to specify the object location.

dTo define an additional filter with an OR condition, click the Add icon.

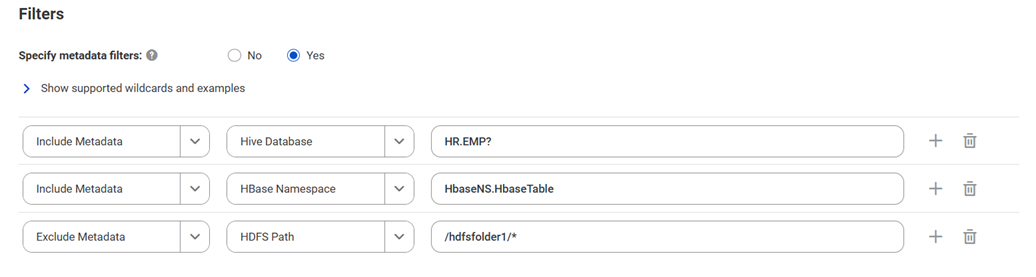

The following image shows that the filter includes metadata related to Hive tables in the HR database with names that start with EMP followed by a single character, includes metadata related to the table named HbaseTable located in the HbaseNS namespace, and excludes metadata related to all files in the hdfsfolder1 folder and its subfolders:

The image shows the filter conditions for an Apache Atlas catalog source that includes metadata related to Hive tables in the HR database with names that start with EMP followed by a single character, includes metadata related to the table named HbaseTable located in the HbaseNS namespace, and excludes metadata related to all files in the hdfsfolder1 folder and its subfolders.

Exclude filter conditions are considered if the assets in the include filter conditions are not related or linked through lineage to the excluded assets. For example, add a filter condition to include metadata related to all tables with the name EMP across all databases (*.EMP) and then add another filter condition to exclude metadata related to the EMP table located in the HR database (HR.EMP). Here, the exclude filter condition is considered as the assets are not related or linked through lineage.

Exclude filter conditions are not considered if the assets in the include filter conditions are related or linked through lineage to the excluded assets. For example, add a filter condition to include metadata related to EMP table in the HR database (HR.EMP) and then add another filter condition to exclude metadata related to SAL table in the same HR database (HR.SAL). Here, the exclude filter condition is not considered due to the presence of lineage links between the EMP and SAL tables.

If you add a filter condition to include metadata from a table deleted from the Apache Atlas source system, Metadata Command Center ignores the filter condition.

If the value of the HDFS Path filter contains special characters, replace the special characters with an asterisk wildcard character. For example, replace /Test$~^!()*<>_Folder with /Test*Folder.

4In the Configuration Parameters area, enter configuration properties.

Note:

Click Show Advanced to view all configuration parameters.

The following table describes the properties that you can enter:

Property	Description
Lineage Direction	Direction of data flow between assets that you extract from Apache Atlas with the direction parameter of the LineageRESTAPI. Select one of the following options: - BOTH. Extracts both input and output data flow between assets. - INPUT. Extracts only input data flow between assets. - OUTPUT. Extracts only output data flow between assets.
Lineage Depth	Number of lineage hops to extract from Apache Atlas for filtered assets with the depth parameter of the LineageRESTAPI. Default is 3.
Page Result Limit	Advanced parameter. Maximum number of search result entries per page from a fetch using the limit parameter of the DiscoveryRESTAPI. Default is 1000.
Entity Bulk Fetch Count	Advanced parameter. Maximum number of entities to include in a bulk fetch when you use the BulkEntityRESTAPI. Default is 100.
Connection Timeout	Advanced parameter. Maximum amount of time, in milliseconds, that the Secure Agent waits to set up an HTTP connection to communicate and get a response from the Apache Atlas server.  Default is -1 which means timeout is disabled.
Parallel Lineage Fetch Count	Advanced parameter. Maximum number of LineageRESTAPI calls that can run simultaneously to retrieve lineage data. Default is 5.

5Optional. In the Configuration Parameters area, enter additional settings.

The following table describes the property that you enter for additional settings:

Note:

The Additional Settings section appears when you click Show Advanced.

Property	Description
Expert Parameters	Enter additional configuration options to be passed at runtime. Required if you need to troubleshoot the catalog source job. Caution: Use expert parameters when it is recommended by Informatica Global Customer Support.

6Configure additional capabilities for the catalog source by clicking on the tabs.

Configure automation

Enable the lineage discovery and autonomous enrichment capabilities to build complete lineage using CLAIRE and to receive enrichments propagated from catalog sources connected through lineage.

Enable Lineage-based Propagation on the Autonomous Enrichment tab of the Configure page before you configure this catalog source to receive enrichments. For more information, see Administration.

With the lineage-based propagation settings on this tab, you configure how this catalog source receives enrichments propagated from connected catalog sources. Enrichments propagate only to assets that don't already have enrichments.

1Click the Automation tab.

2In the Lineage Discovery section, select Enable Lineage Discovery.

3In the Filters area, define one or more filter conditions to apply for lineage discovery.

To define filters, you can choose to select catalog source types, asset groups, or enter a catalog source name or search from a list of catalog sources.

aSelect Yes to view filter options.
bFrom the Include/Exclude list, choose to include or exclude catalog sources for lineage discovery based on the filter parameters.
cFrom the filter type list, select catalog source type, catalog source name, or asset group.
dIn the filter value field, select the required catalog source types, or click the Search button and select catalog sources or asset groups.

Filters can contain the asterisk wildcard to represent multiple characters or empty text.

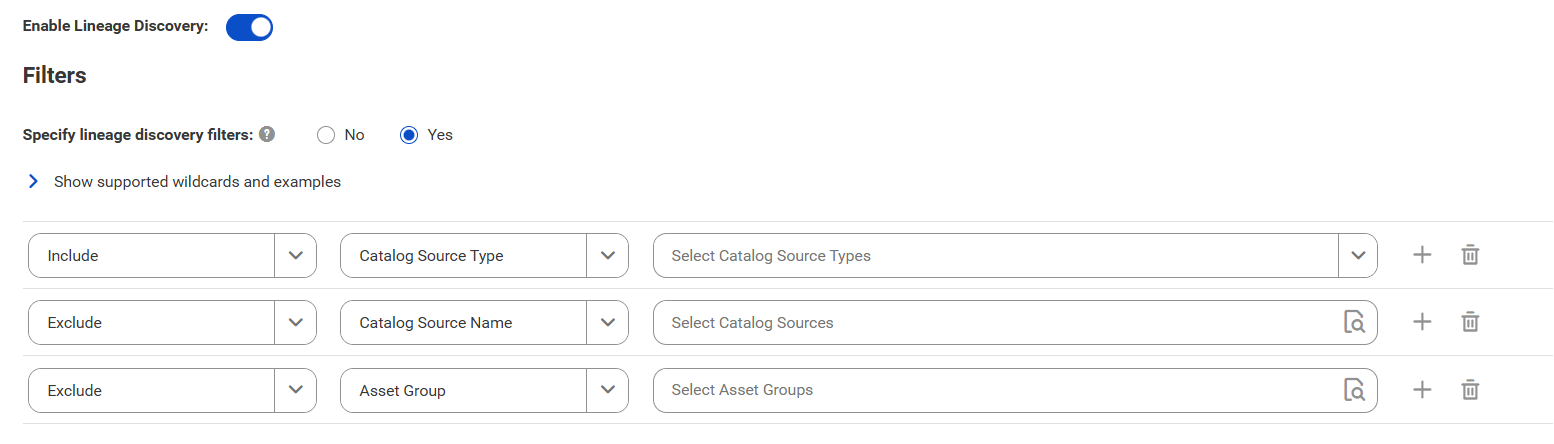

The filter options appear. The filter options include multiple filter conditions that you can choose.

Examples:

▪ To include or exclude all Oracle catalog sources, select Catalog Source Type as the filter type and select Oracle in the filter value field.
▪ To include or exclude the 'Oracle_Retail' catalog source, select Catalog Source Name as the filter type and search for the catalog source or enter Oracle_Retail in the filter value field.
▪ To include or exclude all catalog sources with names that start with 'Oracle', select Catalog Source Name as the filter type and search for the catalog source or enter Oracle* in the filter value field.
▪ To include or exclude all catalog sources with names that end with 'Retail', select Catalog Source Name as the filter type and search for the catalog source or enter *Retail in the filter value field.
▪ To include or exclude all catalog sources with names that contain 'Ret', select Catalog Source Name as the filter type and search for the catalog source or enter *Ret* in the filter value field.
▪ To include or exclude all catalog sources that are part of the 'Financial Group' asset group, select Asset Group as the filter type and search Financial Group in the filter value field.

Note:

You can't add more than one include or exclude filter for the same filter type.

eOptionally, to define an additional filter with an AND condition, click the Add icon.

4In the Autonomous Enrichment section, select Enable Lineage-based Propagation.

The lineage-based propagation settings appear.

5Select the enrichment types to receive from connected catalog sources.

You can select Classification, Description, Business Name, and Glossary Term.

6Choose how to apply received enrichments.

- Select Auto-accepted to apply received enrichments automatically.
- Select Recommended to list them as suggestions that you can curate in Data Governance and Catalog.

7Choose whether to receive enrichments only from certified assets.

Assets are certified in Data Governance and Catalog. This option is selected by default. If you clear it, this catalog source also receives enrichments from assets that are not certified, which might be less reliable.

8Choose where this catalog source receives enrichments from.

- Select Catalog Source to receive enrichments from a specific catalog source.
- Select Nearest Neighbor to receive enrichments from the closest connected catalog source based on lineage.

9If you select Catalog Source, select a catalog source from the list.

Ensure that the catalog source you select is within 15 lineage hops. Enrichments don't propagate from a catalog source beyond that distance.

10If you select Nearest Neighbor, configure the lineage settings:

aSet Lineage Direction to search upstream, downstream, or in both directions.

Upstream catalog sources feed data into this catalog source. Downstream catalog sources receive data from this catalog source. Select both directions to search upstream and downstream at the same time.

bSet Number of Hops to define how far along lineage to search.

The search stops at the first connected catalog source that has enrichments, up to a maximum of 15 hops.

11Click Save.

When you save, the catalog source begins receiving enrichments created from that point onward. Saving doesn't retrieve enrichments created prior to this date and time. To receive such enrichments, run the catalog source job manually and include the Autonomous Enrichment capability.
