Kafka Sources > Introduction to Kafka catalog sources > Extraction and view process


Extraction and view process

To extract metadata from a source system, configure the catalog source and run the extraction job in Metadata Command Center. Then view the results in Data Governance and Catalog.

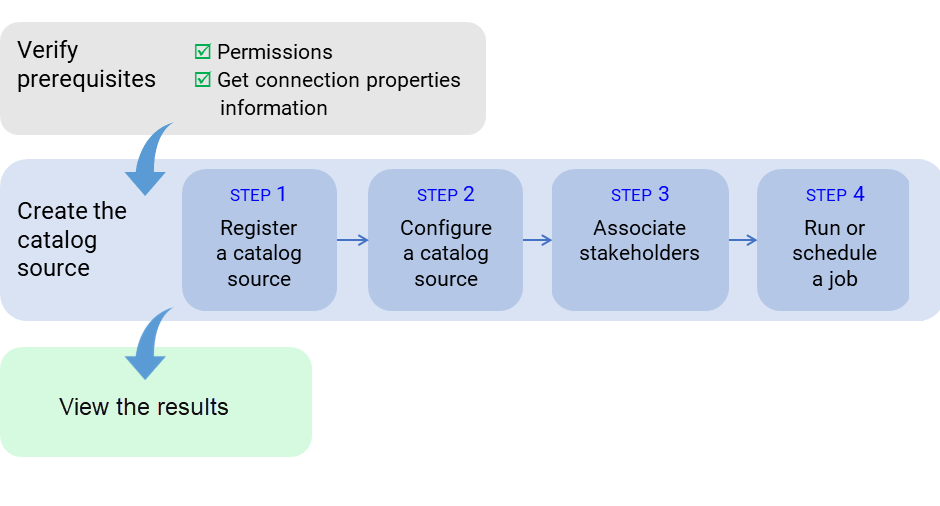

The following image shows the process to extract metadata from a Kafka source system:

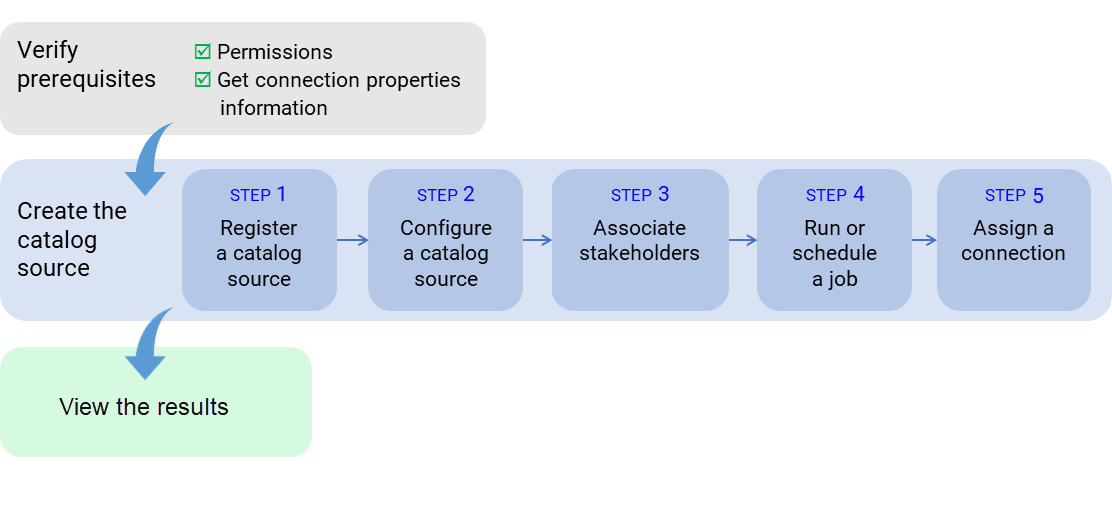

The image shows the process of metadata extraction from a Kafka source system that begins with prerequisites verification, continues with the creation of the catalog source, and ends with viewing the extraction results.
After you verify prerequisites, perform the following tasks to extract metadata from Kafka:
  1. 1Register a catalog source. Create a catalog source object, select Kafka, test the connection and configure Kafka distribution options.
  2. 2Configure the catalog source. Specify the runtime environment and configure parameters for metadata extraction. Optionally, add filters to include or exclude source system assets from metadata extraction. You can also configure other capabilities such as data profiling and quality, data classification, or glossary association.
  3. 3Optionally, associate stakeholders. Associate users with technical assets, giving the users permission to perform actions determined by their roles.
  4. 4Run or schedule the catalog source job.
After you run the catalog source job, you view the results in Data Governance and Catalog.
