Use fields, functions, and operators to create expressions in the Expression Editor.
If you assign the value Formula to a field, you must create a formula or an expression for the field to take data from. Use the Expression Editor to create expressions.

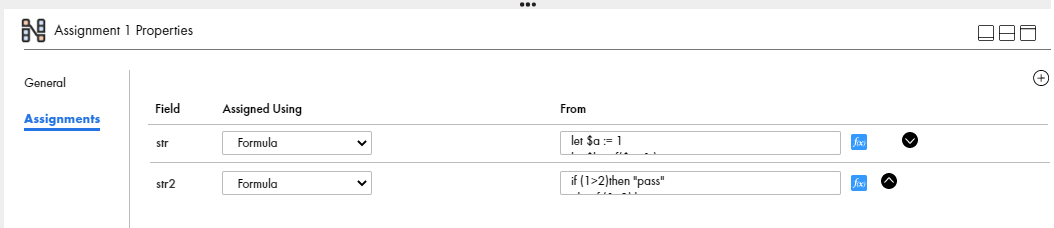

In the following image, fields str and str2 have the value Formula:
Note: The Expression Editor comes with powerful functions that can invoke operating system features. You must review the content passed into the functions before using them.
To open the Expression Editor, click f(x) next to a field wit h the value Formula.

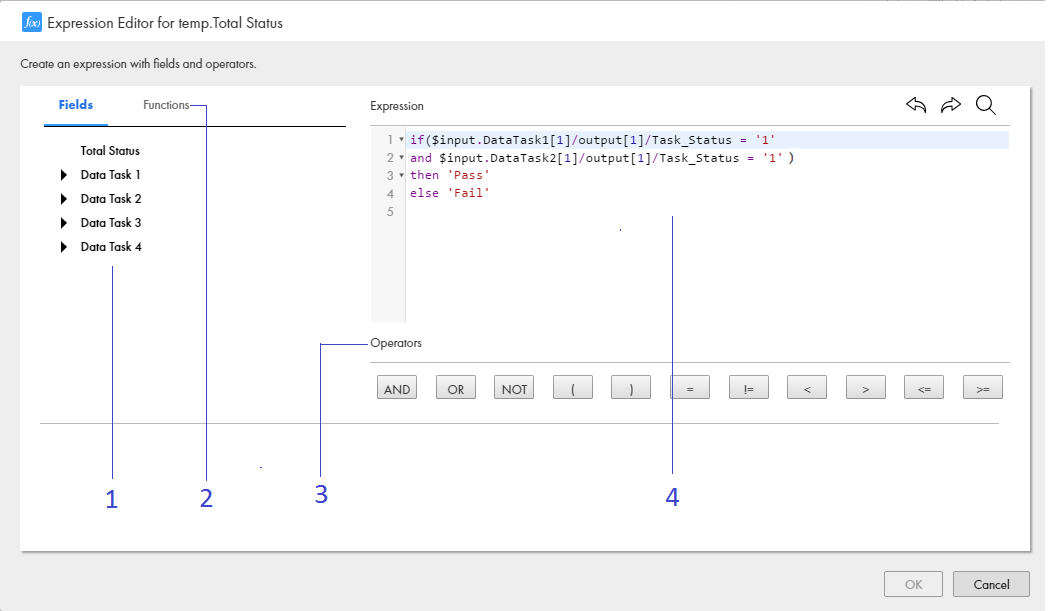

The following image shows the Expression Editor dialog box:
The Expression Editor contains the following sections:
•Section 1, the Fields section. A list of input, output, and temporary fields that you define appears here.
•Section 2, the Functions section. A list of common XQuery functions appears here. Select a function to view its meaning.
•Section 3, the Operators section. A list of operators that you can use to build an expression appears here.
•Section 4, the Expression section. The Expression you build appears here. The conditions and operators that you use are case sensitive.
The expression in the image defines a temporary field, Total Status, as Pass if three tasks that run in parallel succeed.
Next, the taskflow uses Total Status in a Data Decision step. If the value of Total Status is Pass, the taskflow runs another Data Task. If the value of Total Status is Fail, the taskflow ends.

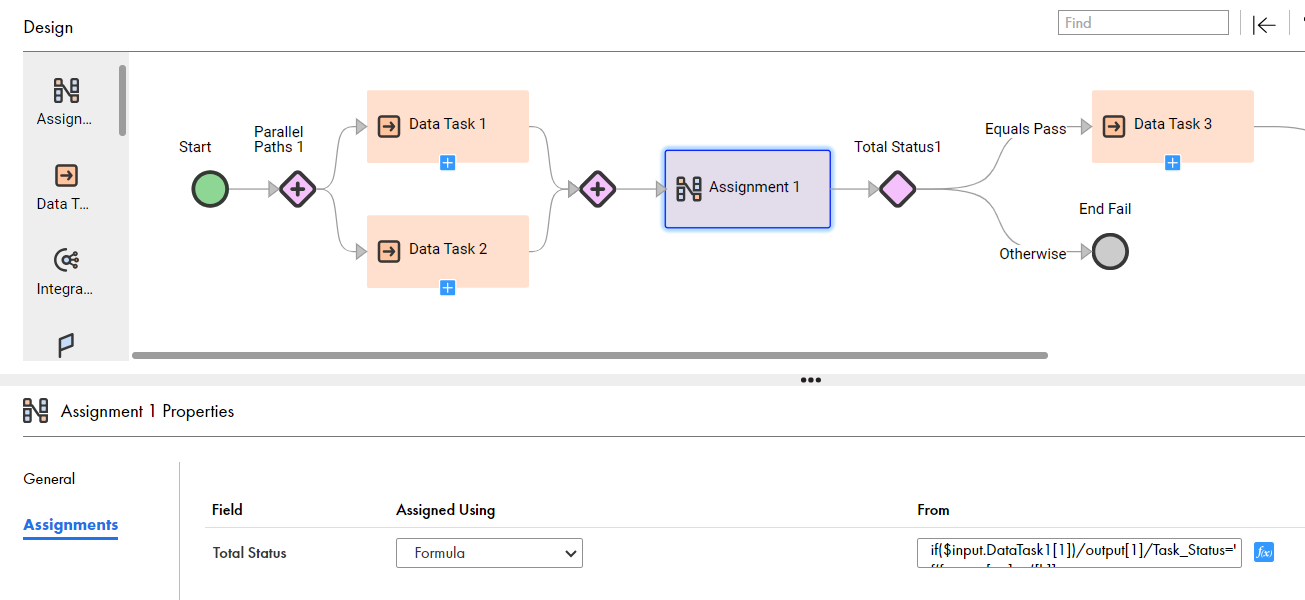

The following image shows the taskflow that uses Total Status:
Use the following options to create an expression:
•To add a field, click the Fields tab, drill down to the field that you want to use, and click Add.
•To add an operator, click an operator in the Operators section. You can also manually enter an operator. For example, manually enter the If operator.
•To add a function, click the Functions tab, drill down to the function you want to use, and click Add.
•To add a comment, enter the comment in the Expression section with the following syntax:(:<comment>:).
For example, enter (:This is a sample comment:).
Use comments to give descriptive information about the expression or to specify a URL to access business documentation about the expression.
The Expression Editor validates the expression as you enter it. You cannot save an expression that is not valid.
