Administration of Oracle HCM Cloud Connector

Prerequisite Tasks for Read Operation

1. 1Create an HCM extract definitions for the data that you want to extract from the Oracle HCM Cloud application.
2. 2On the Oracle HCM Cloud application, configure the following properties when you create the HCM extract definitions:
1. aIn the Extract Deliver Options page under the Manage Extract Definitions tab, set the value of the Output Type field as Data and Delivery Type field as WebCenter Content.
2. bSpecify the values of the Integration Name and Encryption Mode fields

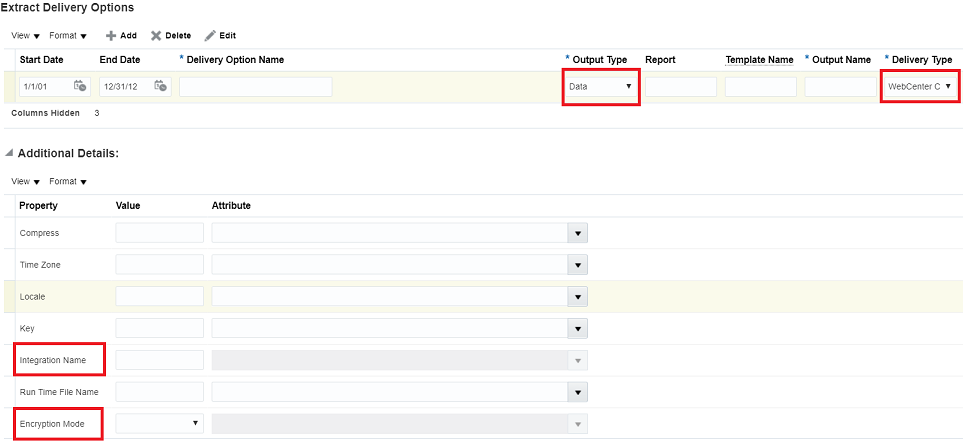

3. The following image shows the Extract Deliver Options page where you can set the value of the Output Type, Delivery Type, Integration Name, and Encryption Mode fields:

4. 3Ensure that you submit the HCM extract definitions to the Oracle WebCenter Content Server from the Oracle HCM Cloud application. You can also use the Submit Extract connection property to submit the HCM extract definitions to the Oracle WebCenter Content Server.
5. 4Generate the XML schema in the XSD file format for all the HCM extract definitions and store the XSD files on the machine where the Secure Agent is installed. Oracle HCM Cloud Connector supports the XSD files with a single root element.
Note: You must use a third party tool to generate the XML schema from the output XML data. Provide the XSD files that are compatible with the output XML data. Informatica recommends that you name the XSD file in the <TemplateName>.xsd format.
6. 5Place all the XSD files in the reader directory under the schema directory that you specify in the connection property.

Obtain the WebCenter Content URL

1Obtain the URL for Oracle HCM Cloud Setup and Maintenance from the Service Details section in the cloud environments provisioning email from Oracle.
The following example shows a sample URL: https://fs-<domain_name>.oracleoutsourcing.com/setup/faces/TaskListManagerTop
2Edit the URL by removing the following path: /setup/faces/TaskListManagerTop
The following URL is a sample of the WebCenter Content URL:
https://fs-<domain_name>.oracleoutsourcing.com

Prerequisite Tasks for Write Operation

1. 1Ensure that the following roles are assigned to you:

Role	Role Code
Application Administrator	ORA_FND_APPLICATION_ADMINISTRATOR_JOB
Application Developer	ORA_FND_APPLICATION_DEVELOPER_JOB
Application Diagnostics Administrator	ORA_FND_DIAG_ADMINISTRATOR_JOB
Application Implementation Administrator	ORA_ASM_APPLICATION_IMPLEMENTATION_ADMIN_ABSTRACT
Application Implementation Consultant	ORA_ASM_APPLICATION_IMPLEMENTATION_CONSULTANT_JOB
Application Implementation Manager	ORA_ASM_APPLICATION_IMPLEMENTATION_MANAGER_JOB
Human Capital Management Application Administrator	ORA_HRC_HUMAN_CAPITAL_MANAGEMENT_APPLICATION_ADMINISTRATOR_JOB
Human Capital Management Integration Specialist	ORA_HRC_HUMAN_CAPITAL_MANAGEMENT_INTEGRATION_SPECIALIST_JOB
IT Security Manager	ORA_FND_IT_SECURITY_MANAGER_JOB
Integration Specialist	ORA_FND_INTEGRATION_SPECIALIST_JOB

2. 2You must download the XLS files from the Oracle Support site using the Doc ID: 2020600.1 business objects documentation ID. The Oracle HCM Cloud identifies the target metadata using the XLS files.

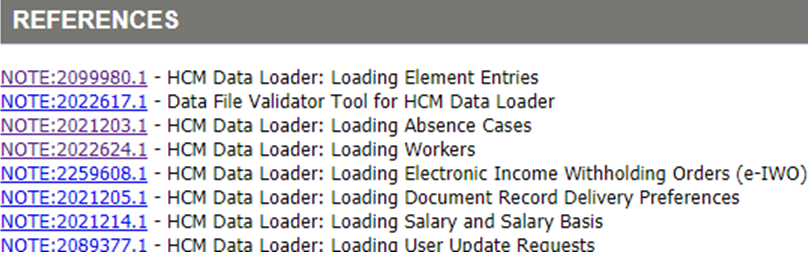

The following image shows an example of the reference XLS files for the Doc ID: 2020600.1 business objects documentation ID:

3. 3Place all the XLS files in the writer directory under the schema directory that you specify in the connection property.
4. 4If you choose to use a flexfield, which is a custom field, to write data to the Oracle HCM Cloud application, you must provide support for flexfields in Oracle HCM Cloud Connector.
For more information about how to provide support for flexfields in Oracle HCM Cloud Connector, see http://psv28cmsmas1:7000/howto/6/Pages/20/519482.aspx.
