Click the Connections tab to view analytics for the connections in the organization.
Each time a connection is accessed, Operational Insights logs the connection details on the Connections tab. The information on the tab is updated every hour.
Operational Insights groups the connections in your organization based on the connector type. In the Connector Type area, Operational Insights shows the number of active and the number of idle connections of each type. An active connection was used to run at least one job in the last 33 days. An idle connection was not used to run a job in the last 33 days.
By default, Operational Insights displays details for the most common connector type in your organization. To view details about the connections of a specific type, click the connector type in the Connector Type area. The No. of Connections area displays the number of active and idle connections for the connector type. Click a number to view aggregated details of the active connections in the Connections table from the last 24 hours. Click the connector type again to deselect it and view details for all connections accessed in the last 24 hours.
Click the number of active connections to view connection usage trends on the Connection Usage Trend area. You can select up to five connections from the Connections table to view. View connection usage data on the Rows Read and the Rows Written charts according to time duration from one day through one month.
You can view up to 16 connector types at a time. To select the connector types to view, click View More.
You can apply filters to see connections in a specific runtime environment or connections that use a specific Secure Agent.

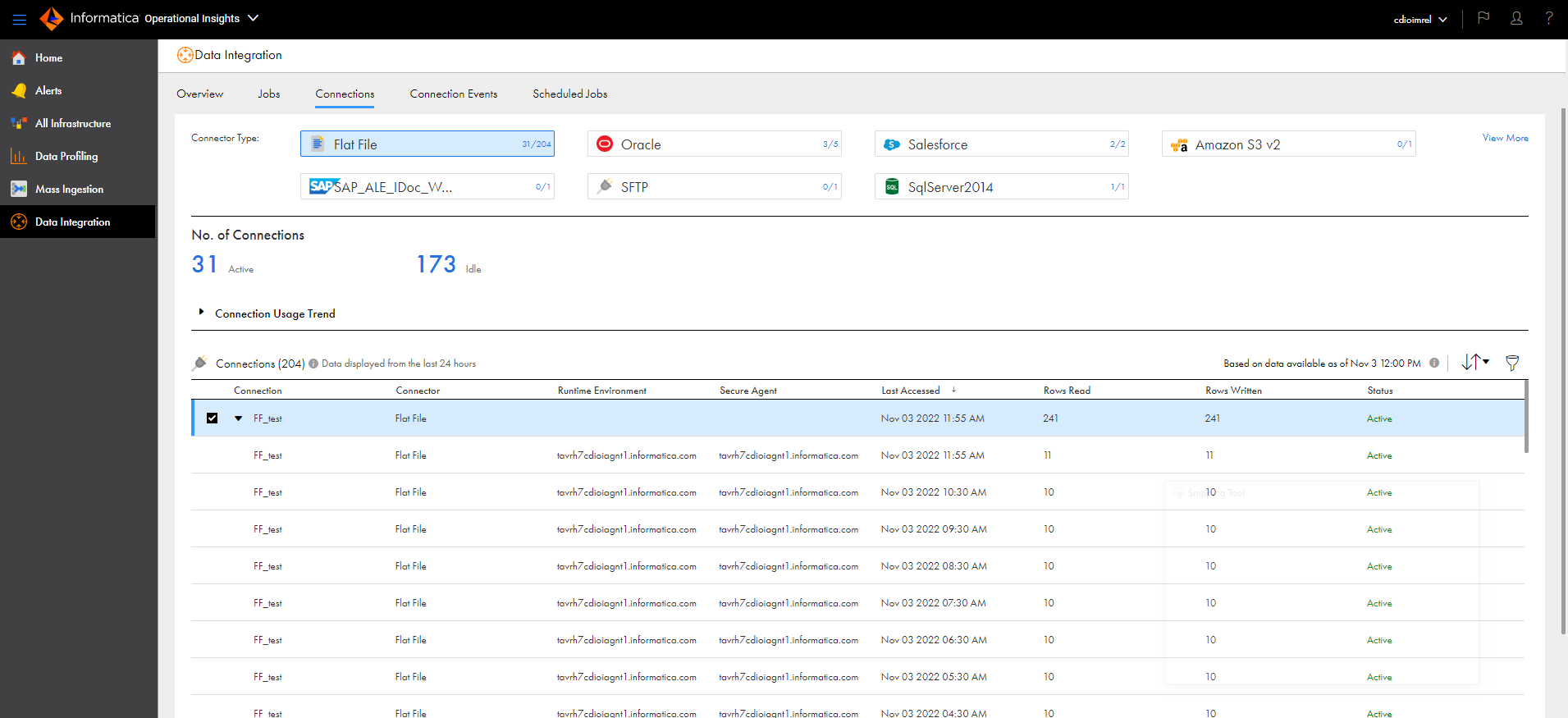

The following image shows the Connections tab filtered to show flat file connections:
