Operational Insights > Part II: Monitoring Informatica Intelligent Cloud Services > Monitor Informatica Intelligent Cloud Services Application Integration > View incoming API calls


View incoming API calls

Click the APIs tab under the Usage tab to view analytics related to API calls. You can view the number of daily and cumulative incoming API calls, and also analyze the number of incoming API calls based on processes and runtime environments. The count also includes the incoming API calls from scheduled processes and event-based processes.
The panels on the APIs tab show the API calls from parent processes only and do not include the API calls from subprocesses. The panels exclude processes that were suspended at any point of time in their lifecycle.
You can use the following panels to view incoming API call analytics:
Daily and Cumulative Incoming API Calls
The Daily and Cumulative Incoming API Calls panel shows the number of daily and cumulative incoming API calls. By default, the panel shows information for the current month and all runtime environments.
You can use the Daily and Cumulative Incoming API Calls panel to assess whether there is a surge or dip in the incoming API calls and accordingly plan for peak traffic.

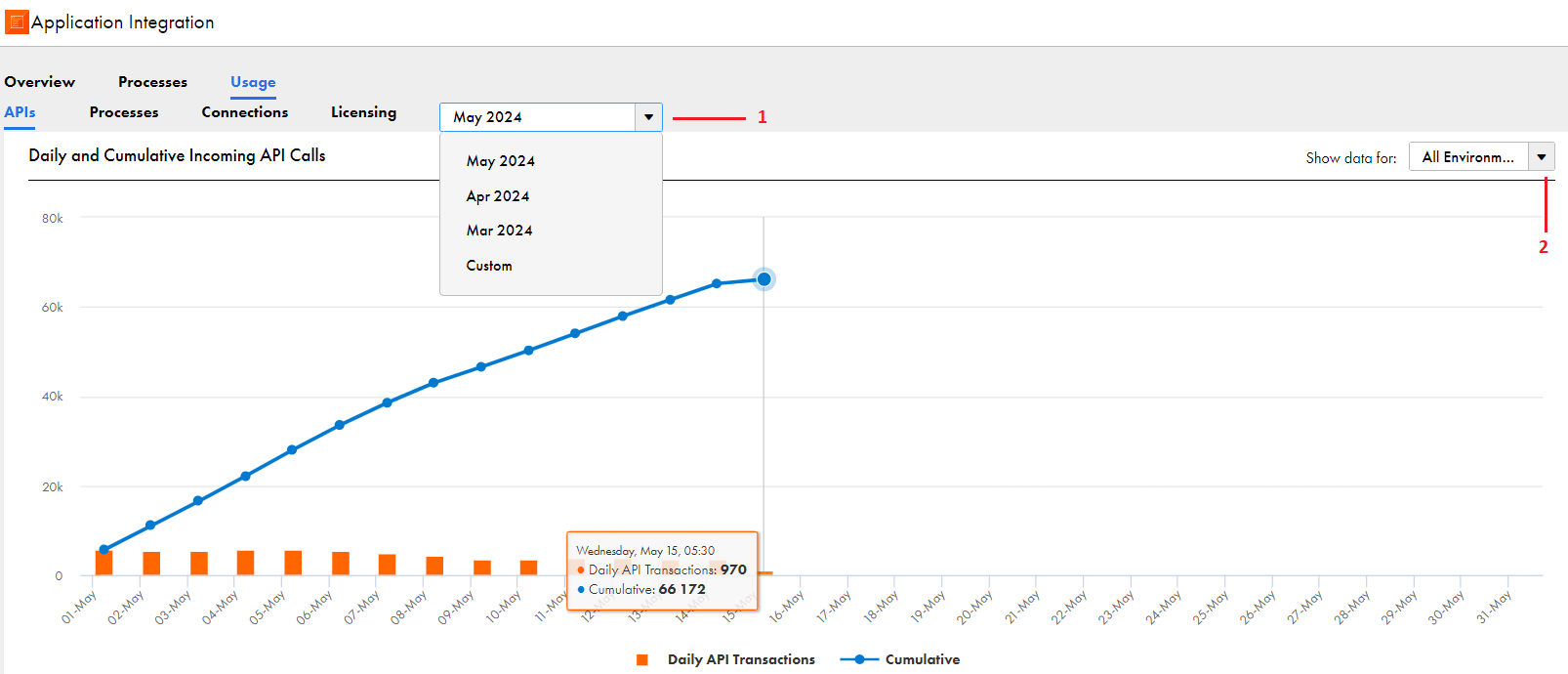

The following image shows the Daily and Cumulative Incoming API Calls panel:
The Daily and Cumulative Incoming API Calls panel shows the number of daily and cumulative incoming API calls for a selected month and runtime environment or runtime environment category.
1. From the list, select the month for which you want to view the daily and cumulative incoming API calls. You can select the current month, one of the preceding 2 months, or a custom date range. If you select the Custom option, you can select a duration of 1 month in the past 13 months.
2. From the list, select the runtime environment or runtime environment category for which you want to view the daily and cumulative incoming API calls. You can select one of the following values:
Hover over a bar or a point in the trend line of the chart to view the number of daily and cumulative incoming API calls.
Incoming API Calls by Process
The Incoming API Calls by Process panel shows the number of daily incoming API calls for a selected process or process category. By default, the panel shows information for the current month and the top 5 processes with the most incoming API calls.
You can use the Incoming API Calls by Process panel to find important processes that might need better optimization than other processes.

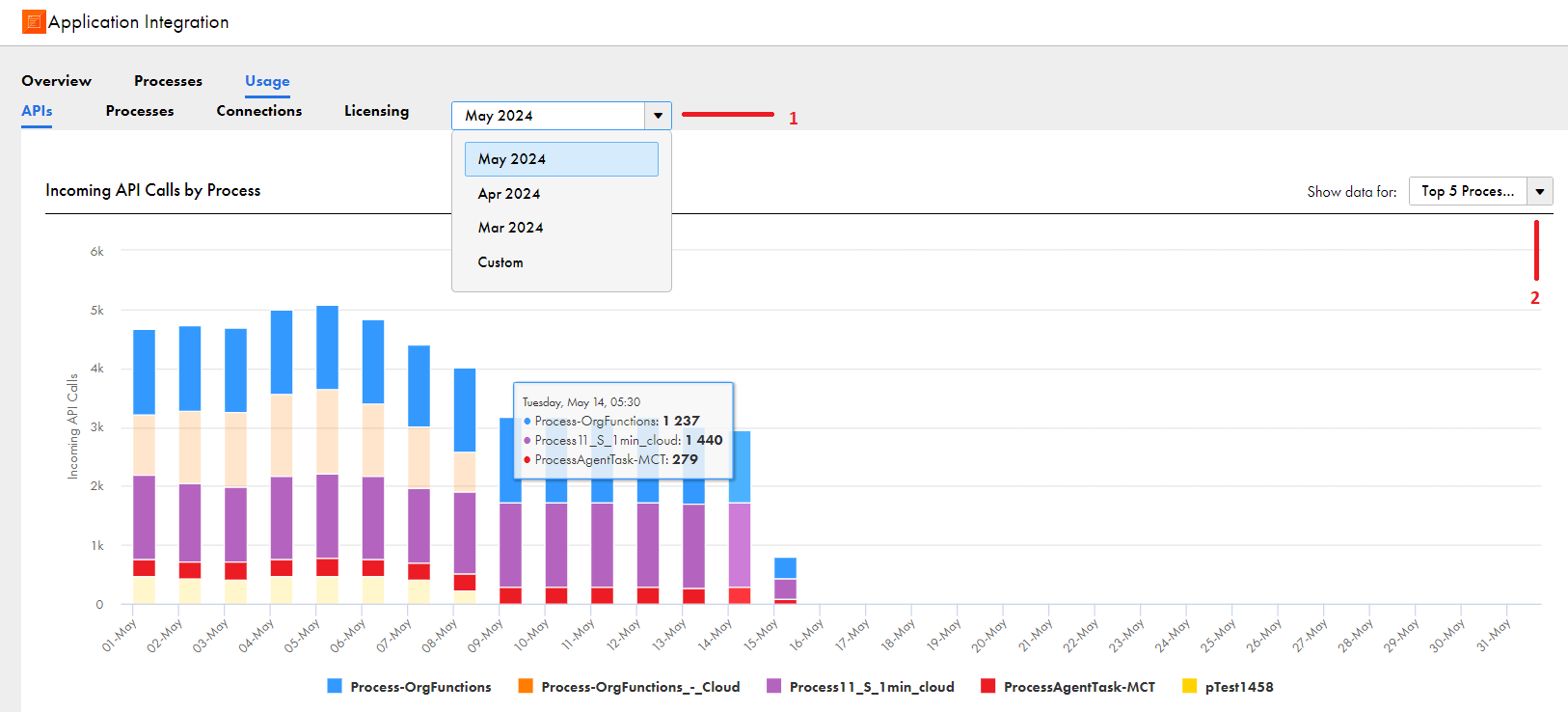

The following image shows the Incoming API Calls by Process panel:
The Incoming API Calls by Process panel shows the number of daily incoming API calls for a selected month and process or process category.
1. From the list, select the month for which you want to view the daily incoming API calls. You can select the current month, one of the preceding 2 months, or a custom date range. If you select the Custom option, you can select a duration of 1 month in the past 13 months.
2. From the list, select a process or process category for which you want to view the daily incoming API calls. You can select one of the following values:
Hover over a bar in the chart to view the number of daily incoming API calls for the specified process or process category.
Incoming API Calls by Runtime Environment
The Incoming API Calls by Runtime Environment panel shows the number of daily incoming API calls for a selected runtime environment or runtime environment category. By default, the panel shows information for the current month and the top 5 runtime environments with the most incoming API calls.
You can use the Incoming API Calls by Runtime Environment panel to assess the load on different runtime environments and perform load balancing or increase the Secure Agent capacity.

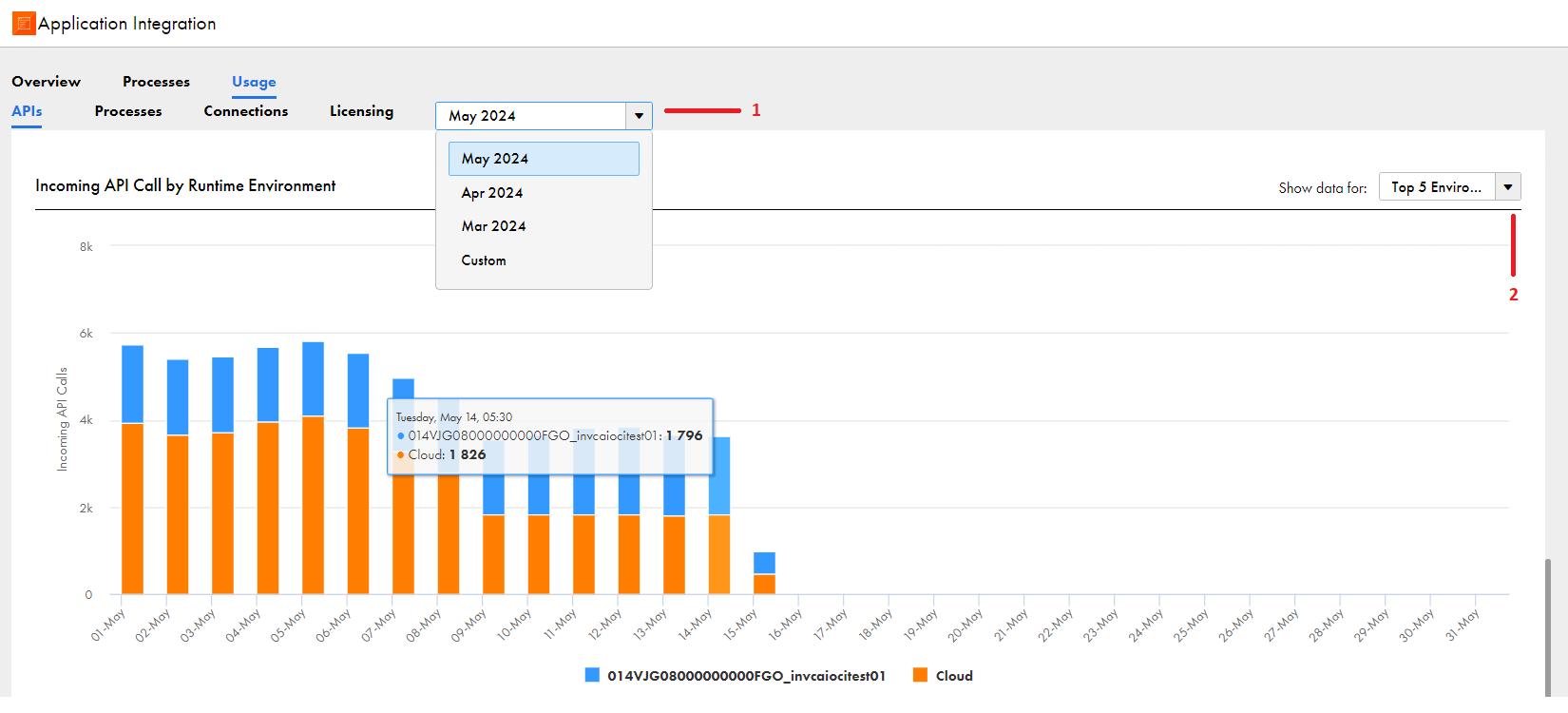

The following image shows the Incoming API Calls by Runtime Environment panel:
The Incoming API Calls by Runtime Environment panel shows the number of daily incoming API calls for a selected month and runtime environment or runtime environment category.
1. From the list, select the month for which you want to view the daily incoming API calls. You can select the current month, one of the preceding 2 months, or a custom date range. If you select the Custom option, you can select a duration of 1 month in the past 13 months.
2. From the list, select a runtime environment or runtime environment category for which you want to view the daily incoming API calls. You can select one of the following values:
Hover over a bar in the chart to view the number of daily incoming API calls by runtime environment.
