Migrating from Earlier Versions
Required Reset for Process Developer Perspectives
If you maintain your existing Workspace when you upgrade Process Developer, we recommend the following best practices so that you can take advantage of new features:
- •Reset both of the Process Developer perspectives. From the Window menu, select Reset Perspective for the perspective in focus.
- •Delete the current server configuration and add a new server. The Process Developer embedded server runs from a plug-in that includes version details. Each time you upgrade to a new version, you must delete the old server configuration by navigating to Window > Preferences > Server > Runtime Environments and select Remove to delete Process Developer Embedded Server. Then select Add from this same dialog to install a new server runtime environment.
Migrating from Process Developer Versions Prior to 9.0
There are a few changes to be aware of for new versions of Process Developer.
- •Existing BPEL processes have an associated visual layout file that includes all layout and annotation information (.vbpel files). New BPEL files contain this information, eliminating the vbpel file and making it easier to move BPEL files to another location without losing annotations. To delete the vbpel file for existing processes, open and save your older processes. This is not required. This feature does not apply to BPEL 1.1 processes or processes designed in the Classic style.
- •The Process Editor palette offers a choice of BPMN-Centric (the default) or the existing BPEL-Centric stylesheet. Existing processes can be opened with either stylesheet with the exact same results. To use the BPEL-Centric palette, change the Layout Preference.
- •You can add an XQuery nature to existing projects to take advantage of the XQuery editing and runtime tools. Right-mouse click on a project and select Add XQuery Nature.
- •POJO (and XQuery) custom functions can be listed in the Expression Builder and deployed in your deployment contribution. There is no longer any function context set up required for new POJO custom functions.
- •If you have existing XQuery functions, be sure to read the Release Notes (elsewher in this help) for possible changes you may need to make to your functions.
- •A newly generated B-unit ant script contains targets and parameters for code coverage. You can manually add these ant tasks to your existing B-unit ant scripts. You can also add XQuery modules as B-unit resources.
- •You can migrate running process instances to run against a new process version. As a first step, open your existing process, modify it slightly by moving an activity a bit (mark the process as dirty), and save the process without making any other changes. Update the PDD to enable the Migrate Version option. Then deploy the contribution that contains the unchanged process structure and updated PDD. After you have deployed the Version 9 contribution, you can then make structural changes to your process and migrate running process instances to the new version.
- •Version 9 uses a newer version of the Saxon XSL parser that does not support the undocumented and non-standard @value attribute for the <xsl:param> element. If your older B-unit tests or other XSL functions contained this attribute, they cannot be parsed by Saxon. To correct this problem, use an expression such as select= instead of value=.
Migrating from Process Developer Versions Prior to 8.0.x
There are a few changes to be aware of for new versions of Process Developer.
- •Deployments from prior versions are shown as legacy contributions on the server. Although there is no change in how your processes run on the server, we highly recommend that you delete old BPRs and redeploy your processes and resources to take advantage of contribution features. See Converting Legacy Deployments to Contributions.
- •In the PDD, there are wording changes for Process Version details to match the new contribution states. Effective date is now Online date and Expiration date is now Offline date.
- •There is a new Swimlane annotation in the Process Editor's tool palette (BPMN style only). To view this new Palette item, be sure to create a new workspace or delete your current Palette customization file.
- •You can no longer import a WSDL declaration into your BPEL from the file system. You must import the WSDL into your project or set project references to include another project. Existing file system declarations are converted to URLs.
- •The .avcconfig file for Process Central has been updated, but older files are compatible with Process Central. The new file allows for custom columns in Process Central.
Opening and Using BPEL4WS 1.1 Processes
If you have BPEL processes created in earlier versions of Process Developer, they conform to the BPEL4WS 1.1 specification. You can open and work with BPEL 1.1 processes. Process Developer recognizes the version of BPEL in a process and opens in the appropriate mode: BPEL4WS 1.1 or WS-BPEL 2.0.
In BPEL4WS 1.1 mode, Process Developer displays the palette and menu options that support the BPEL4WS 1.1 specification.
By default, Process Developer is set to launch in WS-BPEL 2.0 mode. You can set a preference to open Process Developer in BPEL4WS 1.1 mode, if desired. For details, see Process Developer Preferences.
Migrating Processes from BPEL4WS 1.1 to WS-BPEL 2.0
You can migrate any BPEL process you created in earlier versions of Process Developer, or any BPEL4WS 1.1 process, to a WS-BPEL 2.0 process. Doing so gives you access to all the new and updated activities, data manipulation, and handlers supported.
You can migrate your BPEL 1.1 processes as follows:
- 1. From the Project Explorer, double-click a BPEL file to open it in the Process Editor.
- 2. Select File > Save As.
- 3. In the Save As dialog, select another file location, if desired, and rename your BPEL 2.0 file if you do not want to overwrite the BPEL 1.1 file.

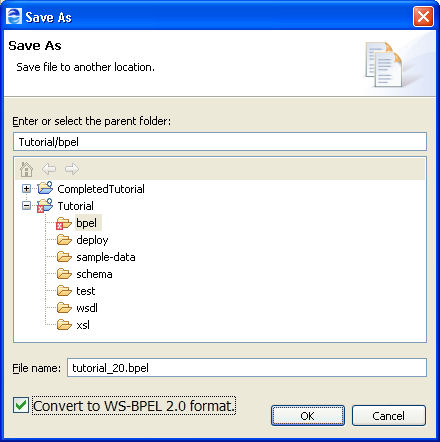

- 4. Select the checkbox next to Convert to WS-BPEL 2.0 format, as shown in the example, and select OK.
Your BPEL 2.0 process opens in the Process Editor, and Process Developer changes to WS-BPEL 2.0 mode.
All of your preference settings are preserved.
Conversion issues:
- •Fault variable. The variable used in a catch activity is accessible only in the catch activity. In BPEL 1.1 the variable was declared in the enclosing scope. It is no longer available anywhere except within the catch. If a 1.1 process was using the fault var outside of the catch, the static analysis will report an error.
- •OnEvent variable. Same issue as above. The variable is now declared within the OnEvent activity, not in the enclosing scope. The variable is accessible only to the OnEvent and not to the scope.
- •Queries in copy operations. The absolute path used in 1.1 processes is now a relative path. However, a query using an XPath expression beyond a simple path to data may not get converted. A query that cannot correctly convert is left in get Variable Data() syntax. Process Developer warns you that the expression is not WS-BPEL 2.0 compliant.
Custom Function Pick Lists
The XML format for custom function pick lists has changed for Process Developer, for all process versions. You must update expression builder pick list files as follows.
The old syntax is:
<pickList xmlns="http://active-endpoints.com/FunctionBuilderSchema">
<pickHeader ...>
<pickItem pickDisplay="ncname"
syntax="namespace:ncname"
caretOffset="colnum-expr"
hoverHelp="prefix|namespace:ncname Description:ncname"/>*
</pickHeader>
</pickList>
The new syntax is:
<pickList xmlns="http://schemas.active-endpoints.com/picklist/
2006/08/ExpressionBuilder_FunctionsPickList_Schema.xsd">
<pickHeader ...>
<pickItem pickDisplay="NCName"
syntax="${prefix}:NCName(${caret})"
hoverHelp="prefix|namespace:NCName Description: NCName"/>*
</pickHeader>
</pickList>
If your Process Developer installation uses an existing workspace, your already-loaded custom function picklist will continue to work. However, you can not reload it without receiving a validation error.
Taking Advantage of SOAP 1.2 Port Binding Version 7.x
Process Developer Version 7 and later supports endpoint reference port bindings for SOAP 1.1 and SOAP 1.2. All processes prior to Version 7 supported only SOAP 1.1. If you want to take advantage of the SOAP specification upgrade, SOAP 1.2 clients should use the new SOAP 1.2 URL when addressing My Role endpoints, namely:
http://host:port/active-bpel/services/soap12/MyRoleService
Partner role services can be invoked with SOAP 1.2 bindings too.
