Creating a Web Service Consumer Transformation

You can create a reusable or non-reusable Web Service Consumer transformation. Reusable transformations can exist in multiple mappings. Non-reusable transformations exist within a single mapping.
You can create Web Service Consumer transformations for a SOAP 1.1 binding and a SOAP 1.2 binding from a single WSDL object.
    1. To create a transformation, use one of the following methods:
    Option
    Description
    Reusable
    Select a project or folder in the Object Explorer view. Click File > New > Transformation. Select the Web Service Consumer transformation and click Next.
    Non-reusable
    In a mapping or mapplet, drag a Web Service Consumer transformation from the Transformation pallette to the editor.
    The New Web Service Consumer Transformation dialog box appears.
    2. Browse and select a WSDL data object to define the web service request and response messages.
    If the WSDL is not in the repository, you can import the WSDL from the New Web Service Consumer Transformation dialog box.
    3. Browse and select an operation from the WSDL.
    You can choose an operation that has a SOAP 1.1 binding or SOAP 1.2 binding.
    4. Click Next.

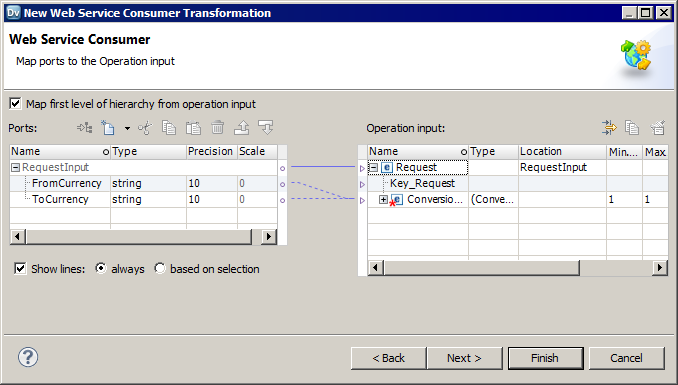

    The Map Ports to the Operation Input screen appears. The Ports area shows the transformation input groups and input ports. The Operation Input area shows the request message hierarchy.
    The Map Ports to the Operation Input screen of the New Web Service Consumer Transformation dialog box shows the operation input hierarchy. The Ports area on the left displays the transformation input ports. The Operation Input area on the right displays the nodes that are mapped to input ports.
    5. Define the input groups and input ports and map the input ports to operation input nodes.
    6. Click Next.

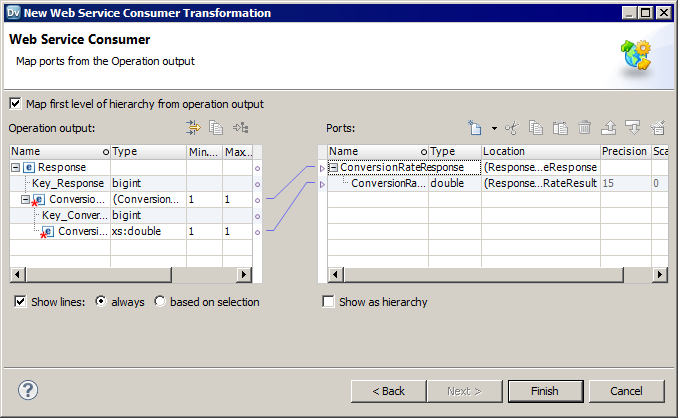

    The Map Ports from the Operation Output screen appears. The Operation Output area shows the response message hierarchy. The Ports area shows the transformation output groups and output ports.
    The Map Ports from the Operation Output screen of the New Web Service Consumer Transformation dialog box shows the operation output hierarchy. The Operation Output area on the left displays the nodes that the web service returns to the transformation. The Ports area is on the right displays the transformation output ports that are mapped from the nodes.
    7. Define the output groups and output ports, and map the operation output nodes to the output ports.
    8. Click Finish.
    9. Click the Advanced view to configure the transformation properties and the web services connection.
