SAP HANA Connector > Mappings and mapping tasks with SAP HANA Connector > Creating an SAP HANA mapping with modelling views


Creating an SAP HANA mapping with modelling views

You can use an SAP HANA object as a source in mappings and mapping tasks. Perform the following steps to create a mapping:
    1Click the Data Integration service.
    2Click New > Mappings > Create.
    3Click Source in the Design pane.
    4Click Source in the Properties pane.
    5Select a connection.
    6Select the Source Type as Single Object.
    7Click Select to select the object name.
    The Select Source Object page appears.
    8 Select a source object from the list of objects.

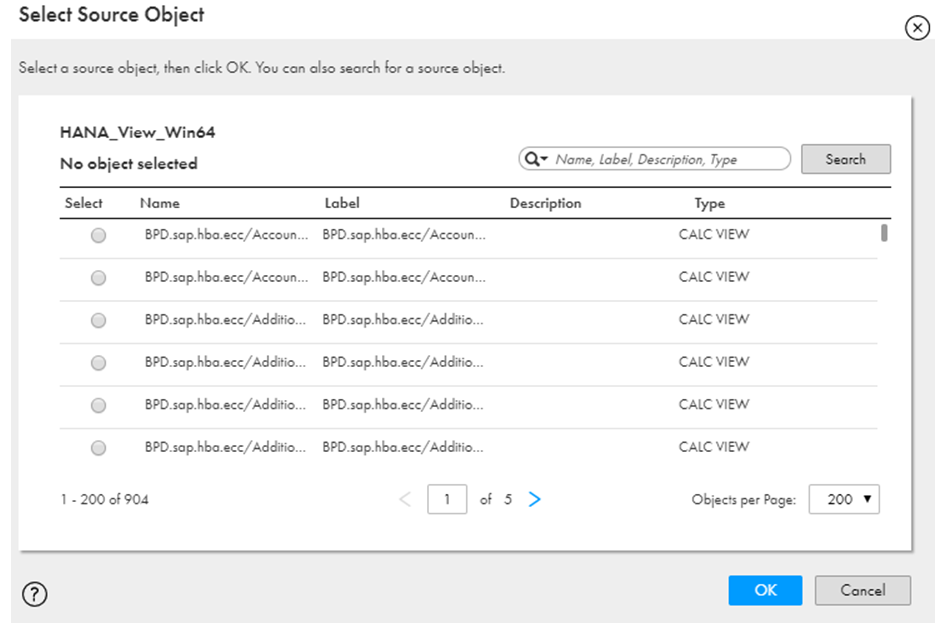

    A list of objects is shown in the following image:
    The image shows a list of source objects.
    The SAP HANA database modelling views for the source object that you created are displayed under the Type column. An analytical view is displayed as OLAP VIEW, an attribute view is displayed as JOIN VIEW, and a calculation view is displayed as CALC VIEW.
    9Click OK.
    10Add objects to the mapping as needed.
    11Save and run the mapping.
