The Data Integration installer can help you create a runtime environment on Amazon Web Services (AWS). The runtime environment you create is a Secure Agent group that contains one Secure Agent.
When you create a runtime environment on AWS, you create a new stack where the Secure Agent is deployed. You can create the stack in a new or existing virtual private cloud (VPC). The installer creates an Amazon Elastic Compute Cloud (EC2) instance within the VPC.
To create a runtime environment, you must have a subscription with AWS that includes create, modify, and delete privileges for the following resource types:
•EC2 instances
•Elastic IP addresses
•Elastic network interfaces
•Internet gateways
•Route tables
•Security groups
•Subnets
•VPCs
You must also have read and launch permissions for machine images.
1On the Home page, click Add a runtime environment.
2On the Runtime Environments page, click New Runtime Environment.
3Select Amazon Web Services.
4Click Next.
5On the Environment Configuration page, copy the install token.
The install token is valid for 24 hours and can't be reused.
6 Choose whether to create the runtime environment on an existing or new VPC.
7Click Continue Configuration in AWS.
The AWS Sign in screen opens in a new browser tab.
8Sign in to your AWS account.
The Quick create stack page opens.
9In the Stack name area, enter a stack name.
10In the Parameters area, under Network Configuration, configure the following properties based on whether you're using an existing VPC or a new VPC.
- For an existing VPC, configure the following properties:
Property
Value
VPC ID
Select the ID for the VPC where you want to deploy the Secure Agent.
Subnet ID
Enter or select a subnet within the VPC.
Allowed Remote Access CIDR
Enter the CIDR block that specifies the IP addresses where the Secure Agent can be installed.
CIDR (Classless Inter-Domain Routing) is a method for allocating IP addresses. It configures a network rule to allow remote access to the Secure Agent. The "/x" portion of the address determines how many IP addresses are available in the subnet, for example: 108.124.81.10/32
- For a new VPC, configure the following properties:
Property
Value
Availability Zones
Select the availability zone for your region.
VPC CIDR
Enter the CIDR block that specifies the IP addresses where you want to create the VPC.
Subnet CIDR
Enter the CIDR block that specifies the IP addresses for the subnet in the availability zone that you selected.
Allowed Remote Access CIDR
Enter the CIDR block that specifies the IP addresses where the Secure Agent can be installed.
11Under Amazon EC2 Configuration, configure the following properties:
Property
Value
Key Pair Name
Enter the name of an existing EC2 key pair to enable external access to the EC2 instance. Corresponding key pair files are required for SSH access to the server.
Instance Type
Select the instance type for the EC2 instance or accept the default.
Default is m5.xlarge.
Enable Elastic IP Addressing
Choose whether to assign elastic IP addresses to the EC2 instance or accept the default.
Default is no.
12Under Informatica Intelligent Data Management Cloud (IDMC) Account Details, configure the following properties:
Property
Value
IDMC POD Master URL
Accept the default value for the IDMC POD Master URL. This is the URL that you use to access Informatica Intelligent Cloud Services.
Warning: Changing this URL can result in stack deployment failure.
IDMC User Name
Enter your Informatica Intelligent Cloud Services user name.
IDMC User Token
Paste the install token that you copied.
If you forgot to copy the install token, you can switch back to Informatica Intelligent Cloud Services and generate a new one.
Secure Agent Group Name
Accept the default value for the Secure Agent group name. This is the name of the runtime environment that you're creating.
13Click Create stack.
It takes a few minutes to create the stack. Be sure to monitor the stack creation and address any issues that might occur.
When the stack is created successfully, the EC2 Instance status changes from CREATE_IN_PROGRESS to CREATE_COMPLETE.
14In Informatica Intelligent Cloud Services, on the Environment Configuration page, click Finish.
IICS creates your runtime environment and displays it on the Runtime Environments page.
It takes a few minutes for the Secure Agent services to start. When the Secure Agent is ready to use, the status changes from "Pending Environment Set Up" to "Up and Running." You might need to refresh the page to see the updated status.
Troubleshooting deployment failure on AWS
My runtime environment deployment was unsuccessful, but the runtime environment still appears on the Runtime Environments page. How can I delete it?
When you create a runtime environment on AWS and stack creation fails or the deployment process was unsuccessful, Data Integration creates an empty Secure Agent group. The empty Secure Agent group appears on the Runtime Environments page in Data Integration with the status "Pending Environment Set Up." It also appears on the Runtime Environments page Administrator with the status "No Secure Agents."
In Data Integration, the empty group is automatically removed from the page after 24 hours.
To remove the empty group in Administrator, complete the following steps:

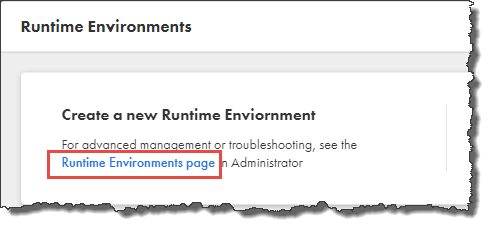

1On the Runtime Environments page in Data Integration, click the Runtime Environments page link, as shown in the following image:
The Administrator service opens in a new browser tab.
2Switch to Administrator and locate the empty group on the Runtime Environments page.
