Catalog Administrator Guide > Enterprise Data Catalog Concepts > Data Preview, Preparation and Provisioning


Data Preview, Preparation and Provisioning

An effective data catalog enables business intelligence users and data scientists to locate, preview, prepare, and provision data for ad-hoc analysis.
Data provisioning is the process of moving data from a source in the catalog to a target for further processing. You can preview data for table and file asset types, and create provisioning tasks in Enterprise Data Catalog. Preview a sample of the source data before you create a provisioning task.
Data preparation is the process of combining, cleansing, transforming, and structuring data from one or more data assets so that data is ready for analysis.
Note: You can prepare data for assets such as tables and views in relational resources.

Prerequisites

Data Preview and Provisioning Prerequisites

Before you enable the data preview and provisioning capability, make sure that the following prerequisites are met:
  1. 1. Ensure that you have access to the Informatica Intelligent Cloud Services account as an administrator.
  2. 2. Create an Informatica Intelligent Cloud Services organization.
  3. 3. Create the necessary database connections in Informatica Intelligent Cloud Services for the sources and targets.
  4. 4. Ensure that you have created the EdcProvisionMapping mapping using the Copy data into an existing target integration template in Informatica Intelligent Cloud Services.
  5. 5. Configure the LdmCustomOptions.enableDataProvision and LdmCustomOptions.provision.ics.master.app.url custom properties in the Catalog Service for data provisioning in Informatica Administrator console.
  6. 6. Add the Informatica Intelligent Cloud Services organizations to the Catalog Administrator tool.

Data Preparation Prerequisites

Before you enable data preparation, verify the following prerequisites:
  1. 1. Ensure that you have access to the Informatica Intelligent Cloud Services account as an administrator.
  2. 2. Create an Informatica Intelligent Cloud Services organization.
  3. 3. Create the necessary database connections in Informatica Intelligent Cloud Services for the sources.
  4. 4. Configure the LdmCustomOptions.enableDataProvision and LdmCustomOptions.dataprep.app.url custom properties in the Catalog Service for data preparation in the Informatica Administrator tool.
    5. Note: You must enable the LdmCustomOptions.enableDataProvision custom property to view and configure data preparation in the Data Access tab in the Catalog Administrator tool.
  5. 5. Add the Informatica Intelligent Cloud Services organizations in the Catalog Administrator tool.

Data Preview

You can preview a sample of the source data in Enterprise Data Catalog. You might want to preview data before you perform a provisioning task. Preview data to assess the source data before you transfer the data to the target. For example, consider an Oracle source that contains some information about customers, and you want to migrate the data to an Oracle target. Before you move data from source to target, you might want to verify the data in the table and know if the table contains relevant information. To verify the data, you can preview the table and ensure that the table contains relevant columns, such as Address, Phone Number, and other information about the customers.
You can perform data preview for the following sources:
You can preview only table and file assets in the Catalog. Configure data provisioning in Catalog Administrator before you can preview data in the Catalog.
Alternatively, you can preview data for data object using the REST APIs. For more information, see the Preview Data for a Data Object topic in the Enterprise Data Catalog REST API Reference guide.

Data Preview Process

The data preview process involves various configuration steps in the Informatica Intelligent Cloud Services, Informatica Administrator, and Catalog Administrator. The data preview configuration steps are the same as the data provisioning configuration steps.

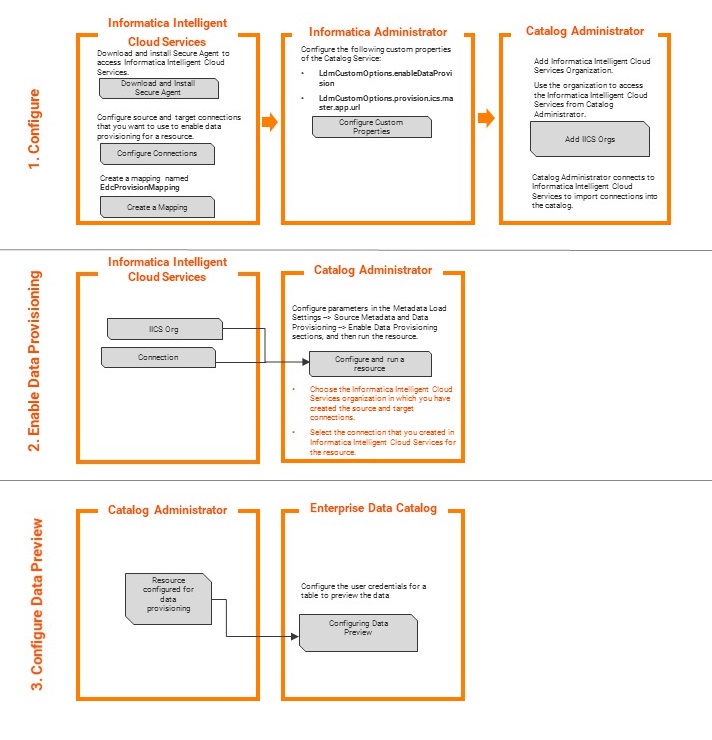

The following image shows the data preview process:
The image displays the steps involved in configuring data preview in Informatica Intelligent Cloud Services, Informatica Administrator, and Catalog Administrator.
  1. 1. Configure. Set up Informatica Intelligent Cloud Services, configure custom properties for data provisioning in Informatica Administrator, and add Informatica Intelligent Cloud Services Organizations (Orgs) to Catalog Administrator.
  2. 2. Enable Data Provisioning. Configure a resource for data provisioning.
  3. 3. Configure Data Preview. Configure data preview for table and file asset types in Enterprise Data Catalog.
Data preview process involves the following steps:
    You configure custom properties for data provisioning in the Informatica Administrator console
    For information about adding custom properties, see the Enable Data Preview, Provisioning and Preparation topic in the Informatica Administrator for Enterprise Data Catalog guide.
    You add Informatica Intelligent Cloud Services Organizations to Catalog Administrator
    You add the organizations to get access to the Informatica Intelligent Cloud Services. Catalog Administrator connects to Informatica Intelligent Cloud Services to import database connections for the source and target. For more information about adding Informatica Intelligent Cloud Services Organizations, see the Adding an Informatica Intelligent Cloud Services Organization topic.
    You enable data provisioning for a resource
    You create a resource and configure the parameters in the Data Access > Enable Data Provisioning section, and run the resource. When you enable data provisioning for the resource, Enterprise Data Catalog fetches source connection information for the data that you want to preview.
    Note: If you want to enable data provisioning for a resource, you must select the same schema name or directory name that you configured for a connection in Informatica Intelligent Cloud Services.
    For more information about enabling data provisioning for a resource, see the Enable Data Provisioning topic.
    You configure the connection properties for the data source in Enterprise Data Catalog
    You specify the database user credentials in the connection properties for the data source, and then preview data.
    For more information about configuring connection properties for the source data, see the Data Preview topic in the Informatica Enterprise Data Catalog User Guide.

Data Provisioning

Data Provisioning is a process of transferring data from the source to target for further analysis and processing. You can provision tables and files to the target. Enterprise Data Catalog uses a mapping and database connections from Informatica Intelligent Cloud Services to perform provisioning of data. A mapping is a set of inputs and outputs that represent the data flow between sources and targets. A mapping contains components such as source objects, target objects, and transformations. Enable data provisioning in Catalog Administrator. After you enable data provisioning for a resource, you can create provisioning tasks in Enterprise Data Catalog. You can create provisioning tasks for table and file asset types.
You can perform data provisioning for the following sources:
You can perform data provisioning for the following targets:

Data Provisioning Process

The data provisioning process involves various configuration steps in the Informatica Intelligent Cloud Services, Informatica Administrator, and Catalog Administrator.

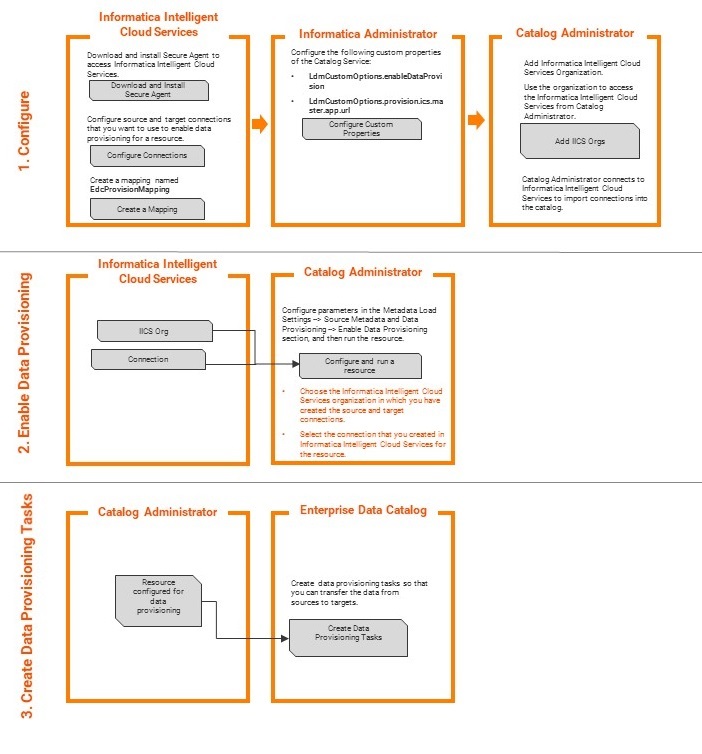

The following image shows the data provisioning process:
The image displays the steps involved in configuring data provisioning in Informatica Intelligent Cloud Services, Informatica Administrator, and Catalog Administrator.
  1. 1. Configure. Set up Informatica Intelligent Cloud Services, configure custom properties for data provisioning in Informatica Administrator, and add Informatica Intelligent Cloud Services Organizations (Orgs) to Catalog Administrator.
  2. 2. Enable Data Provisioning. Configure a resource for data provisioning.
  3. 3. Create Data Provisioning Tasks. Create data provisioning tasks for assets in the resource that is configured for data provisioning in Enterprise Data Catalog.
The Data Provisioning process involves the following steps:
    You configure custom properties for data provisioning in Informatica Administrator console
    For information about adding custom properties, see the Enable Data Preview, Provisioning and Preparation topic in the Informatica Administrator for Enterprise Data Catalog guide.
    You add Informatica Intelligent Cloud Services Organizations to Catalog Administrator
    You add the organizations to get access to the Informatica Intelligent Cloud Services. Catalog Administrator connects to Informatica Intelligent Cloud Services to import database connections for the source and target. For more information about adding Informatica Intelligent Cloud Services Organizations, see the Adding an Informatica Intelligent Cloud Services Organization topic.
    You configure and run a resource in Catalog Administrator
    You create a resource and configure parameters in the Metadata Load Settings > Source Metadata and Data Access > Enable Data Provisioning section, and then run the resource.
    Note: If you want to enable data provisioning for a resource, you must select the same schema name that you configured for a connection in Informatica Intelligent Cloud Services.
    For more information about enabling data provisioning for a resource, see the Enable Data Provisioning topic.
    You create data provisioning tasks in Enterprise Data Catalog
    You configure the source and target connection information of the database to provision data.
    For more information about creating data provisioning tasks, see the Creating Provisioning Task topic in the Informatica Enterprise Data Catalog User Guide.
Alternatively, you can perform this task using the REST APIs. For more information, see the Data Provisioning REST APIs and List All the Provisioning Tasks topics in the Enterprise Data Catalog REST API Reference guide.

Data Preparation

Data preparation is the process of combining, cleansing, transforming, and structuring data from one or more data assets so that data is ready for analysis. Enterprise Data Catalog uses database connections from Informatica Intelligent Cloud Services to prepare data. After you enable data preparation for a resource, you can prepare data for assets types such as tables and views.
You can configure data preparation for all relational resources in Enterprise Data Catalog.

Data preparation process

The data preparation process involves various configuration steps in the Informatica Intelligent Cloud Services, Informatica Administrator, and Catalog Administrator.
The Data Preparation process involves the following steps:
    Configure custom properties for data preparation in the Informatica Administrator tool
    For information about adding custom properties, see the Enable Data Preview, Provisioning and Preparation topic in the Informatica Administrator for Enterprise Data Catalog guide.
    Add Informatica Intelligent Cloud Services Organizations in the Catalog Administrator tool
    Add the Informatica Intelligent Cloud Services organizations in the Catalog Administrator tool. The Catalog Administrator tool connects to Informatica Intelligent Cloud Services to import database connections for the source and target. For more information about adding Informatica Intelligent Cloud Services Organizations, see the Adding an Informatica Intelligent Cloud Services Organization topic.
    Configure and run a resource in the Catalog Administrator tool
    Create a resource and configure parameters in the Metadata Load Settings > Source Metadata and Data Access > Enable Data Preparation section, and then run the resource. For more information about the data preparation properties, see the Enable data preparation topic.
    Prepare data in Enterprise Data Catalog
    Open the required asset in the Catalog tool, and prepare the data.
    For more information about data preparation, see the Preparing data topic in the Informatica Enterprise Data Catalog User Guide.
