After configuring your host environment, you can set up and deploy your elastic runtime environment.
Service and connector assignments
You can assign services and connectors at the time of elastic runtime creation or later on.
Create an elastic runtime environment
The installation wizard guides you through to creating your elastic runtime environment. Note that creating the environment is just one step within the entire deployment procedure.
Deploy an elastic runtime environment
Step-by-step process to deploy your elastic runtime environment.
Service and connector assignment for elastic runtime environments
Your organization can enable and disable specific Informatica Intelligent Cloud Services and connectors that your organization is licensed to use for an elastic runtime environment.
You can perform the following actions:
Enable or disable Informatica Intelligent Cloud Services for an elastic runtime environment.
You can enable services such as Data Integration or Application Integration when you want the elastic runtime environment to run the tasks, processes, and product features associated with the service. By default, when you create an elastic runtime environment, it contains no services or connectors. You then enable your licensed services and connectors as required.
Note: While in preview, the elastic runtime environment only works with the Data Integration service.
Some services require other services or connectors. If you enable a service that requires other services, Informatica Intelligent Cloud Services automatically enables the required services. For example, you enable Data Quality in an elastic runtime environment. Data Quality requires Data Integration. When you enable Data Quality, Informatica Intelligent Cloud Services automatically enables Data Integration as well.
Disable services when you do not want the elastic runtime environment to run the tasks, processes, or product features associated with the service. Any task, process, or product feature that uses the elastic runtime environment no longer runs.
For more information about the Secure Agent services that each service requires, see Secure Agent services.
Enable or disable connectors for an elastic runtime environment.
You can enable specific connectors when you want the elastic runtime environment to be able to communicate with cloud and on-premise applications, platforms, databases, and flat files.
Disable connectors when you do not want the elastic runtime environment to download the packages associated with the connectors. When you disable a connector, any connection that uses the elastic runtime environment no longer runs.

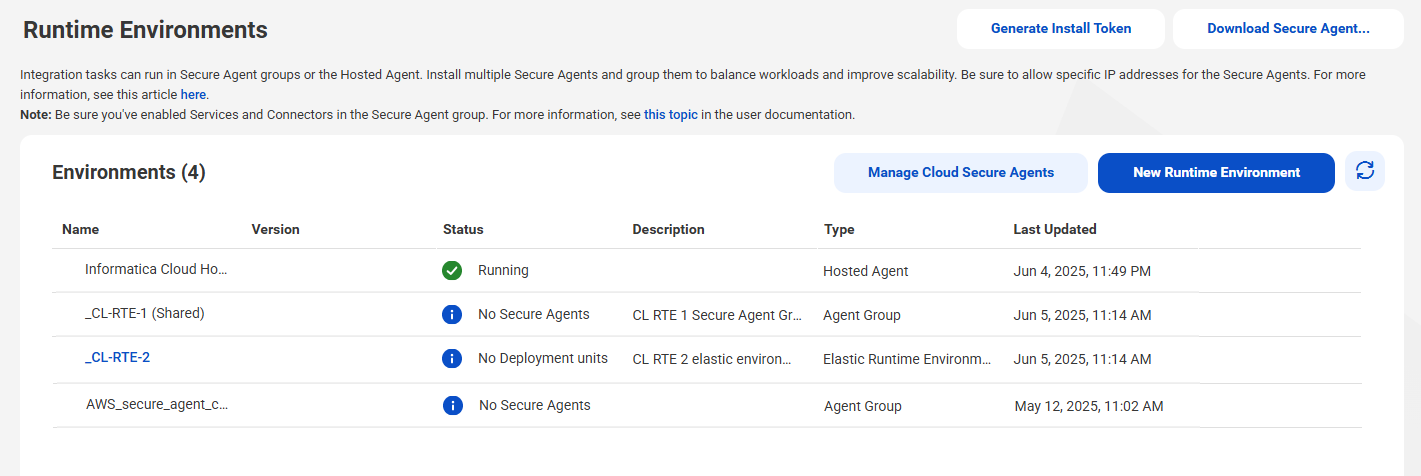

Enable or disable services and connectors for an elastic runtime environment on the Runtime Environments page:
Service assignment guidelines
Use the following guidelines when you enable and disable services for an elastic runtime environment:
• Before you disable a service, verify that no connection, task, or process that is using the elastic runtime environment requires the service.
If a connection, task, or process uses the elastic runtime environment and you disable a required service, the task or process can't run. For example, the connection for a mapping source uses runtime environment RuntimeEnv1. If you disable Data Integration Server on RuntimeEnv1, the mapping task fails at run time.
• Before you disable a service, verify that no feature that uses the elastic runtime environment requires the service.
If a feature uses the elastic runtime environment and you disable a required service, the feature can't be used. For example, the runtime environment for Enterprise Data Catalog integration is set to RuntimeEnv2. If you disable EDC Search Service on RuntimeEnv2, you can no longer perform data catalog discovery.
• When you create a connection, select a runtime environment in which the required services are enabled.
For example, you want to create an Advanced SFTP connection for a file ingestion and replication task target. When you create the connection, select a runtime environment in which the Mass Ingestion service is enabled.
•If you configure your organization to store connection properties locally, the Data Integration service must be enabled for the elastic runtime environment.
Creating an elastic runtime environment
You can create as many elastic runtime environments as necessary, each with a different configuration.
1In Administrator, select Runtime Environments.
2Click New Runtime Environment.
3Enter the name of your elastic runtime environment.
4Select Elastic Runtime Environment as the environment type.
5Optionally, enter a description for your environment.
6Click Next.
7Select the services and connectors to enable for this runtime environment. By default, no services or connectors are enabled.
8Click Create.
9Enter your environment settings in the Environment Configuration tab. For more information, see Environment configuration.
10Optionally, configure your services in the Service Configuration tab. For more information,, see Service configuration.
Services are designed to work well in their default configurations. You'll need to configure your services only if you're an advanced technical user with specific needs, or you've been directed to change service settings by Informatica Global Customer Support.
Note: While in preview, elastic runtime environments only use the Data Integration Server service.
Environment configuration
Configure specific details about your elastic runtime environment on the Environment Configuration tab.
The environment configuration deals with the infrastructure where the elastic runtime environment containers will be deployed. It also defines how these containers can take inputs (for example, associated EBS storage types and values) and write outputs to locations such as logs.
Configure the Platform Configuration and Advanced Configuration tabs as necessary. You must configure at least your platform.
Note: If you make changes to a cluster that's already deployed, the changes won't take effect until the cluster is redeployed.
Configure the platform
The following table describes the Platform Configuration fields:
Field
Description
Region
Region in which to create the cluster. Use the drop-down menu to view the regions that you can use.
Worker Instance Type
Instance type to host the worker nodes. Use the drop-down menu to view the instance types that you can use in your region.
To verify that the instance type that you select from the drop-down menu is supported in the selected availability zones and your AWS account, refer to the AWS documentation.
Worker Instance Profile
Instance profile to be attached to the worker nodes.
The name must consist of alphanumeric characters with no spaces. You can also include any of the following characters: _+=,.@-
Number of Worker Nodes (Min, Max)
Number of worker nodes in the cluster. Specify the minimum and maximum number of worker nodes.
Worker Node Idle Timeout
Amount of idle time before before a worker node times out.
Enable High Availability
Select this check box to indicate that the cluster is highly available.
When you enable high availability, the Subnets IDs field is displayed.
For more information about high availability, refer to the Kubernetes documentation.
Subnets IDs
When high availability is enabled, enter two subnet IDs from different availability zones.
This field doesn't appear if high availability isn't enabled.
EBS Volume Size
Size of the EBS volume to attach to a worker node for temporary storage during data processing.
The following table describes the System Storage fields. Application and Secure Agent service logs are stored in the system storage:
Field
Description
Type
Only EFS disks are supported.
File System
File system is the file system ID of the EFS disk.
Source Mount
File system path to be mounted in the elastic runtime environment.
Access Point
ID of the Amazon EFS file system access point. The access point ensures isolation for tenants in a multi-tenant EFS file system.
Once an access point is set up, you can configure the file system policy to allow access only to the access point for the IAM role.
The following table describes the Data Storage fields. Data storage is where you store your environment-specific configuration input files for tasks that execute in the elastic runtime environment:
Field
Description
Type
Only EFS disks are supported.
File System
File system is the file system ID of the EFS disk.
Source Mount
File system path to be mounted in the elastic runtime environment.
Access Point
ID of the Amazon EFS file system access point. The access point ensures isolation for tenants in a multi-tenant EFS file system.
Once an access point is set up, you can configure the file system policy to allow access only to the access point for the IAM role.
Advanced Configuration tab
You can further customize your elastic runtime environments on the Advanced Configuration tab. The following table describes the advanced configuration properties:
Configuration
Description
Initialization Script Path
Enter the Amazon S3 file path of the initialization script to run on each cluster node when the node is created. Use the format: <bucket name>/<folder name>
The script can reference other init scripts in the same folder or in a subfolder.
The script must be a bash script.
Cloud Ecosystem Tags
Define tags to describe the cloud ecosystem.
These are hyperscalar ecosystem tags that you can use to track the AWS compute and storage used by the elastic runtime environment infrastructure.
At least one tag is required, but the value can be empty.
Runtime Properties
Configure properties to customize the cluster and the jobs that run on the cluster.
At least one tag is required, but the value can be empty.
Service configuration
Use the Service Configuration tab to modify the default values of the service properties or apply a custom configuration to an elastic runtime environment.
Note: Don't change any of the service properties unless you are an advanced technical user or you have been directed by Informatica Global Customer Support. Incorrect settings can affect the operation of your system. You can use the reset icon to reset all values to their initial system defaults.
Service Configuration
The list displays all the properties for the services in use in your elastic runtime environment.
Click the edit icon to change the value of any property or flag a property as sensitive. Click the save icon to save the changes.
Note: Your entries aren't validated, so check your values carefully before saving.
If Informatica Global Customer Support directs you to, you can add new service properties on the Custom Configuration tab. Add a new row for each property.
Deploy an elastic runtime environment
Complete the following tasks to deploy an elastic runtime environment. Once the environment is deployed, you can use it in tasks, mappings, and connections.
Step 1. Clean up cluster (if required)
Perform the following steps only if you're trying to install the elastic runtime environment after a failure in the installation process. The cleanup process ensure that the environment is reset and ready for a fresh installation.
1Open a command prompt on the machine where you want to install the elastic runtime environment.
Locate and open config.txt from the unzipped installer files. Add your elastic runtime environment ID, user name, and password to the appropriate places in the file:
# Distributed Configuration for Cluster Installer # ================================================= # Customize the following variables to match your environment. # # IDS_HOST # The host address or URL for the IDS service. export IDS_HOST="dm-us.informaticacloud.com" # USER # Informatica Intelligent Cloud Services user name for the organization that you want to log in to. export USER="<user name>" # PASS # Informatica Intelligent Cloud Services password. export PASS="<password>" # runtimeEnvironmentId # A unique identifier for your runtime environment. export runtimeEnvironmentId="<environment ID>" # PROXY_USER PROXY_HOST PROXY_PORT # Specify these values if your organization uses HTTP proxy for outbound communication. # You will be prompted to enter Proxy password by the cluster installation script if PROXY_USER is specified. export PROXY_USER= export PROXY_HOST= export PROXY_PORT= # # majorVersion # Major version number for your release. Update as needed. export majorVersion=202507
# Following variables are provided so that you can customize cluster creation as per your organization policies. # # KEY_PAIR_NAME and KUBE_CONFIG_SECRET_NAME # These values identify the key pair and its secret name used to access your cluster. # Name of the Key Pair that is used to login to the nodes in the cluster KEY_PAIR_NAME="idmc-elastic-rte-key-pair" KUBE_CONFIG_SECRET_NAME="idmc-elastic-rte-kube-config" # # ORG_ADMIN_CREDS_SECRET_NAME # The name of the secret that stores organization administrator credentials. ORG_ADMIN_CREDS_SECRET_NAME="idmc-elastic-rte-org-creds" # # SECURITY_GROUP_NAME # The security group name defined for access within your environment. SECURITY_GROUP_NAME="idmc-elastic-rte-security-group" # # NODE_NAME_PREFIX # Prefix for naming the nodes in your cluster. NODE_NAME_PREFIX="idmc-elastic-rte" # # AGENT_APP_LAUNCH_TEMPLATE_NAME and AGENT_APP_ASG_NAME # Launch template and auto scaling group names for the agent application. AGENT_APP_LAUNCH_TEMPLATE_NAME="idmc-elastic-rte-agent-app-launch-tmpl" AGENT_APP_ASG_NAME="idmc-elastic-rte-agent-app-asg" # # JOB_NODE_LAUNCH_TEMPLATE_NAME and JOB_NODE_ASG_NAME # Launch template and auto scaling group names for job nodes. JOB_NODE_LAUNCH_TEMPLATE_NAME="idmc-elastic-rte-job-node-launch-tmpl" JOB_NODE_ASG_NAME="idmc-elastic-rte-jon-node-asg" # # CONTROL_PLANE_ELB_NAME # The load balancer name for the control plane in high-availability setups. # Used only when High Availability (HA) mode is enabled. CONTROL_PLANE_ELB_NAME="idmc-elastic-rte-control-plane-elb" # # efsNameTag # Tag for EFS (Elastic File System) shared storage to added upon creation export efsNameTag="idmc-elastic-rte-efs-name" # # IS_RUNNING_ON_MASTER # Set to false if this script is not executed on the master node; otherwise, leave as true. IS_RUNNING_ON_MASTER=true # # VPC_NAME # Provide the VPC name if the script is not running directly on the master node. VPC_NAME="" # # resourceCreationLogFile # Log file name where created resources will be recorded. export resourceCreationLogFile="resource_creation_log.txt"
Step 6. Run the cluster creation script
Run the following script to create the cluster:
nohup ./create_cluster_nodes_ha.sh &
You can monitor the installation process with the following command:
tail -f nohup.out
Step 7. Confirm that the Data Integration Server is running

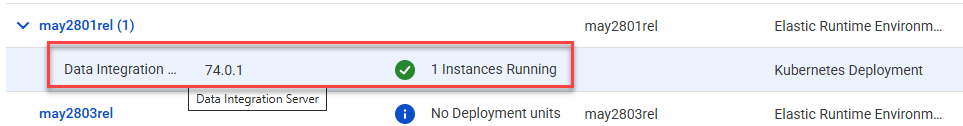

Return to the Runtime Environments page and expand your elastic runtime environment. You should see "Data Integration Server" and "X Instances Running," as shown in the following image:
It might take a few minutes for the Data Integration Server to start up the instances.
