Prerequisites

To connect to a specific ODBC-compliant endpoint, you need to perform certain prerequisite tasks to install the database or data warehouse-specific ODBC driver and ODBC client on the Secure Agent machine to connect to your database or data warehouse.

Additionally, when you use Kerberos authentication to connect to DB2 or SAP Sybase ASE, you need to complete Kerberos authentication prerequisites.

Configure the ODBC driver

To use an ODBC connection, you'll need to set up a system Data Source Name (DSN) for the database or data warehouse-specific ODBC driver, and then install the ODBC driver and ODBC client on the Secure Agent machine.

An ODBC client can access any database and data warehouse for which you install an ODBC driver. Ensure that the ODBC driver you install complies with the ODBC-compliant endpoint to which you want to connect.

An ODBC connection uses only the system DSN. You can't use the user DSN when you configure an ODBC driver. When you set up the system DSN, you need to specify the data source name and connection string.

This section provides instructions to configure the ODBC driver on Windows and Linux machines that host the Secure Agent. You can use these instructions to set up your endpoint-specific ODBC driver. In certain cases, you might need to set environment variables after the driver configuration. You can refer to the examples to help you set up your driver.

Configure the ODBC driver on Linux

Before you establish an ODBC connection to connect to an ODBC-compliant database or data warehouse on Linux, configure the ODBC driver.

1Download the ODBC drivers from the database or data warehouse-specific website.

Note: To get the DB2 ODBC 64-bit driver and SAP IQ ODBC 64-bit driver, contact Informatica Global Customer Support.

2Install the ODBC drivers on the Secure Agent machine.

3Add entries for the data sources in the odbc.ini file.

Check out Sample odbc.ini files for ODBC connection types to know more about the odbc.ini file samples that you can use for different connection types.

4From the command line, run the following command to export the odbc.ini file:

Export ODBCINI=/<odbc.ini file path>/odbc.ini

5Additionally, set environment variables for certain ODBC drivers on the Secure Agent machine.

For example, set environment variables for the following ODBC drivers:

ODBC drivers	Environment variables
Microsoft Azure SQL Data Warehouse ODBC driver	Set the following environment variables: - setenv ODBCINI "/data/home/adputf_9/cloud_td/ODBCINI/odbc.ini" - setenv LD_LIBRARY_PATH "/opt/microsoft/msodbcsql/lib64/libmsodbcsql-11.0.so.2270.0"
Netezza ODBC driver	Set the following environment variables: - setenv ODBCINI "/data/home/qamercury/cloud_td/ODBCINI/odbc.ini" - setenv ODBCINST /data/home/qamercury/cloud_td/ODBCINI/odbcinst.ini - setenv LD_LIBRARY_PATH ".:/export/qa_adp/thirdparty/netezza/linux.64/lib64:$LD_LIBRARY_PATH"
Teradata ODBC driver	Set the following environment variables: - setenv ODBCINI "/data/home/adputf_9/cloud_td/ODBCINI/odbc.ini" - setenv LD_LIBRARY_PATH "/opt/teradata/client/<Version>/lib64"

6Restart the Secure Agent.

Sample odbc.ini files for ODBC connection types

You can use the odbc.ini file for configuring data sources when you create an ODBC connection.

This section provides sample entries for certain ODBC connection types in the odbc.ini file. You can refer to these samples to specify connection entries for your specific endpoint.

Microsoft Azure SQL Data Warehouse ODBC connection
Netezza ODBC connection
Teradata ODBC connection

Configure the ODBC driver on Windows

Before you establish an ODBC connection to connect to an ODBC-compliant database or data warehouse on Windows, configure the ODBC driver.

1Download the ODBC drivers from the database or data warehouse-specific website.

Note: To get the DB2 ODBC 64-bit driver and SAP IQ ODBC 64-bit driver, contact Informatica Global Customer Support.

2Install the ODBC drivers on the Secure Agent machine.

3Open the folder in which ODBC data source file is installed.

4Run the odbcad32.exe file.

The ODBC Data Source Administrator dialog box appears.

5Click System DSN.

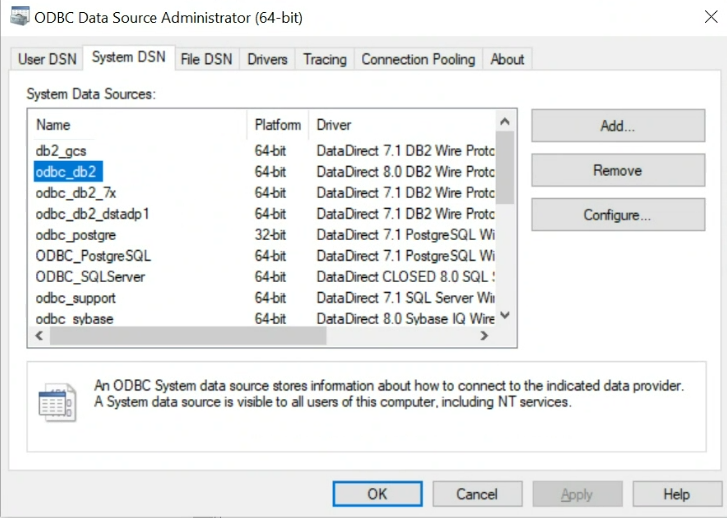

The image shows the system data sources on the ODBC Data Source Administrator (64-bit) dialog box.

Note: An ODBC connection uses only system DSNs. You can't use user DSNs when you configure an ODBC driver.

6Select the system data source that you want to use, and click Add.

The Create New Data Source dialog box appears.

7Select an ODBC driver for which you want to set up a data source.

8Click Finish.

A dialog box appears for setting up the selected driver.

9Specify the required connection properties for the driver.

10Click OK to save the changes for the configured ODBC driver.

If you configure the DB2 ODBC driver, click Test Connect to test the connection that you configured, and then specify the credentials of the DB2 database in the Logon to DB2 Wire Protocol dialog box. Click OK to save the changes.

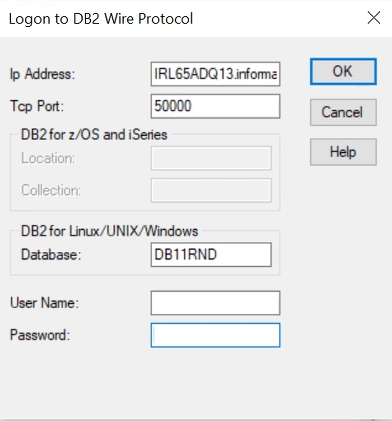

The image shows to specify the credentials of your DB2 database.

Prepare for Kerberos authentication

Configure Kerberos authentication

Before you use Kerberos authentication to connect to DB2 or SAP Sybase ASE on Linux or Windows, the organization administrator needs to perform the prerequisite tasks.

1To configure the krb5.conf file, perform the following tasks:

aCreate a krb5.conf file on the Secure Agent machine.
bAdd the details of the Key Distribution Center (KDC) and admin server to the krb5.conf file in the following format:

[libdefaults]
default_realm = <Realm name>
forwardable = true
ticket_lifetime = 24h

[realms]
<REALM NAME> = {
kdc = <Location where KDC is installed>
admin_server = <Location where KDC is installed>
}
[domain_realm]
<domain name or host name> = <Domain name or host name of Kerberos>
<domain name or host name> = <Domain name or host name of Kerberos>

2Set the following environment variables on the Secure Agent machine.

For more information about the required environment variables, see Set environment variables.

3Restart the Secure Agent.
4To generate the credential cache file on the Secure Agent machine and use Kerberos authentication to connect to the selected ODBC subtype, perform the following tasks:

aOn the Secure Agent machine, run the following command and specify the user name and realm name of the selected ODBC subtype:

Kinit <user name>@<realm_name>

bWhen prompted, enter the password for the Kerberos principal user.

Set environment variables

To use Kerberos authentication to connect to DB2 or SAP Sybase ASE, you need to set the required environment variables on the Secure Agent machine.

•setenv KRB5CCNAME <Absolute path and file name of the credentials cache file>
•setenv KRB5_CONFIG <Absolute path of the Kerberos configuration file>\krb5.conf

After you set the environmental variables, you need to restart the Secure Agent.

Alternatively, you can add the environment variables when you create an ODBC connection with the subtype as DB2 or SAP Sybase ASE.

Enter the KRB5_CONFIG and KRB5CCNAME details in the Kerberos Connection Properties field in the ODBC connection.

For example, add the properties in the following format:

KRB5_CONFIG=<Absolute path of the Kerberos configuration file>\krb5.conf;KRB5CCNAME=<Absolute path of the credential cache file>/<File name>

Note: Ensure that you separate each key-value pair with a semicolon.
