Troubleshooting

Troubleshoot errors in elastic runtime environments using the corrective actions.
If you need more help with elastic runtime environments, you can contact Informatica Global Customer Support. You might need to provide your organization ID for assistance. You can find your organization ID through the Organization menu.

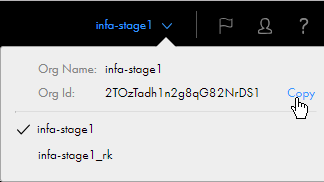

The following image shows the Organization menu:
The Organization menu displays the organization name and ID. The Copy option appears when you hover the cursor to the right of the Org ID field.
You can also find your organization ID on the Organization page in Administrator.

Troubleshooting general validation errors

The following table lists general validation error messages for elastic runtime environments:
Message
Corrective action
Variable <<NAME>> is not defined
Ensure that the missing variable is defined with the appropriate value in the config.txt file.
<<COUNT>> variable(s) are not defined in config.txt
Ensure that all variables are defined in the config.txt file.
<<COUNT>> variable(s) are not defined in config.txt when High Availability (HA) mode is on
Ensure that all variables related to high availability are defined in the config.txt file.
Failed to get <<VPC_NAME>>
Ensure that VPC_NAME is valid. Check that the AWS roles and privileges for the cluster installer are assigned to the master node.
Failed to get idmc ami id
Check the AWS roles and privileges assigned to the master node.
Failed to get Subnet <<NAME>>
Check the AWS roles and privileges assigned to the master node.
Failed to get root volume name for AMI ID <<AMI_ID>>
Check the AWS roles and privileges assigned to the master node.
Failed to check if instance <<NAME>> exists
Ensure that the AWS Describe Instances permission is present in instance profile that's attached to the master node.
Failed to authenticate, please check config.txt
Ensure that the user name and password in the config.txt file are correct.
Failed to get Subnet of instance <<INSTANCE_ID>>
Ensure that the AWS Describe Instances permission is present in the instance profile that's attached to the master node.
VPC_NAME should be defined when script is not running on master node
Ensure that VPC_NAME and the value of IS_RUNNING_ON_MASTER are in the config.txt file.
MASTER_INSTANCE_TYPE is not defined
Ensure that the master instance type is defined on the Environment Configuration tab in Administrator.
Instance type <<TYPE>> is invalid in region <<NAME>>
Ensure that the region and instance type are defined on the Environment Configuration tab in Administrator.
Invalid value <<VALUE>> for HA_MODE, Should be true or false
When using the REST API, ensure that the heEnabled field contains a boolean value.
Only one subnet should be specified in non-HA mode, given <<values>>
When high availability isn't enabled, only one subnet can be specified. Check the subnet names on the Environment Configuration tab in Administrator.
Exactly 3 subnets should be provided in HA mode, given <<values>>
When high availability is enabled, three subnets must be specified. Check the subnet names on the Environment Configuration tab in Administrator.
Subnet <<NAME>> does not exist
Ensure that the subnet names on the Environment Configuration tab in Administrator are correct.
Given Subnets map to only <<COUNT>> Availability Zone(s)
Ensure that the subnet names Environment Configuration tab in Administrator aren't the same as the master node's subnet.

Troubleshooting proxy errors

The following table lists proxy errors for elastic runtime environments:
Message
Corrective action
Proxy connection failed
Ensure that you can reach www.informatica.com using the specified proxy connection details.
Proxy port [<<PORT>>] is invalid
Check the proxy port number. The port values must be a numeric value between 1 and 65535, inclusive.
<<file>> does not exist
Ensure that <<FILE>> is one of the following values:
  • - agent_token.dat
  • - agent_nwid.dat
  • - agent_key.dat
  • - infaagent.ini
  • - agentcore.cfg
  • - proxy.ini
Proxy configuration is not valid.
Check and correct the errors that appeared before this message.
Failed to generate agent token
The ProxyUtil binary failed to generate the proxy.ini file. Contact Informatica Global Customer Support.
Proxy password not specified
The proxy password wasn't entered.
Don't run the installer in background mode when proxy mode is enabled, because the installer needs to read the password from the keyboard.
Failed to setup proxy config
Check and correct the errors that appeared before this message.
Failed to set proxy for containerd
Check and correct the errors that appeared before this message.
Failed to create proxy ini secret
Check and correct the errors that appeared before this message.
Failed to setup containerd: proxy password not specified.
Check and correct the errors that appeared before this message.

Troubleshooting AWS errors

The following table lists AWS Secrets Manager errors for elastic runtime environments:
Message
Corrective action
Failed to create secret <<NAME>> in AWS secrets manager
Ensure that the AWS Create secret privilege is assigned to the instance profile that's attached to the master node.
Failed to update secret <<NAME>> in AWS secrets manager
Ensure that the AWS Update secret privilege is assigned to the instance profile that's attached to the master node.
Failed to read value of secret <<NAME>>
Ensure that the AWS Read secret privilege is assigned to the instance profile that's attached to the master node.
The following table lists AWS security group errors for elastic runtime environments:
Message
Corrective action
Failed to create security group $SECURITY_GROUP_NAME ingress rule for port <<PORT_NUMBER>
Ensure that AWS Create Security Group Rule privilege is assigned to the instance profile that's attached to the master node.
Failed to get Security Group <<NAME>>
Ensure that AWS Read Security Group Rule privilege is assigned to the instance profile that's attached to the master node.
Failed to create security group <NAME>>
Ensure that AWS Create Security Group privilege is assigned to the instance profile that's attached to the master node.
Failed to create sec group rule for ssh
Check and correct the errors that appeared before this message.
Failed to create sec group rule for DNS
Check and correct the errors that appeared before this message.
Failed to create sec group rule for BGP
Check and correct the errors that appeared before this message.
Failed to create sec group rule for Kube API Service
Check and correct the errors that appeared before this message.
Failed to create sec group rule for NFS/EFS
Check and correct the errors that appeared before this message.
Failed to create sec group rule for etcd
Check and correct the errors that appeared before this message.
Failed to create sec group rule for VXLAN
Check and correct the errors that appeared before this message.
Failed to create sec group rule for Kubelet API
Check and correct the errors that appeared before this message.
Failed to create sec group rule for Kube Proxy
Check and correct the errors that appeared before this message.
Failed to create sec group rule for Kube-scheduler
Check and correct the errors that appeared before this message.
Failed to create sec group rule for Kube-controller-manager
Check and correct the errors that appeared before this message.
Failed to create sec group rule for Node Port
Check and correct the errors that appeared before this message.

Troubleshooting errors for master and worker nodes

The following table lists error messages related to the creation of master nodes for elastic runtime environments:
Message
Corrective action
<<NAME>> node creation failed
Ensure that the AWS RunInstances permission is present in the instance profile that's attached to the master node.
Failed to create instance <<NAME>>
Ensure that the AWS RunInstances permission is present in the instance profile that's attached to the master node.
Nodes were not ready after <<COUNT>> retries
Check the status of the master node and the startup log from the AWS Management Console.
Failed to get instance id for <<NAME>>
Ensure that the AWS DescribeInstances permission is present in the instance profile that's attached to the master node.
The following table lists error messages related to Elastic Load Balancing for master nodes when high availability is enabled:
Message
Corrective action
Failed to create load balancer <<NAME>>
Ensure that the AWS Create ELB permission is present in the instance profile that's attached to the master node.
Failed to deregister all instances from elb
Ensure that the AWS Deregister Instances permission is present in the instance profile that's attached to the master node.
Failed to get elb dns
Ensure that the AWS Describe ELB permission is present in the instance profile that's attached to the master node.
Failed to add master instance <<INSTANCE_ID>> to <ELB_NAME>>
Ensure that the AWS Register Instances permission is present in the instance profile that's attached to the master node.
Failed to add first master instance <<INSTANCE_ID>> <<IP>> to <ELB_NAME>>
Ensure that the AWS Register Instances permission is present in the instance profile that's attached to the master node.
Failed to register instance <<INSTANCE_ID>> to load balancer <<NAME>>
Ensure that the AWS Register Instances permission is present in the instance profile that's attached to the master node.
Failed to get instance health of load balancer <<NAME>>
Ensure that the AWS Describe ELB permission is present in the instance profile that's attached to the master node.
Failed to get load balancer <<NAME>> details
Ensure that the AWS Describe ELB permission is present in the instance profile that's attached to the master node.
The following table lists error messages related to the launch template and Auto Scaling group for worker nodes in elastic runtime environments:
Message
Corrective action
Failed to create launch template <<NAME>>
Ensure that the AWS Create Launch Template permission is present in the instance profile that's attached to the master node.
Failed to create ASG <<NAME>>
Ensure that the AWS Create Auto Scaling Group permission is present in the instance profile that's attached to the master node.
Failed to create ASG after <<COUNT>> attempts
Ensure that the AWS Create Auto Scaling Group permission is present in the instance profile that's attached to the master node.

Troubleshooting ALMS deployment errors

The following table lists ALMS deployment errors for elastic runtime environments:
Message
Corrective action
Failed to generate ALMS manifest
Check and correct the errors that appeared before this message.
Failed to get services for RTE <<ID>>, Response Code: <<CODE>>
Ensure that Secure Agent services are enabled in the elastic runtime environment.
ALMS is not configured for this RTE <<ID>>
Ensure that the Secure Agent services are enabled in the elastic runtime environment and the images are available in the repository.
ALMS image version not found for this RTE <<ID>>
Check and correct the errors that appeared before this message.
Could not get version of ALMS to run
Check and correct the errors that appeared before this message.
Failed to create manifest for cluster autoscaler
Check and correct the errors that appeared before this message.

Troubleshooting EFS errors

The following table lists EFS errors for elastic runtime environments:
Message
Corrective action
Failed to generate manifests for EFS
Ensure that the correct AWS EFS permissions are present in the instance profile that's attached to the master node.
Failed to create EFS mount targets
Ensure that the correct AWS EFS permissions are present in the instance profile that's attached to the master node.
Invalid EFS Id $systemDiskId specified in the cluster config
Ensure that the correct AWS EFS permissions are present in the instance profile that's attached to the master node.
Failed to create mount target for EFS <<ID>> in subnet <<ID>>, secutiry group = <<ID>>
Ensure that the correct AWS EFS permissions are present in the instance profile that's attached to the master node.

Troubleshooting miscellaneous errors

The following table lists general error messages related to elastic runtime environments:
Message
Corrective action
Internal error: Usage: <<NAME>> masterIP isRunningOnMaster command
Service error. Contact Informatica Global Customer Support.
Internal error: Usage: <NAME>> masterIP isRunningOnMaster fileName
Service error. Contact Informatica Global Customer Support.
Usage: $0 ELB_NAME instance_id_1 ... instance_id_n
Service error. Contact Informatica Global Customer Support.
Usage: $0 instance_id AMI_NAME
Service error. Contact Informatica Global Customer Support.
Usage $0 \"asg_info_1 ... asg_info_n\" node_idle_timeout [toleration]
Service error. Contact Informatica Global Customer Support.
Usage: $0 ELB_NAME
Service error. Contact Informatica Global Customer Support.
Usage: $0 proxyHost proxyPort proxyUser
Service error. Contact Informatica Global Customer Support.
Usage: $0 ec2_instance_type_1 ... ec2_instance_type_n
Service error. Contact Informatica Global Customer Support.
Usage: $0 PROXY_HOST PROXY_PORT PROXY_USER
Service error. Contact Informatica Global Customer Support.
Failed to copy file <<NAME>> to <<IP>>
Check and correct the errors that appeared before this message.
Giving up after <<COUNT>> retries
Check and correct the errors that appeared before this message.
Failed to get worker info
Check and correct the errors that appeared before this message.
Failed to deploy cluster components
Check and correct the errors that appeared before this message.
Failed to process tags
Check the tags in the advanced properties on the Environment Configuration tab in Administrator.
Failed to update cluster config dateDeployed field for RTE <<ID>>, Response Code: <<CODE>>
Check and correct the errors that appeared before this message.
Failed to update clusterConfig dateDeployed field.
Check and correct the errors that appeared before this message.
Failed to get cluster id for RTE <<ID>>, Response Code: <<CODE>>
Check and correct the errors that appeared before this message.
Failed to get cluster config for RTE <<ID>>, Response Code: <<CODE>>
Check and correct the errors that appeared before this message.
Failed to get cluster config
Check and correct the errors that appeared before this message.
Failed to get CspRegionInstanceInfo for Region: <<NAME>>, Response Code: <<NAME>>
Check and correct the errors that appeared before this message.
Failed to get token from repository <<NAME>>
Ensure that you haven't exceeded your quota of 20 repository tokens.
Failed to execute `kubectl get namespace | grep -q idmc-system` E0715 22:33:37.559917 memcache.go:265] "Unhandled Error" err="couldn't get current server API group list: Get \"http://localhost:8080/api?timeout=32s\": dial tcp [::1]:8080: connect: connection refused" The connection to the server localhost:8080 was refused - did you specify the right host or port?
An error occurred during installation. You can ignore this message.
Instance count mismatch after deleting an EC2 instance
After an EC2 instance is deleted from AWS, it might continue to have the status Up and Running in Informatica Intelligent Cloud Services, so there's a discrepancy in the reported instance count.
