Configure the attributes that you want to represent code values in other assets. For example, you might want the Code and Name attributes to represent code values in the Country Codes code lists. You might have a code value with the Name value as Canada and the Code value as 124. When the code value appears in other assets, the code value appears as 124 Canada.

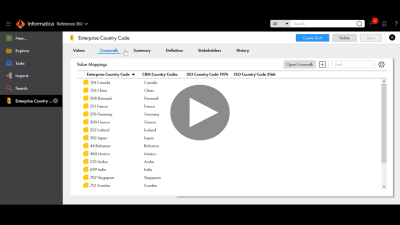

The following video shows you how to configure display attributes:
1Open a code list.
2Click Definition.
The Definition page appears.
3To configure one attribute as the display attribute, from the Display Attributes list, select an attribute.
4To configure multiple attributes as the display attributes, perform the following actions:
aFrom the Display Attributes list, select Advanced....
The Advanced Display Attributes dialog box appears.
bFrom the Column list, select an attribute.
cTo add an additional attribute, click Add, and select an attribute.
dRepeat Step C for additional attributes.
eClick OK.
Tip: Add the attributes in the order you want the attribute values to appear. For example, you might want the value in the Code attribute to appear before the Name attribute. Select the Code attribute first and then add the Name attribute.
The display attributes appear in the Display Attributes list.
