Developer Guide > Data Engineering Integration and Streaming Mapping and Workflows > Developing Data Engineering Integration Workflows for Subscriptions


Developing Data Engineering Integration Workflows for Subscriptions

To develop a Data Engineering Integration workflow for a subscription, perform the following steps in the Developer tool:
    1. Develop Data Engineering Integration Mapping for subscriptions.
    2. Create a workflow for subscription and include the subscription mapping or mappings that belong to the same topic. You can include multiple mappings in a single pipeline that is characterized by a Start_Event and End_Event.
    3. Validate the mapping and workflow and deploy the workflow to an application in the Data Integration Service.
    4. Create Data Engineering Integration workflows for subscription in the Data Integration Hub console.

Step 1: Develop Data Engineering Integration Mappings for Subscriptions

Develop Data Engineering Integration mappings for subscriptions as described in Developing Data Engineering Integration Mappings for Subscriptions.

Step 2. Create a Subscription Workflow

Create a subscription workflow as follows:
    1. Create a workflow for subscription. You can include multiple mappings in a single pipeline included within a Start_Event and an End_Event.
    BDM subscription workflow
    2. Create the following workflow parameters in the Properties > Parameters menu:
    BDM subscription properties
    3. Assign workflow parameters to corresponding mapping parameters for every mapping included within the workflow. Use the following workflow menu: Workflow > Mapping > Properties > Input > Mapping Parameters.
    4. Save the workflow.

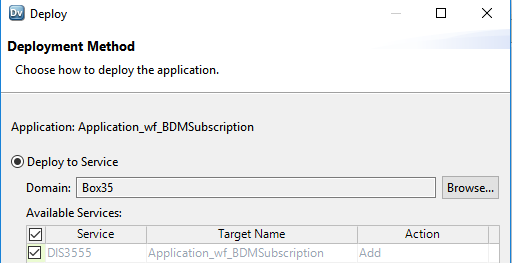

Step 3. Deploy the Subscription Workflow

Select subscription workflows and deploy them to the Data Integration Service of the Data Integration Hub console. The Data Integration Hub administrator can now access the workflow to create Data Engineering Integration workflows for subscriptions.
