Throw

BPMN Implementation: Error throw event
For a list of faults described in the BPEL specification, see BPEL Standard Faults elsewhere in this help.
Required Properties
Optional Properties
Fault Name
Name. See Selecting Activity Labels

Fault Variable

Join Condition. See Creating a Join Condition for an Incoming Link

Suppress Join Failure. See Process Element and Properties

Comment. See Adding Comments to a Process

Documentation. See Adding Documentation to a Process

Setting Visual Properties and Using Your Own Library of Images

Execution State. See Viewing the Execution State of an Activity or Link

Extension Attributes and Extension Elements. See Declaring Extension Elements and Attributes.
To build a throw activity:
  1. 1. Drag an Error throw event to the Process Editor canvas.
  2. 2. In Properties view, specify a fault to throw.

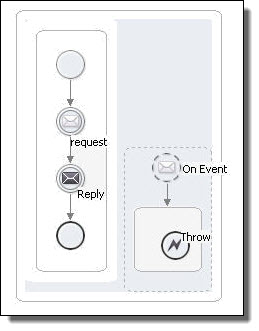

The following illustration shows an example of using a throw activity.
XML Syntax
<throw faultName="QName"
faultVariable="BPELVariableName"? standard-attributes
standard-elements
</throw>
Example:
<throw xmlns:FLT="http://example.com/faults"
faultName="FLT:OutofStock"/>
