Map code values in one code list to code values in another code list to indicate that the code values represent the same business term.

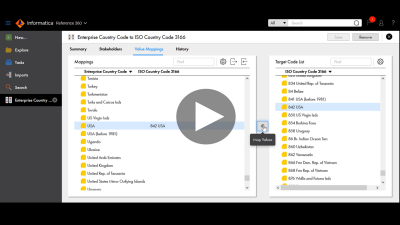

The following video shows you how to create value mappings:
1In the Explore panel, select a crosswalk and click Open.
2On the Value Mappings tab of the crosswalk, click Lock.
A draft version of the crosswalk is created, and the crosswalk is locked for other users. Also, the target code list appears after you lock the crosswalk.
3 To create a value mapping, perform one of the following actions:
- In the Mappings panel, select a source value that you want to map. In the Target Code List panel, select the equivalent code value, and click Map Values.
- Drag a code value from the Target Code List panel onto the equivalent code value in the Mappings panel.
Note: When you search for value mappings of a crosswalk, the search results display only the matching code values of the source code list.
5To import value mappings, click Import Mappings.
For more information about importing value mappings, see Import process.
6To remove a value mapping, perform the following actions:
aHover over a value mapping, and click the Remove icon.
The Remove Value Mappings dialog box displays the list of available mappings for the specific value mapping.
bSelect the mappings and click Remove.
To select all the mappings, click Mappings.
7To send your changes for approval, perform the following actions:
aClick Submit after you finish proposing changes to the crosswalk.
The Send for Approval window appears.
bSet the priority, due date, and optionally add a comment.
cIn the Compare Versions section, review your proposed changes.
dClick Send for Approval.
You receive an email notification confirming that you successfully sent the approval request. Users assigned the Business Steward stakeholder role for the asset or the Reference 360 Business Steward role are notified of the task. The task appears in the Workflow Inbox tab.
Note: Users assigned the Reference 360 Business Steward role and the Business Steward stakeholder role for a crosswalk can send their proposed changes for approval or directly publish their changes without approval.
8To cancel the approval request, perform the following actions:
aClick Cancel Approval Request.
A confirmation dialog box appears.
bClick OK.
The crosswalk is reset to draft state. To unlock the crosswalk, you must discard the draft.
